Product Details:
Payment & Shipping Terms:
|
| Application: | Highway|railway | Color: | White |
|---|---|---|---|
| Feature: | High Strength|Light Weight | Function: | Drainage |
| Material: | HIPS|polystyrene | Product Name: | Geotextile Drainage Fabric |
| High Light: | filter fabric drainage,non woven filter fabric |
||
Quick detail:
Material:PP or HIPS
Vertical dry state:≥15KN/10cm
According to customer requirement
Description:

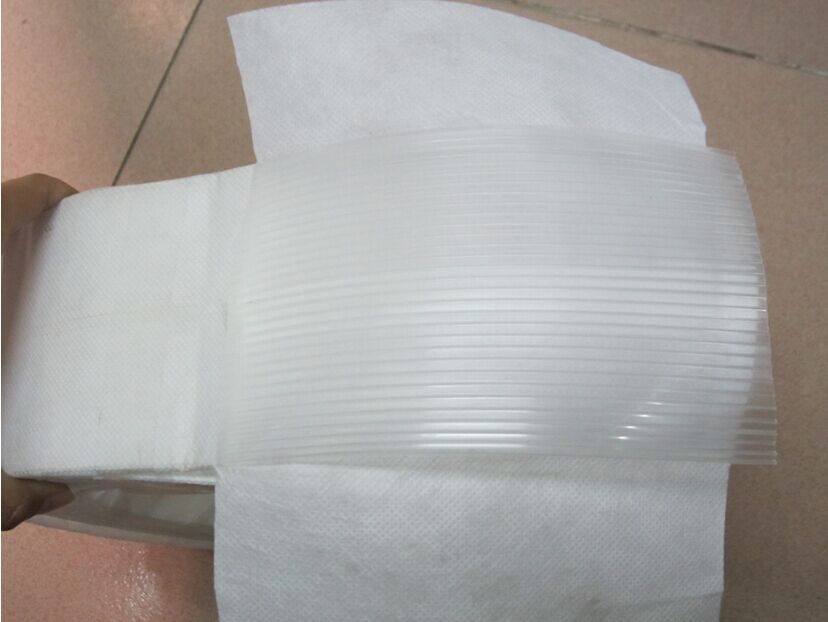

Drainage plate is made of polystyrene (HIPS) or polyethylene plastic. to prevent the soil particles through, it cement filter geotextile on top surface, so as to avoid blocking and make the hole channel smooth. Traditional drainage uses brick tile, more pebbles and gravel as a filter layer, which drains away water to
designated spots. Drainage plate will save time, energy, investment, and also can reduce the load of the building.
Features:
1. Vertical and horizontal reinforcing ribs are provided to significantly improve the strength of wall support of water-pervious pipe.
2. A frame with vertical and horizontal reinforcing ribs is provided outside the wall support. Polyester Filament yarns are wound in this frame and form a complete unit so that the water pervious layer has better strength and is not easily deformed or crumpled.
3. The water-previous pipe with reinforcing ribs may effectively block bulky soil lumps or gravels from breaking though the coating to ensure both filtration and water permeation. It can also effectively prevent damage to the thrust from working equipment. Meanwhile, it has excellent filreation and water permeation to ensure more reliable water discharge.
Specifications:
|
Drainage Products Technical Specification |
||||||||
|
Item |
Unit |
Product series |
Remarks |
|||||
|
A |
B |
C |
D |
Condition |
||||
|
Vertical water throughput |
cm³/s |
≥15 |
≥25 |
≥40 |
≥50 |
Side pressure 350KPa |
|
|
|
Filter film permeability |
cm/s |
≥5*10^-4 |
Test piece soaked in water for 24h |
|||||
|
Filter film equivalent aperture |
μm |
<75 |
As O98 |
|||||
|
Composite tensile strength |
mm |
≥1.0 |
≥1.3 |
≥1.5 |
≥1.7 |
Elongation 10% |
||
|
Filter film tensile strength |
Vertical dry state |
KN/10cm |
≥15 |
≥25 |
≥30 |
≥30 |
Elongation 10% |
|
|
Horizontal dry state |
N/cm |
≥10 |
≥20 |
≥25 |
≥25 |
Test piece soaked in water for 24h |
||
|
Packaging |
Details |
|||||||
|
Roll Dimensions(W×L) |
According to customer requirements |
|||||||
|
Square Meters Per Roll |
|
|||||||
|
Estimated Roll Weight |
|
|||||||
Applications:
Water discharge on road bed and shoulder of highway and railway
Water discharge on coal stack yard, landfill and fertilizer stack yard
Water discharge for retaining wall and bridge pier
Water discharge for tailings dam in mine and fly ash in power plant
Water discharge on sports ground, square and lawn
Water discharge at landslide and slope
Water discharge system for low-lying, wet land and saline land
Underground irrigation and drainage system for agriculture oe horticulture
Water discharge for tunnel, underground works and roof garden
Water discharge and suction system
Water discharge for site leveling project and water&soil preservation project
