Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD

Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD
Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD

Large Image :  Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE 、UL、CSA,SONCAP,SASO
Model Number: All kinds
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month
Detailed Product Description
Screw Design: Single Screw Application: Water And Gas Supply Pipe
Plastic Processed: PP PE Power: 50kw - 150kw
Capacity: 150-1500KG/h Type: Plastic Production Line, WPC Extrusion Line
Automatic Grade: Full Automatic
High Light:

Plastic Extruder Machine

,

Plastic Production Line



Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD



Quick detail:



1. type:PP/PE water and gas supply pipe extruder,PP/PE drainage pipe machine

2. process type:electrical pipe extrusion machinery

3. Pipe material : PP PE

4. Application: water and gas supply pipe

5. Diameter : 16-1600mm

6.Product capacity : 150-1500KG/h

7.usage:construction and municipal drain outdoor gas pipe, agricultural irrigation, threading pipe, wire,

cable and optical cable, drainage pipe, etc





Description:



PE sewage pipe extrusion line



1.PE sewage pipe extrusion machine use to produce many pipe,like PPR cold water and hot water pipe,

single and double pipe, PE/PP/PE-RT/PEX pipe, silicon core pipe etc. Using single extruder to produce

concolorous pipe or many extruder to co-extruding many layer of different color.



2.Main features: Adopt high-efficiency, special screw to ensure the stable quality of high extrusion output.

Lattice backet die achieve low melting pressure and plasticizing temperature to get large processing range.

Tractor caterpillar is durable, strong abrasion resistance, stable high speed of traction power. Dust free

cutting machine with low noise and high precision make the pipe cutting edge smooth and flat.


3.Technical Parameter:

Model

PipeDiameter (mm)

Extruder Model

ScrewSpeed (r/min)

Production Speed (m/min)

Output (kg/h)

Power (kw)

SSG-32PR

Ø16-32

SSJ-45

40-100

4-10

100

50

SSG-63PR

Ø16-63

SSJ-65

40-100

4-10

150

65

SSG-63PR

Ø16-63

SSJ-65

40-100

4-10

150

100

SSG-160PR

Ø75-160

SSJ-90

30-90

2-8

200

150



4.Process flow:Raw material + additive → mixing → vacuum feeder → hopper dryer →

single screw extruder → marking line extruder → mould and calibrator → vacuum calibration tank

→ cooling tank → haul off machine → printer → cutting machine → pipe storage shelve

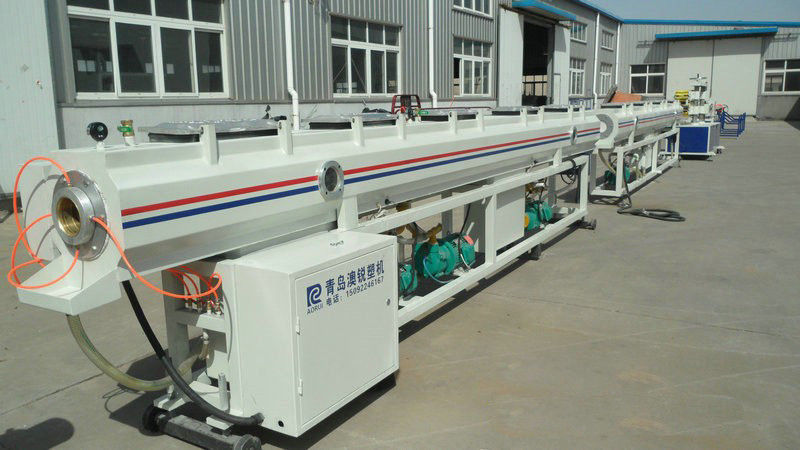

Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD 0





Applications:



1.field;construction and municipal drain outdoor gas pipe, agricultural irrigation, threading pipe, wire, cable

and optical cable, drainage pipe, etc



2.usage:transportation between cities and in water supply projects of urban areas.



3.function:transportation, borehole high-pressure water supply, crude oil and natural gas

transportation,water supply and drainage of daily life, power and chemical plants, and urban construction



Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD 1Plastic Extrusion Line For PP PE Drainage Pipe , 16mm - 1600mm OD 2





Specifications:



Model

SJ65/30-33

SJ75/30-33

Pipe dia.

Φ20-63

Φ90-200

Screws dia.& ribbon width

Φ65,33:1;Φ65,30:1

Φ75,33;1Φ75,30:1

Output

120kg/h

220kg/h

Linear velocity(max)

10m/min

4m/min

Installation capability

58

85

Productivity for year(meter)

350

150





Competitive Advantage:



PE water pipe production line


1.high extruding velocity


2.effective plasticization


3.three co-extruding die


4.low cost
