AS2074 L / 2B Steel Cr-Mo Alloy Steel Castings For Composite Rubber

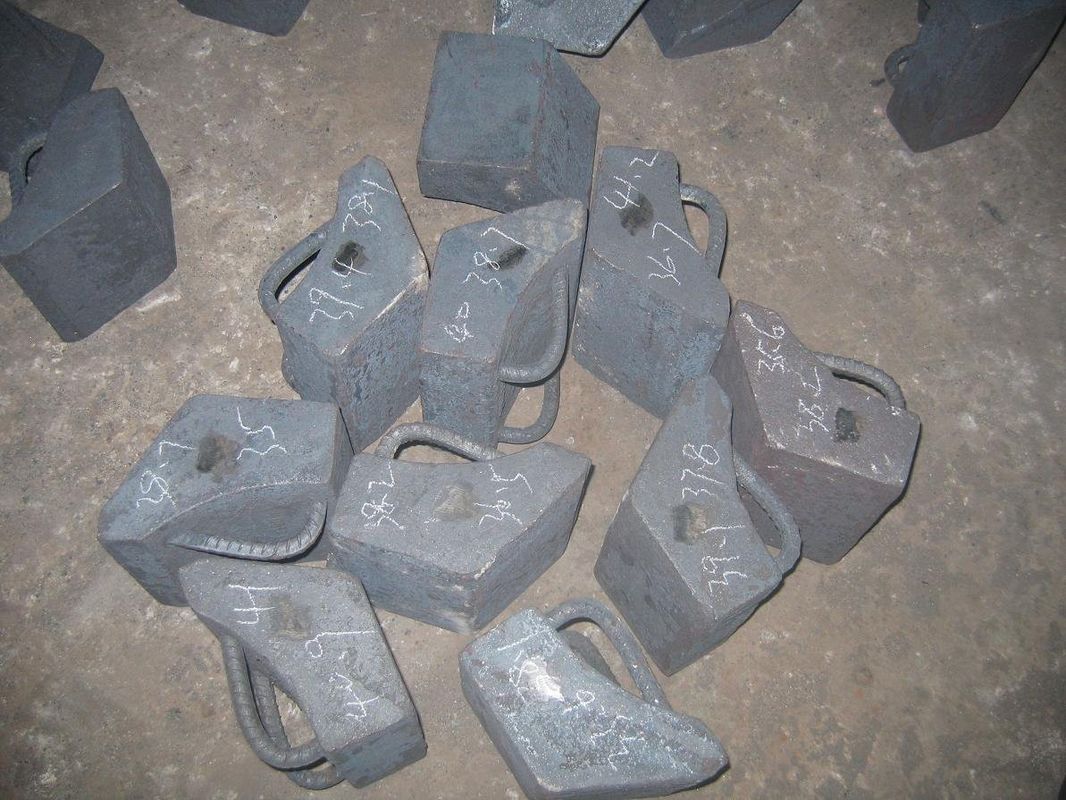

Large Image : AS2074 L / 2B Steel Cr-Mo Alloy Steel Castings For Composite Rubber

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Chen's Liner
Certification:	ISO9001
Model Number:	DF076

Payment & Shipping Terms:

Minimum Order Quantity:	5 Ton/Tons
Price:	Discuss in email
Packaging Details:	Packed in strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Delivery Time:	It depends on the quantity to be ordered.
Payment Terms:	L/C,T/T
Supply Ability:	4500 Ton/Tons per Year
Port:	Shanghai

Contact Now

Detailed Product Description

Application:	SAG Mills, AG Mills	Material:	Steel
Dimensions:	As Per Drawings	Material Grade:	AS2074 L/2B
Hardness:	HRC33~42 (HB310~390)	Microstructure:	Predominantly Pearlite
Dimensional Checking & Gauging:	100% Check	Surface Finish:	Visual Inspection After Shot Blasting
High Light:	alloy steel forging , cast iron steel

AS2074 L / 2B Steel Cr-Mo Alloy Steel Castings For Composite Rubber

Quick Details

Cr-Mo Alloy Steel Castings used in Composite Rubber Feature:

1.Cr-Mo Alloy Steel Castings have popular application in Australian mines;
2. Steel casting can be safely used in AG mills.

Cr-Mo Alloy Steel Castings used in Composite Rubber Description:

a. The hardness for Pearlitic CrMo Cast Steel Cap: HRc33~42 (HB310~390); Steel caps shall be sample hardness tested at approximately ten percent(10%) random selection;

b. Microstructure: Predominantly pearlite;

c. Chemical Composition: Every furnace heat shall be analysed by Spectrometer; A conforming sample shall be obtained from each furnace heat prior to pouring the mould(s);

d. Dimensional Checking & Gauging: 100% check; be compliance to drawing dimensions within specified tolerances;

1. By visual inspection, e.g. where a cross joint or other dimensional or shape defect is evident, dimensions shall be verified to drawing;

2. By gauges manufactured to check specific features or dimensions of individual casting;

e. Casting Soundness: Level 2 of AS2574 or equivalent standard, 10% of order selected at random to be free of shrinkage with UT; Assessment of casting soundness and internal integrity shall be by ultrasonic testing; Sectioning by cutting may be only be used as a macro view test, as the cutting process may remove the area of unsoundness;

f. Surface Finish: Visual inspection after shot blasting; To achieve an acceptable level of surface texture, freedom from defects and extraneous material or rust that have the potential to reduce wear-life or the effective bonding of a rubber product;

1. All wear surface to be free from surface defects that may affect fitness for purpose, and any from of grease or oil;

2. All wear surface to be free from any raised features or markings above the wear face;

3. All bonding surface to be free of defects that affect fitness for purpose and to be free of rust, scale and any form of grease or oil.

g. Reporting: Providing process, inspection & test result data by which

specification compliance can be traced.

1. To provide process, inspection and test result data by which specification compliance can be traced;

2. To provide a means by which steel cap performance, may be correlated to manufacturing data with respect to chemical composition, heat treatment, and hardness.

h. Cr-Mo Alloy Steel Castings used in AG mill & SAG mill.

China alloy steel castings supplier provides crusher spare parts services to worldwide alloy steel casting customer. Hope you find our special alloy steel casting process and stainless steel castings product description helpful.

In the recent 20 years, our liners have been widely used in large, medium and small ball mills in Chinese power generation, mining, cement, Chemical engineering and metallurgical industries and super fine pulverizing equipments. It is the only recommended liner product in the latest standard of the electric-power industry in China.

Technical Parameters

Wuxi Orient Anti-wear Engineering Co., Ltd.

Chemical Composition & Mechanical Property of Wear-resistant Castings

Item	Cr-Mo Alloy Steel I	Cr-Mo Alloy Steel II	Cr-Mo Alloy Steel III	High Cr white iron	High Cr Alloy Steel	High Manganese Steel	Ni-Hard cast iron
C	0.30~0.50	0.65~0.90	0.40~0.90	2.40~3.20	1.1~2.2	0.90~1.30	2.40~3.60
Si	0.50~1.20	≤0.75	0.70~1.20	0.60~1.20	0.60~1.20	≤0.08	≤0.80
Mn	0.40~1.20	0.50~1.20	0.60~1.00	0.50~1.00	0.50~1.00	11.00~18.00	≤2.0
Cr	1.70~2.50	1.50~2.50	4.00~7.00	12.00~30.00	11.00~30.00	1.50~2.50	1.5~10
S	≤0.04	≤0.06	≤0.04	≤0.04	≤0.04	≤0.04	≤0.15
P	≤0.04	≤0.06	≤0.06	≤0.06	≤0.06	≤0.06	≤0.15
Mo	≤0.5	≤0.5	≤0.5	0.10~3.0	0.10~3.0	≤1.0	≤0.10
Cu	0.10~0.60	≤0.25	0.20~0.40	0.10~1.00	0.10~1.00	-	-
Ni	≤0.50	≤0.30	0~0.30	0~0.30	0~0.30	-	3.3~10
Re	≤0.02	≤0.02	≤0.02	-	-	-	-
Equivalent Specifications	DL/T 681-1999 GB/T26651-2011	AS 2074 L2B Mod	DL/T 681-1999	GB/T 8263-1999 AS 2027 Cr27 AS 2027 CrMo 15/3 AS 2027 CrMo 20/2/1 ASTM A532 Class III type A 25% Cr ASTM A532Class II type B 15% Cr-Mo BS 4844 3E DIN1695 NFA32401.		GB/T 5680-1998 DL/T 681-1999 JIS G 5153-1999 ASTM A 128 DIN GX120Mn12 AFNOR:Z120Mn12	GB/T 8263-1999 AS 2027/Ni-Cr1-550 AS 2027/Ni-Cr2-500 AS 2027/Ni-Cr4-500 AS 2027/Ni-Cr4-600 AS 2027/Ni-Cr4-630 ASTM A 532 1-A,B,C,D ASTM A 532 2-A,B,C,D,E ASTM A 532 3-A
Material Type	Martensite Steel	Martensite or Pearlitic Cr Mo Steel	Martensite Steel	Martensite matrix		Austenitic Mn Steel	-
Hardness	HRc≥48	HB470 & HB 321~370	HRc≥50	HRc≥56		HB≤300	HRc≥56
Impact Value	Ak≥40J	-	Ak≥10J	Ak≥4J		Ak≥80J	-

Our foundry has complete melting, heat treatment and test equipments, such as mid-frequency induction electrical furnaces, quenching and tempering furnaces, blast shot, spectrometer, Rockwell and Brinell Hardness tester, impactor, UT tester and metallographic microscope. We achieved the certificate of quality management system ISO 9001:2008. We have been exporting castings to oversea markets, such as Brazil, Australia and South Africa.
