Ultrasonic Thickness Gauge ,Metal Tube Thickness Meter UM6500

Name: Ultrasonic Thickness Gauge ,Metal Tube Thickness Meter UM6500
Brand: TOKY
SKU: UM6500
Price: 1 USD
Availability: InStock
Rating: 4.5 (128 reviews)

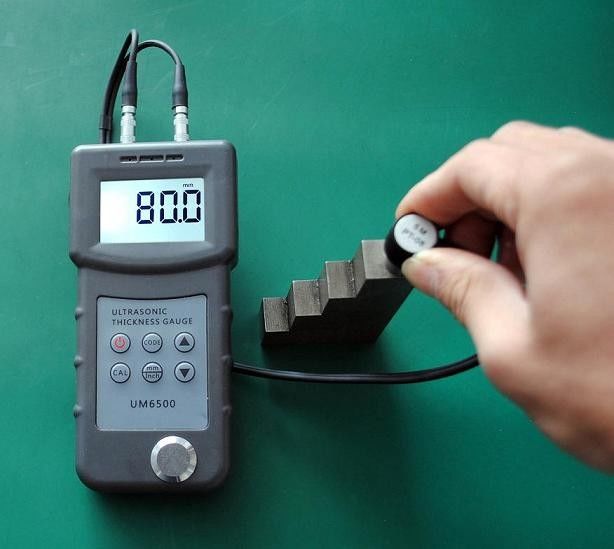

Large Image : Ultrasonic Thickness Gauge ,Metal Tube Thickness Meter UM6500

Product Details:

Place of Origin:	China
Brand Name:	TOKY
Certification:	CE,ROHS
Model Number:	UM6500

Contact Now

Detailed Product Description

High Light:

Ultrasonic thickness meter

thickness gauge

Ultrasonic Thickness Gauge ,Metal Tube Thickness Meter UM6500

Application Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron

High resolution measurement
Probe automatic zero calibration for system error correction
Capture the value of the minimum thickness.
Status indicator of the coupling and low battery.
Auto sleep and auto power off function to conserve battery life.
Humanized shape design,compact and portable,Can be used in harsh environment.

Specifications
1)Display：4.5 digits LCD with EL backlight.
2)Operating principle: ULTROSONIC
3)Measuring range (metric/imperial): 1.0-245mm,0.05-8inch (in Steel).
4)Resolution： 0.1mm;
5)Accuracy： ±（0.5%H+0.1）mm, depends on materials and conditions
6)Units: Metric/Imperial unit selectable.
7)Power supply:4x1.5 AAA size (UM-4) battery 1
8)Battery indicator: low battery indicator
9)Operating conditions:0-+45℃(32℉-104℉),≤90%RH
10)Dimensions: Main Unit 140mm×60mm×22mm
11)Gloss Weight :1KG
12)Standard Delivery: Main Unit,8mm Probe, Coupling Oil, User Manual ,Carrying Case
