Water Turbine For Sale / Hydro Power Turbine Generator 200KW For Hydro Power Plant

China Water Turbine For Sale  / Hydro Power Turbine Generator 200KW For Hydro Power Plant supplier
Water Turbine For Sale  / Hydro Power Turbine Generator 200KW For Hydro Power Plant supplier Water Turbine For Sale  / Hydro Power Turbine Generator 200KW For Hydro Power Plant supplier Water Turbine For Sale  / Hydro Power Turbine Generator 200KW For Hydro Power Plant supplier Water Turbine For Sale  / Hydro Power Turbine Generator 200KW For Hydro Power Plant supplier

Large Image :  Water Turbine For Sale / Hydro Power Turbine Generator 200KW For Hydro Power Plant

Product Details:

Place of Origin: China
Brand Name: Xin Yi Hydro
Certification: CE
Model Number: HL260B

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Export packing ( wooden case)
Delivery Time: 50 days to 4 month
Payment Terms: L/C, T/T
Supply Ability: 100Unit per year
Contact Now
Detailed Product Description
Runner Material: Stainless Steel Turbine Type: Horizontal Francis Turbine
Water Flow: 1.3M3/S Water Head: 25 Meter
Output Power: 320KW To 200MW Voltage: 380V Or 400V 6300V

Hydro Power Turbine Generator 320KW For Hydro Power Plant / Water turbine 320KW



Detailed product description

Purpose of Turbine: Providing electricity for Hydro power plant Capacity:320KW to 50MW
Life Time of Turbine: Over 30 Years or more Type: Francis Water Turbine


Applications:

  1. Water head : 25m to 85M , water flow: 0.5M3/s to 8M3/S
  2. Output power: from 50KW to 8MW for each turbine
  3. Frequency : 50HZ or 60HZ, Voltage: 400V or 480V or 6300V
  4. Speed (R/MIN)from: 500R,600R,750R,1000R/MIN
  5. Runner material: stainless steel, runner size from 0.35 to 4 in diameter
  6. Xin Yi Hydro turbine providing all type of high quality hydro turbines manufacturer in China.

Definition of Francis Hydro Turbine, History of Francis Hydro turbine
Francis water turbine was invented by a British-American engineer. His name was James Bicheno Francis, he was born in May18, 1815, and passed away in Sep 18,1892, James B Francis was born in South Leigh, near Witney, Oxfordshire in England, United Kingdom, he began his engineer in the age of 14 as his father working in railway South Wales. At the age of 18, he moved to the United States. Today in order to memorize James Bicheno Francis, Mixed flow water turbine was called Francis hydro turbine.


Francis Hydro Turbine is designed the water heads from 20 m up to 80m, water flow from 0.5M3/S to 8m3/S . Francis water turbine can be made in horizontal or vertical shaft type and only with direct connection to the generator. Turbine has its own shaft support, or the runner is directly on the shaft of generator.
Runner is produced using technology of exact casting and digitally created model using CNC technology.
Guide vanes are fully regulated and they also perform the function of operational closure. The system is solved by gravity or pressure accumulator. Guide vanes are made of the same material as the runner and are machine using CNC technology.
According to the data of intake penstock turbine is equipped with a flywheel and valve cap.
Turbines will be controlled by the control panel and the mechanical part is operated by a hydraulic unit.

The Father of Francis water Turbine,MR James Bicheno Francis Picture as bellow

Water Turbine For Sale  / Hydro Power Turbine Generator 200KW For Hydro Power Plant


Specification of Fracis Water Turbine

Type

Horizontal or Vertical Type

Water Head

13m to 35m

Design Water flow

1.2m3/S to 2M3/S

Installed Capacity

From 125KW to 500KW for one single turbine

Generator Type

Synchronous Alternator with brush or brushless

Voltage

400V or 480v

Other Equipments

Governor, valve, control panel with Excitation



Some Parameters as bellow: Model Number: HL260B-WJ-50



Francis Water Turbine Data

Generator Data

Head

Flow M3/S

Speed
R/MIN

 (KW)
Out Power

Model

KW
Power

Speed
R/MIN

13.5

1.24

600

141

SFW125-10/740

125

600

16

1.35

600

182

SFW160-10/740

160

600

18.5

1.45

600

224

SFW200-10/740

200

600

21.5

1.56

750

284

SFW250-8/850

250

750

25

1.68

750

354

SFW320-8/850

320

750

29.5

1.83

750

445

SFW400-8/990

400

750

34

1.95

1000

562

SFW500-6/990

500

1000


Competitive Advantage from Xin Yi Hydro Turbine


Xin Yi Hydro Turbine is a Comprehensive and professional solution in Micro and small hydro power generation with a tradition over 50 years in China. Our factory covers an area of 15000 square meters with over 200 staff. we produced water turbine from 20KW to 10MW for one single turbine, At present Xin Yi Hydro offers complete range of turbines : Kaplan, Pelton, Francis, Turgo and Tubular turbine covering all possible sites from low heads starting somewhere around 1,5 - 2 m upto high heads reaching some 600 m. The flow variation is very wide too, 10 L/s up to 100.000 L/s. We are specialist for Small Hydro Power Plants so our maximum output limit is 10.000 KW. Our turbine is certified by ISO9001 and CE , First-class quality product is appraised by our users. we actively advocate: market-oriented, technology-leading, innovation as a means to actively explore the domestic and oversea market.

Our company is a newly established local company specializing in business related Medium, Small and Minimum Hydroelectricity power projects.

Based on technical team members with abundant professional knowledge, rich practices & more than 20 years of experience in this specific industry, our company is focusing on the special package solution design & supply of water turbine-generator sets and auxiliaries according to the special working conditions of certain power stations. With plenty of industrial resources, our company has formed strategic alliances with several professional hydropower survey & design institutes and turbine-generator and auxiliary equipment manufacturers, aiming at customized proposals for customers' projects worldwide on "W2W" basis, providing package solutions, E&M equipment supply, installation & commissioning services, etc.

Our main business is project design, complete E&M equipment supply, related services for new hydropower projects, technical improvement and equipment updating for existing hydropower stations. The projects in our scope are ranged with water head from 3m to 1200m and turbine runner diameter from 0.5m to 5m with the single capacity from 100KW to 100000KW. Our main products are Tubular, Kaplan, Francis and Pelton turbine-generator sets and the related auxiliaries, E&M equipment and spare parts.

Our main markets are Southeast Asia, South America, Central America and Europe. Meanwhile, our company is providing technical improvement and facility updating services for the existing projects of domestic customers. Being supported by experienced international sales team and technical expert team, our company is presenting reasonable technical solutions, reliable equipment and professional pre-sales and after-sales services for customers worldwide, ensuring the safety of customers' investments and measurable incomes.

Following the principle of "integrity & credibility, quality & competitiveness, on-time & on-target services", our company is concentrating on building ourselves as a top-class package solution designer and supplier, taking the profits & benefits of customers in the first place and striving forward a brilliant future together with all global partners for long-term mutually profitable cooperation.

We offer the service is

  1. Hydropower plant site selection.
  2. Water turbine design and installation capacity calculation.
  3. Feasibility study and environment study.
  4. Installation and commissioning and training power plant staff.
  5. Inquiry response : Your inquiries will replied in 24 hours
  6. Delivery time: 45 days to 60days for the small turbine from 20KW to 500kw.
    We warmly welcome you visit us and send email to us to inquire our small hydro turbine.

Xin Yi Hydro Turbine factory was founded in 1958, is an enterprise of research and development, production and sales of micro and Small hydropower turbine in China .Xin Yi Hydro Turbine design and manufacture pico and micro and small hydro  turbine generator, these micro-hydro turbines is  a favorite for oversea clients. Till now Xin Yi hydro turbine built many micro and small hydropower plants in oversea, now these models from 20KW.30KW.50KW.75kw.100KW.125kw.160kw.and 200KW, it is our main popular water turbines for the domestic and oversea markets. We now manufacture micro and small hydro turbine from 20KW to 10MW for one single generator. We can design and install hydro power plants for our clients. we have been producing these small water turbine for over 50 years. Now we become the good solution of small hydro power turbines around the world.


First-class quality product is appraised by our users. we actively advocate: market-oriented, technology-leading, innovation as a means to actively explore the domestic and oversea market.
Now our hydro power turbines are sold to over 35 countries they are including  Lao.PDR, Albania, and Chile and South Africa and all over the world. We warmly welcome your inquiries regarding our micro and small hydropower turbine and generators, and look forward to getting more improvements by the cooperation with you in the future. Our improvement will bring more efficiency and benefits for you. We warmly welcome to visit our Foshan factory and our head office.



Case Study:

Xin Yi Hydro Turbine built 200KW Francis Water Turbine in North Korea.

General Parameter of this project.

Net head: 25

Flow: Q=1.2M3/S

Turbine Type: Horizontal Francis Water Turbine Generator.

Output power: 1x200KW

Voltage: 380V, 50HZ.

Purpose: Prividing electricity for off-grid remote area.

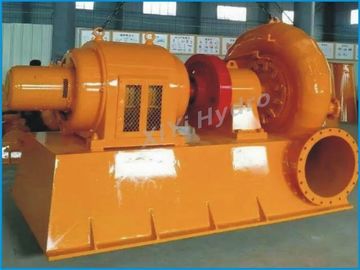

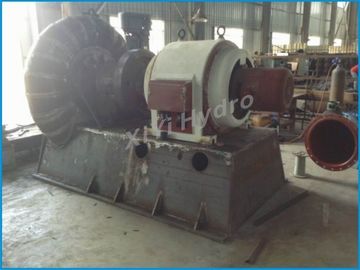

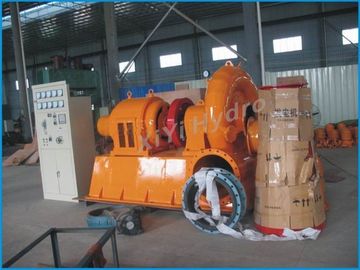

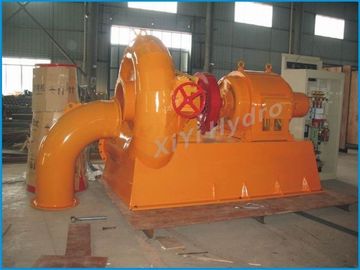

See the picture of this type of turbine from different angle

Water Turbine For Sale  / Hydro Power Turbine Generator 200KW For Hydro Power Plant



Water Turbine For Sale  / Hydro Power Turbine Generator 200KW For Hydro Power Plant



Water Turbine For Sale  / Hydro Power Turbine Generator 200KW For Hydro Power Plant
