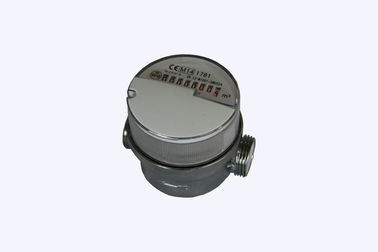

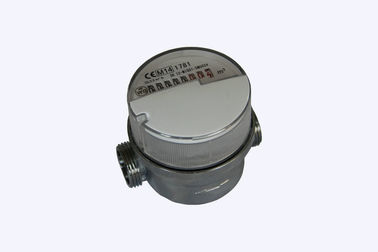

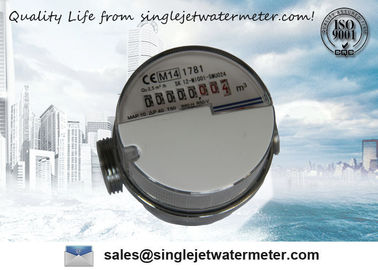

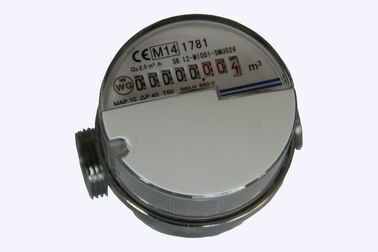

Small Vane Wheel Vertical Water Meter for Resident Unit , Clear Reading and Anti theft

China Small Vane Wheel Vertical Water Meter for Resident Unit , Clear Reading and Anti theft supplier
Small Vane Wheel Vertical Water Meter for Resident Unit , Clear Reading and Anti theft supplier Small Vane Wheel Vertical Water Meter for Resident Unit , Clear Reading and Anti theft supplier Small Vane Wheel Vertical Water Meter for Resident Unit , Clear Reading and Anti theft supplier Small Vane Wheel Vertical Water Meter for Resident Unit , Clear Reading and Anti theft supplier

Large Image :  Small Vane Wheel Vertical Water Meter for Resident Unit , Clear Reading and Anti theft

Product Details:

Place of Origin: P.R.China
Brand Name: Ningbo Wasser
Certification: CE,ISO9001,MID
Model Number: LXC-15D-80-ECO
Application: garden|home
color: Customized
features: Vertical
product name: Water Flow Meter
Type: Vane Wheel
Water Temperature: Cold water
Contact Now
Detailed Product Description



Small Vane Wheel Vertical Water Meter for Resident Unit , Clear Reading and Anti-theft


Quick Detail:


  • Economical models;
  • Single jet, dry dial;
  • Magnetic drive, magnet resistance;
  • Optimum accuracy and performance at all times;
  • Accurate measurement, easy and long term clear reading etc;


Description:

LXC-15D-80-ECO Single Jet Dry Type Vane Wheel Water Meter is economical model used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline.


Feature:


* Dry-dial ,magnetic drive,resistance to exterior magnet interference
* Single-jet
* Selected high quality materials for steady & reliable characteristic
* Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
* Measuring accuracy conform to ISO 4064 Standard and MID certification
* Inner or outer adjusting device for option
* Small in size and light in weight

Applications:

Measuring the volume of cold potable water passing through the pipeline.
Water Temperature: Cold water meter ≤ 40℃, Hot water meter ≤90℃
Water Pressure:≤ 1.6Mpa(16bar)

Specifications:


Main Technical Data

Type

LXC-15D-80-ECO

Size(mm)

15

Q4(m3/h)

3.125

Q3(m3/h)

2.5

Q2(m3/h)

0.05

Q1(m3/h)

0.03125

Min Reading(m3)

0.0001

Max Reading(m3)

99999



Dimensions and Weight

Type

LXC-15D-80-ECO

Size(mm)

15

Length(mm)

80

Width(mm)

73

Height(mm)

72

Connecting Thread(D)

G3/4-B

Weight(kg)

0.48


Competitive Advantage:

1. dry type, single jet, cold water meter
2. brass body
3. ISO standard, MID certification
4. Remote reading
Our company mainly manufactures all kinds of water meters, such as Single-Jet Dry Type Vane Wheel Cold (Hot) Water Meter, Single-Jet Wet Type Vane Wheel Water Meter, Multi-Jet Dry Type, Liquid Sealed Vane Wheel Water Meter, Positive Displacement Water Meter Class C, Removable Element Woltman Dry-Dial Water Meter, Removable Element Woltman Liquid-Sealed Water Meter, Multi-Jet Dry Type Vane Wheel Water Meter for Irrigation, AXIALHELIX Woltman Water Meter of Self-Cleaning for Irrigation, etc.
