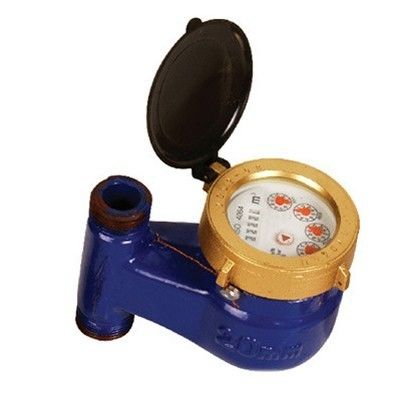

MDB1 Dry type Vertical Water Meter (Brass)

MDB1 Dry type Vertical Water Meter (Brass)
MDB1 Dry type Vertical Water Meter (Brass)

Large Image :  MDB1 Dry type Vertical Water Meter (Brass)

Product Details:
Place of Origin: China
Brand Name: PLATAMETER
Certification: ISO 4064
Model Number: MDB1
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 200000 pcs/month
Detailed Product Description

APPLICATION:
Measuring the volume of cold potable water passing
through the pipeline.


FEATURES:
l Dry-dial, magnetic drive, Resistance to exterior
magnet interference
l Multi-jet, Brass Body
l Optional for theM-bus or pulse output.
l Selected high quality materials for steady&reliable
characteristic
l Vacuum sealed register ensures the dial kept free
from fog and keep the reading clear in a long term
service
l Horizontal Installations; Easy For Interchange &
maintenance
l Standard conformed to ISO 4064-1. Accuracy up to Class B.



MAXIMUM PERMISSIBLE ERROR:
In the lower zone from Qmin inclusive up to but
excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including
Qmax is ±2%



WORKING CONDITION:
Water temperature: lower than 50 for cold water,
lower than 90 for hot water
Working pressure: lower than 16 MPa
