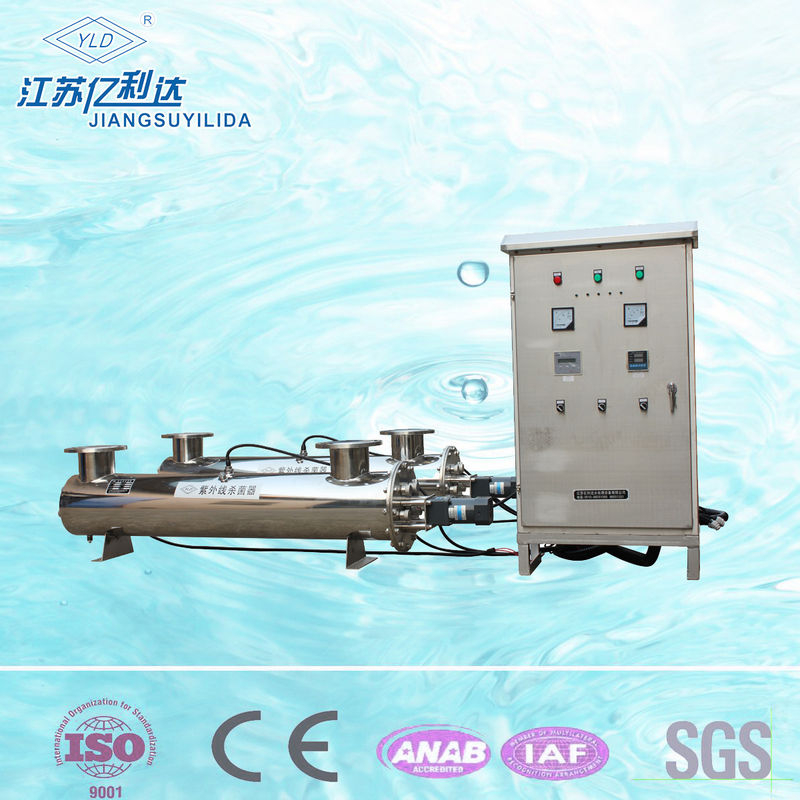

Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel

Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel
Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel

Large Image :  Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel

Product Details:
Place of Origin: China
Brand Name: YLD
Certification: SGS,CE, ISO
Model Number: YLC-7000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: can be negotiable
Packaging Details: with plywood case for outer packing
Delivery Time: 10 working days after payment received in advance
Payment Terms: T/T or L/C or western Union
Supply Ability: 3,000 units per month
Detailed Product Description
Product Name: UV Sterilizer Flow Rate: 300TPH
Material: Stainless Steel 304/306 Power: 2100W
Service Life Of The UV: More Than 9000 Hours Power Supply: 380V/220V/110V 50Hz/60Hz
Connection Mode: Thread Working Pressure: 0.6Mpa
Inlet And Outlet Diameter: DN250mm/10 Inch Sterilizing Rate: 99.9%
High Light:

ultraviolet water sterilizer

,

water uv sterilizer

Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel



There are several advantages of using UV water filtration system rather than a chemical disinfection

solution (such as chlorination):

1. No known toxic or significant nontoxic byproducts

2. No danger of overdosing

3. Does not require storage of hazardous material

4. Adds no smell to the final water product

5. Requires very little contact time



Specifications:



Model

                  YLC-7000

Flow rate(T/H, m3/h)

                  300T/H

Power(W)

                   2100W

Inlet and outlet diameter

                    DN250MM

Weight

                 400kg

material

stainless steel 304/316

UV lamp tube

Quartz glass

Sterilizing rate

99.9%

What is germicidal ultraviolet?

Ultraviolet sterilization (UV) is a process to eliminate biological contamination, namely parasite fungus and bacteria. Two types are commercially available, both in tube size. Generally the one containing a wet bulb -at which the water passes directly past the UV bulb- is cheaper.

The other type available has a protective quartz tube around the bulb (dry bulb). The latter has the advantage of easier cleaning, since debris and slime will eventually settle on the bulb, or quartz surrounding. Both work on the same principle.

UV sterilization exposes the contaminants with a lethal dose of energy in the form of light. The UV light will alter the DNA of the pathogens, by virtually gluing DNA molecules together. The changed cell structure prevents the organism from reproducing itself (sterilization), therefore eliminating it.





WHY DO THEY WORKS



The high germicidal power of this wave length must be sought in DNA and in the link of its fundamental components (nucleotids). DNA is a macromolecule present in all living organisms in which all information necessary for life and reproduction reside. The alteration, induced by the UV-C irradiation, of some chemical links present among nucleotids is able to change the information contained and conveyed by DNA, these alterations prevent its normal activity and this irreversibly leads to the cellular death.

WHY THEY ARE CONVENIENT
Among the several advantages offered by this kind of technology we mention:

- environmental treatment (without addition of chemicals, without alteration of taste)
- no danger of over-dosing and no alteration of the characteristic of water
- quick action (without any stocking tank) the time is the one of passing through the sterilizer
- compatibility with the other technologies (filtration, softening, etc) for a complete treatment of water
- cheapness and practicalness thanks to the low consumption of electrical energy and to the little required servicing

UV treatment for water purification and drinking water has many advantages. In addition to high water quality (no risk of Legionella/example), UV disinfection system for water treatment is very reliable and easy to use.



Parameters for more models:



Model

Amount of disinfectant

Power

(W)

Incoming and outcoming water pipes (Nominal/ British system)

System pressure resistance (Kg/cm²)

UV light fault Alarm

Dimension of the reactor (cm)

L×W×H

Dimension of the control cabinet

(cm)

Anchor screws

Transport weight(Kg)

YLCn-005

0.3

16

1/2″

6

Has

30×6×11





5

YLCn-008

1

25

1/2″

6

Has

47×6.3×11





10

YLCn-050

2

40

1″

6

Has

100×9×20

Φ8.9×25

(d×L)

69×4×Φ1

25

YLCn-150

6

80

1+1/4″

6

Has

100×11×23

69×4×Φ1

30

YLCn-200

8

120

1+1/2″

6

Has

100×15.9×30

Φ8.9×45

(d×L)

69×7×Φ1

35

YLCn-300

12

160

2″

6

Has

100×15.9×32

69×7×Φ1

40

YLC-050

2

40

DN25/1″

6

Has

100×8.9×30

25×30×12

(W×H×D)

60×4×Φ1

45

YLC-150

6

80

DN32/11/4″

6

Has

100×10.8×30

60×4×Φ1

50

YLC-200

8

120

DN40/11/2″

6

Has

100×15.9×40

60×7×Φ1

60

YLC-300

12

160

DN50/2″

6

Has

100×15.9×40

60×7×Φ1

70

YLC-360

15

200

DN65/21/2″

6

Has

100×15.9×40

60×7×Φ1

120

YLC-500

20

240

DN65/21/2″

6

Has

100×21.9×50

60×11×Φ1.2

130

YLC-600

25

280

DN80/3″

6

Has

100×21.9×50

60×11×Φ1.2

140

YLC-700

30

320

DN100/4″

6

Has

100×21.9×50

60×11×Φ1.2

150

YLC-1000

40

360

DN100/4″

6

Has

100×21.9×50

60×11×Φ1.2

160

YLC-1200

50

400

DN125/5″

6

Has

100×21.9×50

60×11×Φ1.2

180

YLC-1500

60

420

DN150/6″

6

Has

170×27.3×57

120×16×Φ1.4

210

YLC-2000

80

560

DN150/6″

6

Has

170×27.3×57

120×16×Φ1.4

220

YLC-2500

100

700

DN150/6″

6

Has

170×27.3×57

60×128×30

(W×H×D)

120×16×Φ1.4

275

YLC-3000

125

840

DN150/6″

6

Has

170×27.3×57

120×16×Φ1.4

300

YLC-4000

150

1120

DN200/8″

6

Has

173×32.5×65

120×20×Φ1.6

325

YLC-5000

200

1400

DN200/8″

6

Has

173×37.7×72

120×22×Φ1.6

350

YLC-7000

300

2100

DN250/10″

6

Has

175×42.6×80

120×24×Φ2.0

400

YLC-10K

400

2520

DN250/10″

6

Has

176×52.9×95

60×150×40

(W×H×D)

120×22×Φ2.2

475

YLC-15K

600

3080

DN300/12″

6

Has

176×78×110

120×32×Φ2.4

600

YLC-20K

800

3920

DN350/14″

6

Has

Designated

Designated

Designated

Designated

YLC-25K

1000

4760

DN350/14″

6

Has

Designated

Designated

Designated

Designate



















































































Applications:



Drinking Water

  • under sink installs & water vending machines

  • aircraft, boats & recreational vehicles

  • water wells & water cisterns

  • swimming pool & hot tubs

  • farms, ranches & trailer parks

  • schools & hotels

  • aquarium, hatcheries and nurseries

  • ice making

Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel 0

Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel 1

Food Processing

  • brewery & winery

  • soft drinks, fruit drinks and juices

  • bottling facilities

  • dairy processing

  • liquid sugars, sweeteners and edible oils

  • water based lubricants

  • pure wash water

Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel 2

Medical

  • pharmaceutical production

  • laboratories, hospitals and clinics

  • maternity labor and delivery areas

  • pathology labs, kidney dialysis

  • animal husbandry

Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel 3

Industries

  • cosmetics and electronic production

  • pond & lake reclamation

  • laundry water

Medical Equipment Sterilight Ultraviolet Water Sterilizer System , Stainless Steel 4





FAQ:



01. What is the source of raw water to be treated?

-- is it underground water or well water? or river water ,other source?

02. What is the capacity(m3/hour) you required for this sterilizer?

-- most IMPORTANT requirement.

03. What will the treated water be used for?

--for human drinking or industry purpose?

04. What is the power supply in your country?

   220V/60Hz or other?
