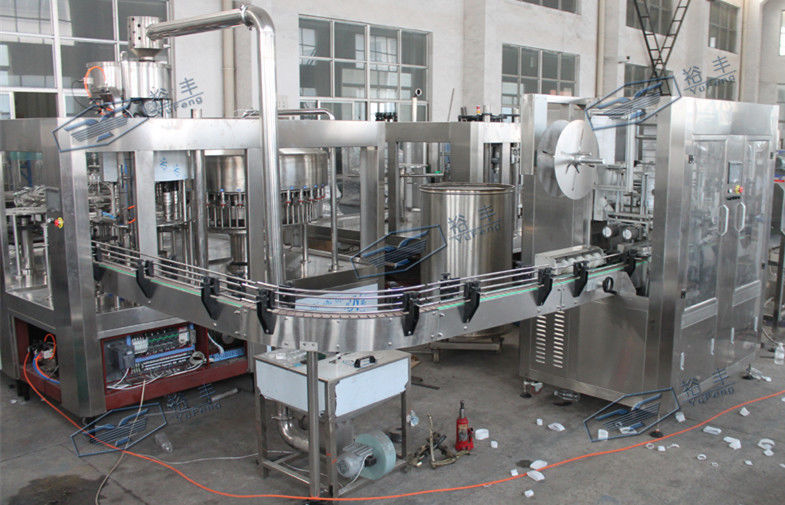

PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine

PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine
PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine

Large Image :  PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine

Product Details:
Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO
Model Number: CGF32-32-10
Control: PLC Control With Touch Screen
Processing: Japan & Germany
Suitable Bottle Size: 0.3-2L PET Bottle
Cap Style: Plastic Screw Cap
Capacity: 12000-15000BPH
Electrical Brand: Mitsubishi, OMRON, SIEMENS
Warranty: 1 Year for Spare Parts
Control: PLC Control With Touch Screen
Processing: Japan & Germany
Suitable Bottle Size: 0.3-2L PET Bottle
Cap Style: Plastic Screw Cap
Capacity: 12000-15000BPH
Electrical Brand: Mitsubishi, OMRON, SIEMENS
Warranty: 1 Year for Spare Parts
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 12000-40000USD
Packaging Details: Wooden Case Package
Delivery Time: 20-30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 Sets Per Year
Detailed Product Description
Processing Type: Filling Water Into Bottles Material: Touch Parts SUS304/SUS316
Machine Structure: Monoblock Machine Filling Type: Normal Pressure Filling
Control: PLC Control With Touch Screen Cap Style: Plastic Screw Cap
Capacity: 12000-15000BPH Electrical Brand: Mitsubishi, OMRON, SIEMENS
High Light:

Water filler machine

,

water bottle filling machine

PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine





Quick Detail:


Machine structure: 3 in 1 filling machine / monoblock

Material: Food stage stainless steel 304/316
Filling type: Normal pressure filling machine

Control: PLC & touch screen control
Capacity: 12000-15000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: Basing on real bottles and caps
After-sales service provided: Engineers available to service machinery overseas.





Description:



1. The plastic bottle water filling machine is mainly used in mineral/pure/non-carbonated/distilled water etc. production line, there are three functions integrated in one machine, they are bottle washing, mineral water filling, bottle capping. The full production processing is automatic, when the empty bottle coming through the machine, then coming out the bottled mineral water.



2. The plastic bottle water filling machine is composed by rotary washer, normal pressure filler, screw type sealer and conveying system.



3. The plastic bottle water filling machine's construction is advanced, the performance is stable. The operation and maintain are easy.



4. The speed of automatic mineral water filling machine can be adjusted infinitively and accords with the standards.



5. The usual production capacity is in 2000-20000bph, 0.2-2L PET bottle is available.





Specifications:



Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Rinsing Head No 8 12 18 24 32
Filling Head No 8 12 18 24 32
Capping Head No 3 6 6 8 10

Rated

Capacity

(500ml)

2000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
Overall Size

1900*1420*

2000mm

2200*1600*

2300mm

2450*1900*

2300mm

2750*1180*

2400mm

4000*2300*

2300mm

Weight 1.5T 2.2T 3.0T 4.0T 8.0T

Power

(KW)

3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
Rated Voltage Customized Customized Customized Customized

Customized





Complete Flow Chart



                                                                                                               Ion Re-birth Device

                                                                                                                                   V

Raw Water Source>Booster Pump>Quartz Sand Filter>Active Carbon Filter>Water Softener>RO Unit>UV Sterilizer>Pure Water Storage Tank<Ozone Machine

                                           V                                                                      (Steam Generator)

                                           V                                                                                       V

Bottle Blowing System> Monoblock Water Filling Machine>Labeling machine>(Shrinking Tunnel)>Code Printer>Shrink Wrapping Machine





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
