Product Details:
Payment & Shipping Terms:
|
| Material: | Pp, Pe, Nylon | Color: | White |
|---|---|---|---|
| Top Ring: | Plastic Ring, Ss Ring, Iron Wire Ring And So On | Size: | According To Your Requires |
| Micron: | 0.5-800 Micron, Nylon Can Be 1000mesh | Snap Ring:: | Steel & Plastic & String |
| High Light: | industrial filter bags,water filtration bag |
||

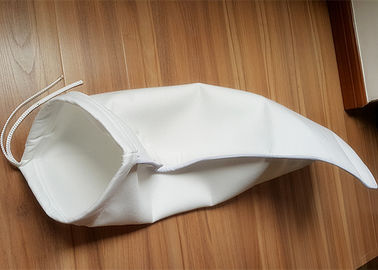

Anti Static Filter Polyester Liquid Filter Bag , ISO 1mm Thickness Water Filter Bag
Quick Detail:
Material : PP or PE,polyester, polypropylene
Micron rating : 0.5um ~800um
Good anti-abrasion
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Description:
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Specifications:
#1-----(7"x16") -----¢180*410mm
#2-----(7" x 32") -----¢180*810mm
#3-----(4"x 8 1/4") -----¢102*210mm
#4-----(4"x 14") -----¢102*356mm
| Material | PE,PP,NMO,PTFE |
| Cuff | PP Lock, Stainless steel |
| Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type | various specifications |
| Airtight method: | Hot Melt, reverse sewing |
| Effective filtration area | various specifications |
| Others | special requirement of diameter and collar extension can be customized |
|
PRODUCT CODE: |
|||
|
Component |
Elongation@50N/5cm |
||
|
Fibre |
100%PET |
Longitudinal(%) |
Transverse(%) |
|
Scrim |
100%PET |
<3% |
<3% |
|
Weight(g/m²) |
500 |
Operating Temperatures |
|
|
Thickness(mm) |
2.0 |
Continuous(°C) |
Surge(°C) |
|
Density(g/cm3) |
0.25 |
130 |
150 |
|
Mean Air Permeability (L/dm².min) |
150-250 |
Max Dry Shrinkage in 90 minutes:(150°C)(%) |
<1% |
|
Breaking Strength |
Surface Treatment |
Heat Setting, Singed, Represent add stainless steel fibers |
|
|
Longitudinal(N) |
Transverse(N) |
||
|
>1000 |
>1200 |
||
Notices:
1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
| Filter bag model |
Filter bag area(m2) |
Filter bag Volume(Liter) |
Filter bag Diameter (Inch/cm ) |
Filter bag Length (Inch/cm ) |
| No.1 | 0.19 | 7.9 | 7/17.8 | 16/40.65 |
| No.2 | 0.41 | 17.3 | 7/17.8 | 32/81.3 |
| No.3 | 0.05 | 1.4 | 4/10.2 | 8.25/20.9 |
| No.4 | 0.09 | 2.5 | 4/10.2 | 14/35.5 |
| No.5 | 0.22 | 8.1 | 6/152 | 22/55.9 |
| Fiber | Abrasion resistance | Weakly acid | Strongly acid | Weakly alkali | Strongly alkaly | Solvent | Temperature (°C) |
| PE | Very good | Very good | Good | Good | Poor | Good | 130-150 |
| Nylon | Excellent | General | Poor | Excellent | Excellent | Good | 135-149 |
| PP | very good | Excellent | Excellent | Excellent | Excellent | General |
90-110 |
Applications:
1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.
