multi jet water meter

multi jet water meter
multi jet water meter

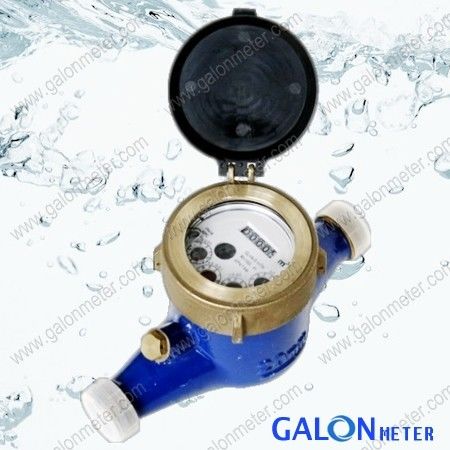

Large Image :  multi jet water meter

Product Details:
Place of Origin: CHINA
Brand Name: GALONMETER
Detailed Product Description
High Light:

water meter

,

multi jet water meter

,

woltman

Galon Meter –SJ is impeller (turbine), high sensitivity single jet B/C Class water meter with dry type register for residential application with sizes from Dn15 to Dn40. According to the requirements of Directive 2004/22/EC on measuring instruments, measuring the volume of cold potable water passing through the pipeline, and comply with ISO4064 standard
Feature:

--Single-jet, dry-dial, free rotating register, small in size and light in weight;

--Magnetic drive, Resistance to exterior magnet interference,

--keep the reading clear in a long term service;

--No need for external adjustment due to its design and high technology in Manufacturing
-- High Accuracy for Horizontal installation;

--With Pre-equipped pulse for communication device as Option

Note:

--Measuring accuracy conform to ISO 4064 class B/C standard..

--Available with different length, hot and reed switch.

Working condition:

--Water temperature: 0.1℃~40℃ ( 0.1℃~90℃ for hot water meter)

--Water pressure : ≤1.0Mpa

Maximum Permissible Error:

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%

(2) in the upper zone from qt inclusive up to and including qs is ±2%

Ø Size

mm

Dn15

Dn20

Dn25

Dn32

Dn40

R

Q3/Q1

R160 for Horizontal installation

Q4

m 3 /h

3, 125

5

7, 875

12, 5

20

Q3

m 3 /h

2, 5

4

6, 3

10

16

Q2

l/h

25

40

63

100

160

Q1

l/h

15, 625

25

39, 375

62, 5

100

Max. Reading

m 3

99999.9999

999999.9999

Min. Reading

Liter

0.05

Pressure Loss

Δ P

Δ P< 63 at Q3

Max. Pressure

MAP

MAP16

Max. Temperate

º C

T50 for cold, 90℃
