Ultrasonic Level sensor, level transmitter, ultrasonic liquid level meter,level meter

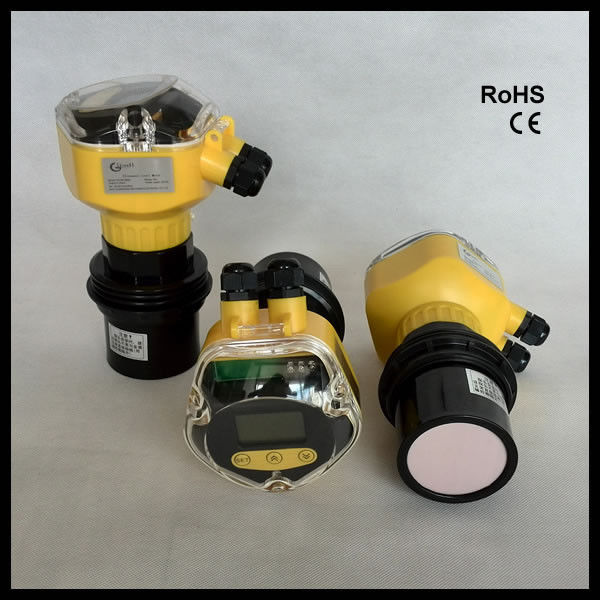

Large Image : Ultrasonic Level sensor, level transmitter, ultrasonic liquid level meter,level meter

Product Details:

Place of Origin:	China, Shaanxi
Brand Name:	GX
Certification:	CE, ROHS
Model Number:	GXUM series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	100-120USD
Packaging Details:	1pc/ bag, 1bag/ box, many boxes/carton, or customized available
Delivery Time:	8-15 working days
Payment Terms:	T/T Western Union MoneyGram Paypal
Supply Ability:	1000 per week

Contact Now

Detailed Product Description

Description:GXUM integral enhanced Ultrasonic long distance digital water Level Meter

Product Description

Brief Introduction

GXUM ultrasonic level (material place,liquid level) meter,is a non-contact, high reliability, cost-effective, easy to install and maintain level measurement instruments. It does not have to contact medium and it can meet most of the requirement of level measurement.

Technical data

Function

Integral type

Split type

Measurement range

5m,10m,15m,20m,30m,40m,50m,60m

5m,10m,15m,20m,30m,40m,50m,60m,70m

Measurement accuracy

1%(0.25~0.5% under laboratory condition)

resolution

3mm or 0.1%(The larger one is effective)

display

Chinese and English LCD

Analog output

4wires4~20mA/510Ω load

2wires4~20mA/250Ω load

4~20mA/510Ω load

Relay output

2 AC 250V/ 8A or DC 30V/ 5A state programmable(optional)

2 for GXUMS series product , 4 for GXUMSD series AC 250V/ 8A or DC 30V/ 5A state programmable( optional )

Power supply

Standard configuration 24VDC(default) 220V AC+15%@50Hz or 110V AC+15%@60Hz

220V AC+15%@50Hz(default) 24VDC or 12VDC or 110V AC+15%@60Hz

Environment temperature

Display instrument-20~+60℃,

transducer-20~+80℃

Display instrument -20~+60℃,

transducer-20~+80℃

Communication port

RS485(default),RS232

Protocol

Modbus-RTU(default) or Modbus-ASCII

Protection grade

Display instrument IP65,transducer IP68

transducer cable

10m(default) can be ordered as need but cannot longer than 100m

Transducer installation

According to the range and transducer select

Probe type

There are 6 type probes now and also there is 3 type under develop.

Type1:PVDF

Type2:aluminium alloy

Type3:ABS

Type4: stainless steel 316

Type5: Teflon

Type6:titanium alloy

We suggest the customer describe the application field in detail, such as the media type, the pressure surrounded, the temperature and humidity. Our engineer will choose you the proper probe.

meter can also customize according to the customer demands: special specifications of transducer such as high voltage, high temperature resistant, minor-caliber, small blind area and so on.
