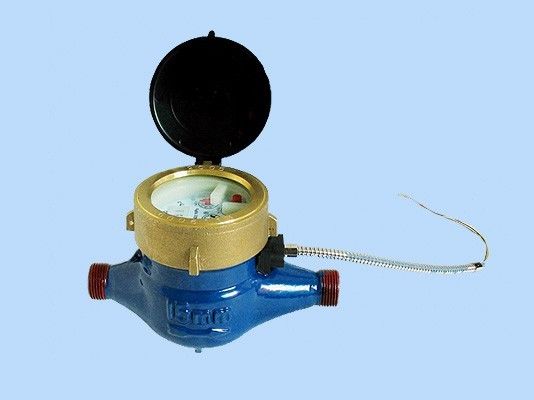

--Measuring the total volume of cold portable water passing through the pipeline.
-NOTE:This type of water meter can be used for a remote reading transmission system as equipped with plus
--Magnetic drive reliable characteristic, long working life;
--Vacuum sealed register ensures the dial keep free from fog and frost, Keep the reading clear in a long term service;
-- Technical data conform to international standard ISO4064 Class A B
Water temperature: 0.1°C~50°C for cold water meter .
0.1°C~90°C for hot water meter.
Water pressure : ≤1.0Mpa or1.6Mpa
4.Maximum permissible error:
(1) in the lower zone from qmininclusive up to but excluding qtis ±5%.
(2) in the upper zone from qtinclusive up to and including qsis ±2%;
Hot water meter±3%
