Prepaid Irrigation Water Meter

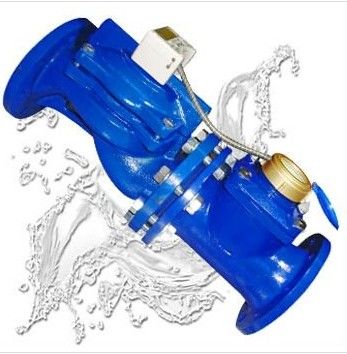

Large Image : Prepaid Irrigation Water Meter

Product Details:

Place of Origin:	China
Brand Name:	YJ
Certification:	ISO4064 ISO9001
Model Number:	NSW-40~300mm

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	US $200 - 1,500 / Piece
Packaging Details:	1pc/inner carton 10pcs/outer carton
Delivery Time:	20-40 days after receive the deposit
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	50000 Piece/Pieces per Month

Contact Now

Detailed Product Description

High Light:

Prepaid Irrigation Water Meter

Irrigation Water Meter

DN50~300mm

1. Advantage:

MSW-2 series remote reading industry woltman water meter, based on the Germany technology, with built-in stainless steel strainer, is suitable for the Chinese water environment, and suitable for the occasion with big flow change. Flow performance is overall superior to IS04064 B-and GB/T778 B grade. Electronic components using split design, it’s more suitable for narrow installation environment and convenient for later maintenance.

2. Technical Specification:

Item	Units	Parameter
Nominal Diameter(DN)	mm	50	65	80	100	150	200
Common Flow(Qp)	m3/h	15	25	40	60	150	250
Overload Flow Rate(Qs)	m3/h	30	70	110	180	350	550
QT(Qt)	m3/h	3.0	5.0	8.0	12	30	50
Minimum Discharge (cold/hot)(Qmin)	m3/h	0.45	0.75	1.2	1.8	4.5	7.5
Startup Flow Rate	m3/h	0.09	0.09	0.22	0.45	0.45	1
Pressure Loss	Mpa	0.06				0.06
Maximum Reading	m3	999999.999				9999999.99
Angle and the Minimum Value	m3	0.0002				0.002
Pulse Value	m3/p	0.001/0.1/1				0.1/1/10

3. The Pressure Loss Curve and Error Curve:

4. Demension:

Nominal Diameter(DN)	mm	50	65	80	100	150	200
Length(L)	mm	280	300	370	370	500	500
Height(H)	mm	228	238	290	308	445	564
Flange Outer Diameter(D)	mm	165	185	200	220	285	340
Side Bolt Holes - Hole Diameter	pc.-mm	4-í19	4-í19	4/8-í19	8-í19	8-í23	8/12-í23
Center Circle Diameter of Bolt Hole(D1)	mm	125	145	160	180	240	295
Weight	kg	14.5	16.8	29	31	78	120

5. Design:

Remote reading industry woltman water meter

6. Product Features:

Taking split design for the electronic components and mechanism part, easy for the maintenance of the electronic components
Overall protection grade reach IP68, in case of made sabotage and accidental damage
Built-in stainless steel strainer,suitable for the Chinese water environment
Accurate and reliable measurements, could meet the water company two years appraisal cycle requirements
Data collecting intelligence, stable, it can record the data flow back
Through the background management program can be data analysis and real-time monitoring
Low power consumption design and built-in large capacity lithium battery, and communication module can continuously work or three years or more
Electronic components can be removed and replaced, it‘s convenient for later maintenance or repairs

7. Solution: Meter reading via Handheld unit

Remote reading industry woltman water meter
