Multiple Echo wall Thickness Gauge , Handheld ultrasonic thickness meter

Large Image : Multiple Echo wall Thickness Gauge , Handheld ultrasonic thickness meter

Product Details:

Place of Origin:	Beijing
Brand Name:	SADT
Certification:	ＣＥ　ＩＳＯ９００１
Model Number:	SA40+

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	carrying case
Delivery Time:	Within 3 days after receiving payment
Payment Terms:	T/T in advance, Western Union
Supply Ability:	50pcs/week

Contact Now

Detailed Product Description

Key Words:

Ultrasonic Thickness Gauge

Memory:

400 Data

Accuacy:

0.01mm

Highlight:

wall thickness gauge

steel thickness gauge

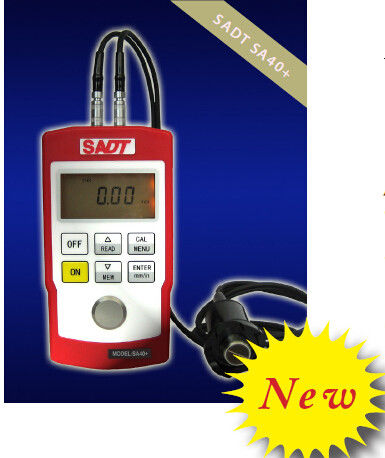

Multiple Echo wall Thickness Gauge , Handheld ultrasonic thickness meter SA40+

Using new technique of multiple echo(echoto-echo), SA40+ can measure wall thickness under paint. For a normal ultrasonic thickness gauge, you must remove paint on work piece, but with new SA40+, you can take measurement directly over the paint of work piece and you can get real thickness value of work piece.

SA40+ has two measuring modes: normal mode and multiple echo(ME) mode. By normal mode, SA40+ is a normal ultrasonic thickness gauge; by ME mode, SA40+ can measure over coatings.

Portable digital Ultrasonic Thickness Tester SA40+

Model	SA40+
*Display*	4 digits LCD
*Backlight*	Yes
*Measuring range*	0.7~300.0mm in steel with standard probe (Normal mode) 3.00~20.00mm in steel Thickness for coating: <1.2mm (Coating mode)
*Resolution*	0.7~9.99mm ±0.05 10.00~99.99mm ±(0.5% H+0.01) 100.0~300.0 ±(1% H+0.1)
*Unit*	mm/inch
*Velocity*	1000~9999m/s
*Coupling indicator*	Yes
*Calibration*	Auto
*Memory*	400 data
*Low battery indicator*	Yes
*Working environment*	0~40oC, 20~90%RH
*Power off*	Auto
*Power supply*	AA battery x 2
*Net weight (g)*	245
*Dimension (mm)*	124x67x30
*Standard probe*	PT-5
*Optional probes*	XT-5

>> Standard package<<

SA40+ main unit 1
Standard 5MHz probe PT-5 1
Built-in calibration block 1
Coupling paste for normal temperature 1
Operation manual 1
Carrying case 1
