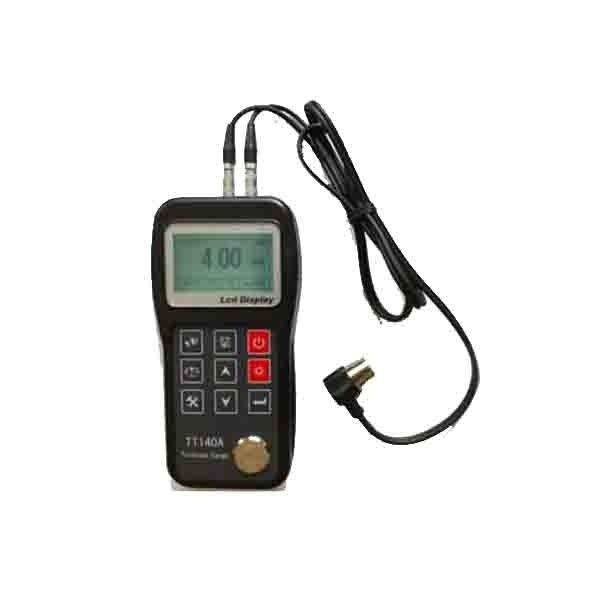

TT140A High accuracy digital ultrasonic thickness gauge

TT140A High accuracy digital ultrasonic thickness gauge
TT140A High accuracy digital ultrasonic thickness gauge

Large Image :  TT140A High accuracy digital ultrasonic thickness gauge

Product Details:
Place of Origin: China
Brand Name: China Coal
Certification: CE,MA,SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 0-10USD
Packaging Details: according to your requirements
Delivery Time: 5-10 working days after order confirmed
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000sets/month
Detailed Product Description
High Light:

TT140A High accuracy digital ultrasonic thickness gauge

,

Portable Digital ultrasonic thickness gauge

,

thickness gauge

Product Introduction chinacoal05

ultrasonic thickness gauge ,digital portable electrical ultrasonic thickness gauge ,

ultrasonic thickness meter,coating thickness gauge,thickness gauge,coating thickness,

ultrasonic sensor,ultrasonic thickness meter,ultrasonic testing,thickness tester,wet film

thickness gauge.

Specifications

1.Ultrasonic thickness gauge
2.High accuracy, competitive price
3.Zero point / two points calibration function

4.TT140A is an intelligent ultrasonic thickness gauge works basing on the latest high performance and Lowpowered microprocessing technology,

which applies to measuring the thickness and acoustic velocity of metals and a variety

of other materials.

It is used to measure the remaining walls of components such as pipelines, pressure

vessels and numerous other applications, in order to monitor the degree of wear and

erode for the manufacturing equipment. Moreover, it can accurately measure kinds

of plank stuff and fabrication parts.

Features

1.Common applications include metals (such as steel, cast iron, aluminum, copper, etc),

plastic, ceramic, glass, fiber-glass and other ultrasonic good conductors.
2.Can be used with various double crystal probes in different sizes and frequencies.
3.Function of zero point calibration and two points calibration can correct the error of the

system automatically.
4.With the given data of thickness, the sound velocity can be measured, so that the

measurement accuracy can be improved.
5.Coupled with prompt, low voltage-tips on the screen.
6.EL backlight display function: for measurement in poor lighting environment.
7.Dump energy indicator function: to display the real time dump energy of the batteries.
8.Shutdown mode: manual and automatic shutdown features are helpful for battery

saving.
9.Features of portable figure, high reliability, anti-vibration and anti-interference make it can be used in terrible operation environment.
10.Function of RS232 communication: data transmission with PC is possible. (optional

function)

Main Parameter

Display

High-contrast LCD with high brightness EL backlight

Measuring Range

0.75~300mm (in steel), can choose mm or inch

Sound Velocity Range

1000~9999m/s

Resolution

0.1mm/0.01mm (optional)

Accuracy

±(0.5%H+0.04)mm H (H for the actual thickness)

Measurement Frequency

4 times per second for single point mode;

10 times per second for scan mode

Memory

2000 measured values can be stored

Work Voltage

3V (2* AA alkaline battery)

Continuous working period

100 hours ( with the EL backlight off)

Dimensions

150×74×32 mm

Weight (not including battery)

245g
