2000C Ultrasonic Thickness Gauge

2000C Ultrasonic Thickness Gauge
2000C Ultrasonic Thickness Gauge

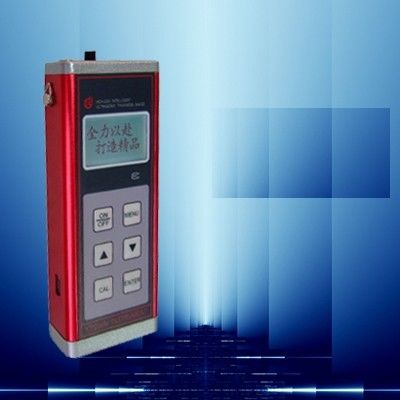

Large Image :  2000C Ultrasonic Thickness Gauge

Product Details:
Detailed Product Description
High Light:

thickness gauge

,

ultasonic detector

,

ultrasonic thickness gauge

With its internal circuitry designed by the latest digital electronic and microcomputer technologies and its exterior made of metal casing, 2000C ultrasonic thickness gauge, characterized by its small size, low power consumption, strong functions, anti-tempering and anti-vibration, is your first choice in the practical application. It can be used to measure the thickness of boilers, pressure vessels, pipes, metal work pieces, glass, plastics and organic glass in a convenient and non-destructive way.

Main Specification:

1. Measuring Range: 0.7-199.9mm (45#Steel) 2. Precision: 0.1mm

200D: 0.65-199.9mm (45# Steel) 0.01mm

3. Error: 1%×Thickness Value ±0.1mm

4. Measuring Method: Manual Memory Measurement

5. Storage Capacity:600 Measurement Points

6. Probe Frequency: 5MHz

7. Sound Velocity Range: 1000--9990M/S

8. Power Supply: 1.2--1.5V Alkaline or Rechargeable Batteries

9. Dimension: 124*51*27m3

10. Coupling Instructions: When the measured object is well coupled with the probe, it appears as the right figure on the leftmost side of the LCD:

11. Operating Environment: Temperature Between -10°C ~ 60°C , Relative Humidity <; 90%

12. APO: Automatic Power Off after 5 Minutes of Standby

Reference Sound Velocity of All Materials

Material

Sound Velocity (M/S)

Material

Sound Velocity (M/S)

Steel

5900

Chrome

6200

Cast Iron

4600

Copper

4700

Brass

4640

Gold

3240

Aluminium

6400

Organic Glass

2730

Stainless Steel

5790

Lead

2400

Glass

5900

Zinc

4170
