| High Light: | drum filter,drum filters for aquaculture,industrial water filters |
||
|---|---|---|---|
Industrial Water Filters Drum Filters for Aquaculture
Product Description
ZH PM series automatic rotary drum filter made of case part, drum components, back washing system, motor control case ,which made up of non toxic corrosion resistant engineering plastics. We use 316L stainless steel 100--400 mesh filter screen which imported from Germany to separate suspended solids from water.
Water Flow Rate: 100 m3/hr
Dimension: 1450*1550*1300mm
Filter fineness: 40Micron
Power: 1.37KW/H
Inlet/Outlet: 200mm/200mm Diameter
(no power consumption when not start the back washing system)
More Water Flow Rate options: 20m3/hr, 40 m3/hr, 60 m3/hr, 80 m3/hr, 100 m3/hr, 200 m3/hr
1. Electric cabinet, installed with manual and automatic duplex option. Manual position can check the machine’s normal running.Zero energy consumption when in normal running
2.Transparent cover made of thicker anti-throw material. Can watch the running state at anytime.
3.Internal dump tank designed in tilted, flushing sewage can flow out easy.
4.Detachable nozzle, can take down to wash, to avoid particle block the nozzles
5. Design an emptying outlet. When stop using the machine, can drain the water away, to avoid growth of bacteria
6. Drum motor with protection shell

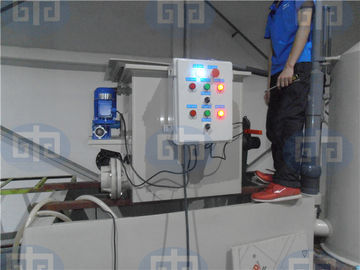

Project Images
About Us
Guangzhou Zhonghang Environmental Technology Co., Ltd was established in 2012, and located in Guangzhou China. We are a manufacturer engage mainly in Aquarium project, Aquaculture technology, higher-place pond recirculating water treatment system, Raw water treatment system, industrial aquaculture and Aquatic engineering research.
We have a professional technical personnel to offer you professional service in machinery, electrical, automatic control in water treatment and aquaculture technology. Each project, our technical personnel would offer you thoughtful service, and strictly follow up operation rules, constant contact with customers by phone communication, making design solution and site operation. Build customer files after project completed, to make sure a perfecting after-service.
We cooperated with a number of domestic and overseas design institutes and enterprises, and enjoy good reputation. Based on the industry, we will credit first, provide customer satisfying products and service.
