chinese manufacture pipeline water filter screen

China chinese manufacture pipeline water filter screen supplier
chinese manufacture pipeline water filter screen supplier chinese manufacture pipeline water filter screen supplier

Large Image :  chinese manufacture pipeline water filter screen

Product Details:

Place of Origin: hebei
Brand Name: guangxing
Certification: ISO
Model Number: 152

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: USD100
Packaging Details: WOODEN
Delivery Time: 10
Payment Terms: TT
Supply Ability: 1000
Contact Now
Detailed Product Description

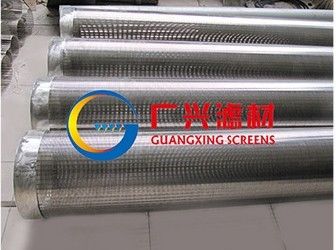

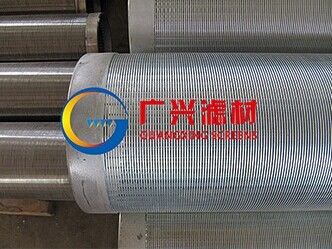

chinese manufacture pipeline water filter screen

The continuous slot wire-wrap screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry. this type of screen is constructed by winding cold rolled triangular V-shaped wire around a circular array of longitudinal rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.

The screen can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

chinese manufacture pipeline water filter screen

chinese manufacture pipeline water filter screenchinese manufacture pipeline water filter screen
