Two - Wire 4 - 20mA TPL Pressure Level Meter / Analyzer - TPL-L0C10 without Transmitter

Name: Two - Wire 4 - 20mA TPL Pressure Level Meter / Analyzer - TPL-L0C10 without Transmitter
Brand: SOP
SKU: TPL-L0C10
Rating: 4.5 (132 reviews)

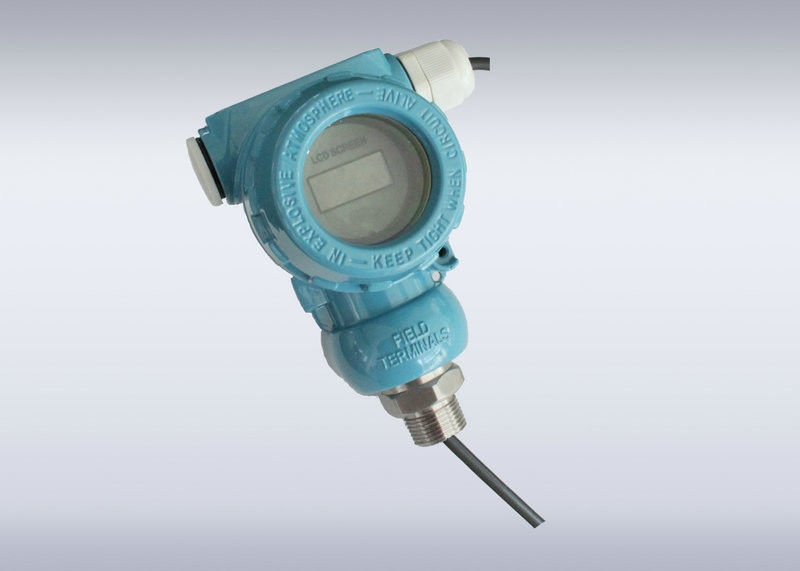

Large Image : Two - Wire 4 - 20mA TPL Pressure Level Meter / Analyzer - TPL-L0C10 without Transmitter

Product Details:

Place of Origin:	CHINA
Brand Name:	SOP
Model Number:	TPL-L0C10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Polyurethane foam + carton
Delivery Time:	15days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

High Light:

sight level indicator

float level indicators

Two - Wire 4 - 20mA TPL Pressure Level Meter / Analyzer - TPL-L0C10 without Transmitter

1. Application

• Water and sewage treatment, Pumping stations, wet wells, chemical and biological reaction tank, settling tank, storage basins,

2. Specifications

Performance characteristics
Measuring Range	0~100 m
Accuracy	± 0.25% FS
Long-term Stability	± 0.15% FS / year
Temperature Coefficient	± 0.1% FS
Outputs
Analog Outputs	two-wire 4 ~ 20mA
Power supply
power supply	24VDC ± 10%
Physical parameters
Dimension of Transmitter	150 × 100.5 × 94.5mm (5.93.93.8 in.)
Connection	M20 × 1.5 external thread
Gas Cable	polyurethane air conductivity cable
Environmental conditions
Ingress protection	--the junction box and the header: IP67 -- Probe: IP68
Operating Temperature	-40~85 ℃
Relative Humidity	0 ~ 100%

3. Ordering Information

Ordering Information
	Structure type		Display		Cable length
TPL
	code	meaning	code	meaning	code	meaning
	L	Polyurethane cable type	0	No display	C10	10m cable
			1	display	CXX	XXm cable
Example TPL-L0C10, Polyurethane cable type, 10m cable, on display.
