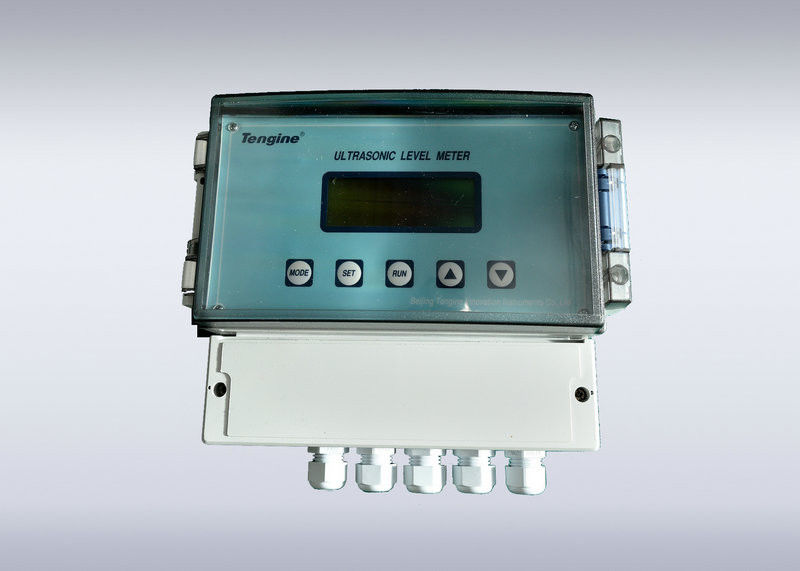

Water TUL Integrative Ultrasonic Level Meter / Analyzer With LCD Display TULI30B 30m
1.Application
• Water and sewage treatment
Pumping stations, wet wells, chemical and biological reaction tank, settling tank, storage basins
• electricity, mining
Mortar pool, coal slurry pond, water treatment
2. Features and Benefits
• Sturdy and stable sensors are suitable for harsh industrial applications
• Integration of rich experience in practice and advanced algorithms, it can effectively overcome the interference of bubbles
• Ultrasonic transducer is made of advanced piezoelectric ceramic materials, the acoustic matching technique improves the emission efficiency
• Transducer built-in temperature sensor can achieve real-time automatic temperature compensation of the measured value
• Process control auto-emission energy, it covers the large range and small blind zone
• Blind zone can also be manually set, to shield the probe from the interference signal
• 4 to 20 mA isolated current output, optional fieldbus interfaces
3. Specifications
|
Performance characteristics |
|
|
Measuring Range |
TULI1: 0 to 5 meters TULI2: 0 to 10 meters TULI3: 0 to 15 meters |
|
Blind Zone |
TULI1: 0.25 m TULI2: 0.4 m TULI3: 0.5 m |
|
Beam Angle |
5° |
|
Resolution |
0.001m |
|
Accuracy |
±0.2% FS |
|
Calibration |
Factory calibration and field calibration |
|
Display |
LCD display |
|
Outputs |
|
|
Analog Outputs |
two-wire or four-wire 4 ~ 20mA |
|
Power supply |
|
|
power supply |
4VDC ± 10%, 220V |
|
Physical parameters |
|
|
Materials |
--Housing: plastic of PBT-FR --Transducers: PVDF, PU / PC |
|
Connection |
TULI1: M63 × 2 external thread TULI2: M65 × 2 external thread TULI3: M70 × 2 external thread |
|
Weight |
TULI1,: 1.8Kg TULI2: 2.0Kg TULI3: 2.7Kg |
|
Environmental conditions |
|
|
Ingress protection |
IP67 |
|
Operating Temperature |
-40 ~70℃ |
|
Relative Humidity |
0 ~ 95% |
|
Operating Pressure |
≤1Bar |
4. Ordering Information
|
Ordering Information |
||||||
|
Transmitter Selection |
||||||
|
|
Measuting range |
Signal output |
Power version |
|||
|
TULI |
|
|
|
|||
|
|
code |
meaning |
code |
meaning |
code |
meaning |
|
|
05 |
5m range |
0 |
4~20mA |
A |
Four-wire 220VAC |
|
|
10 |
10m range |
|
|
B |
Two-wire 24VDC |
|
|
15 |
15m range |
|
|
C |
Four-wire 220VAC |
|
Example TULI 10AC, refer to integrative ultrasonic level meter, measurement 0~5m,output 4~20mA, Four-wire 220V AC Power Supply. |
||||||
Accessories
FA0110:0~5m, stainless steel
FA0111: 0~5m, carbon steel
FA0120:0~10m, stainless steel
FA0120:0~10m, carbon steel
FA0130:0~15m, stainless steel
FA0131:0~15m, carbon steel
