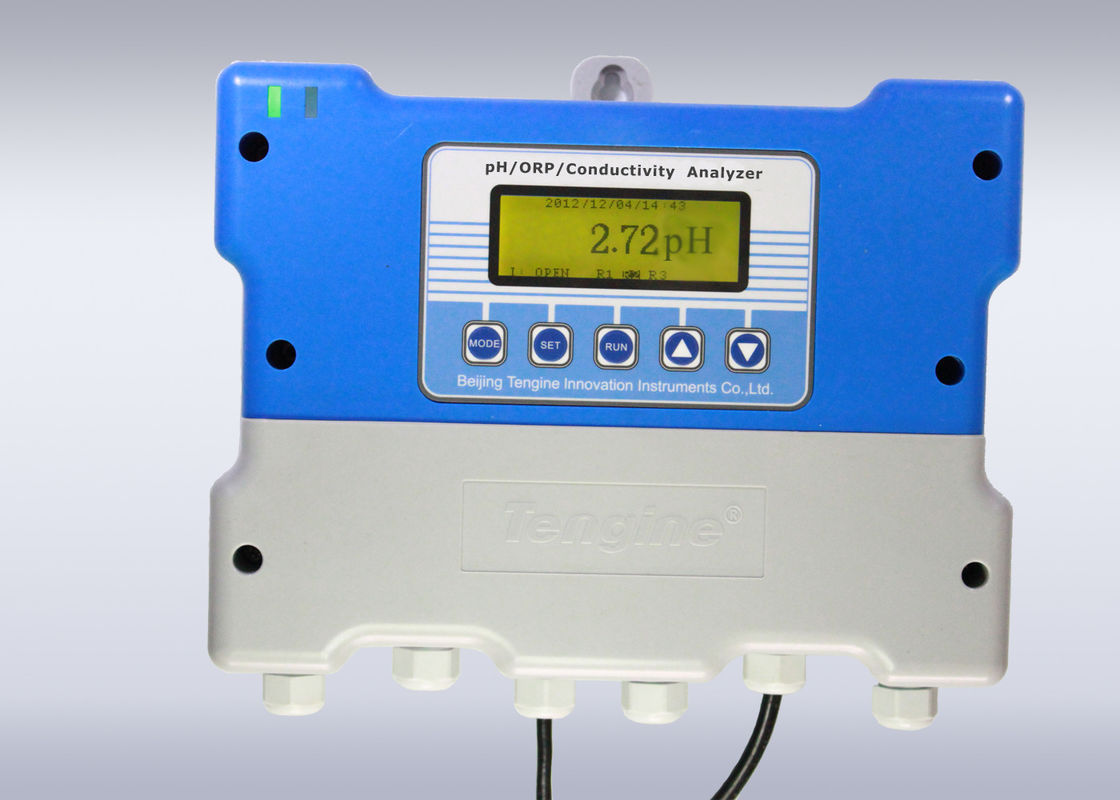

Online Large LCD Screen Electrical Conductivity Analyzer / Meter TCD10AC - TCD-S2C10

Online Large LCD Screen Electrical Conductivity Analyzer / Meter TCD10AC - TCD-S2C10
Online Large LCD Screen Electrical Conductivity Analyzer / Meter TCD10AC - TCD-S2C10 Online Large LCD Screen Electrical Conductivity Analyzer / Meter TCD10AC - TCD-S2C10 Online Large LCD Screen Electrical Conductivity Analyzer / Meter TCD10AC - TCD-S2C10

Large Image :  Online Large LCD Screen Electrical Conductivity Analyzer / Meter TCD10AC - TCD-S2C10

Product Details:
Place of Origin: CHINA
Brand Name: SOP
Model Number: TCD10AC- TCD-S2C10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Polyurethane foam + carton
Delivery Time: 15days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 100 sets/month
Detailed Product Description
High Light:

electrical conductivity meters

,

electrical conductivity tester


Online Large LCD Screen Electrical Conductivity Analyzer / Meter TCD10AC - TCD-S2C10


1. Features and Benefits

• Large LCD screen with backlit.

• All kinds of data has password protection to avoid misoperation.

• History curve function: the measurement data is collected every 5 minutes, one month data can be stored.

• Notepad function, provides the record of operating and alarming time.

• When the electrode is calibrated, the mode, time and results are recorded, easy to review and analysis the change.


2. Application

Monitoring conductivity of surface water and wastewater, also could be used to for monitoring acid, alkali, salt concentration and total dissolved solids.

• Water/wastewater treatment

Inflow of the plant, water collection well, aeration tank, the effluent, etc.

• Pulp and paper, power plant, mine

Water treatment, chemical treatment feeding



3. Specifications



Performance characteristics

Measuring Range

0~20000μs/cm

Accuracy

0.5%±1LSD

Repeatability

1%

Sensitivity

0.02pH

Calibration

Factory calibrated, also can be calibrated by customer on site

Display

LCD displays data including date, time, measurement value, trendline, etc.

Data storage

Automatic data store, power-off data protection

Outputs

Analog Outputs

0-10mA/4-20 mA output( maximum load 750 ohms)

Relay outputs

2 Relays with programmable hysteresis

Relay capacity

3A, 220VAC

Digital Communication

MODBUS RS485,Profibus DP is optional

Power supply

AC power supply

90~265 VAC, 50Hz

DC power supply

24 VDC ±10%

Physical parameters

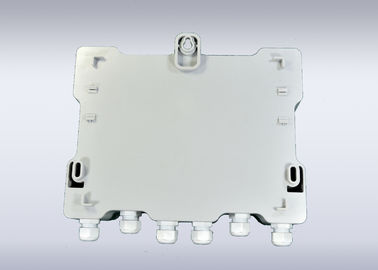

Dimension of Transmitter

146×146×108mm(W×H×D)

(5.7*5.7*4.3 in.)

Dimension of Sensor

Φ28×98mm (1.1*3.9 in.)

Materials

--Transmitter: PC

--Sensor: Polyester

Process connection of sensor

 NPT 3/4

Weight

--Transmitter: 1Kg

--Sensor: 0.5Kg

Length of sensor's Cable

10m, Shielded cable (other length available)

Environmental conditions

Ingress protection

--IP66 (transmitter)

--IP68 (Sensor)

Operating Temperature

--Transmitter: -20~60℃

--Sensor: 0~60℃

Operating Pressure

≤10Bar



4. Ordering Information





Ordering Information

Transmitter Selection



Single or duplex isolate 4~20mA output

Signal output

Power version

TCD









code

meaning

code

meaning

code

meaning



1

Single isolate 4~20mA output(ORP value)

0

4~20mA

AC

220VAC







1

RS 485(Modbus)

DC

24VDC







2

Profibus DP





Example

TCD10AC, conductivity analyzer transmitter, output Single isolated 4 ~ 20mA (conductivity), 220V AC Power Supply.

Sensor Selection



Measuting range

Cable length

TCD-S







code

meaning

code

Meaning



0

0~20μs/cm

C10

10m cable



1

0~200μs/cm

CXX

XXm cable



2

0~2000μs/cm







3

0~20000μs/cm





Example

TCD-S2C10, a conductivity sensor, 0~2000μs/cm, with 10m cable.



(3) Accessories

FA0000: Immersion mounting bracket, stainless steel

FA0001: Immersion mounting bracket, PVC

FA0020: Stainless steel floating ball mounting bracket

FA0021: PVC floating-board mounting bracket

FA0031: Circulation mounting accessory, PVC

FA0910: Stainless steel adapter

FA0911: PVC adapter

FA0800: Instrument protective housing, stainless steel

FA0810: Instrument protective housing, stainless steel, with heater unit

FC0100: Ultrasonic self-cleaning device
