Remote reading electronic water meter developed from our new generation full electronic water meter produced by one fully innovative technology: contactless electronic flow rate sensor. It is patent protected in China.
Measuring principals as: when water pass through the inner chamber of water meter, the impeller with magnet ring rotates, it couples with the electronic flow rate sensor which inside movement component embedded magnet ring by no-contact condition and they rotate synchronously. Also electronic flow rate sensor inside has element with stored electric field energy, the electric field changes together with the rotation movement, so that sensor element gets the accurate electronic signal and it connects signal with control circuit, the CPU of control circuit calculates signals, then reaches the intention of metering. At the same time control circuit converts metering data to computer by wireless RF module, so realizes wireless remote transmission and automatic meter reading.
Function:
Usedto measurethe total water volume that flow by tap water pipeline.
Character:
The Startup flow rate of this kind of water meter is five to eight times than common type.
It can effectively prevent the dripping, Prompting users to repair the table as soon as the
Pipe run, leakage phenomenon etc. Improve people's water saving consciousness. Inlet with
one-way valve structure, reverse installation cannot use of water normally. Dimension of this kind
Of water meter is same as the common type, easy to install.
Application scope:
Water temperature not more than 30°C, water pressure not more than1MPa
Maximum permissible errors:
A). Start from the lower area which includeQmin, but not include theQt, the maximum permissible errors ±5%.
B). Start from the high area which includeqttiltoqs, the maximum permissible errors is ±2%.
Description | Unit | Hydraulic data and dimensions | ||||||
Nominal size | mm | 15 | 20 | 25 | 32 | 40 | 50 | |
inch | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | ||
Overload flow-rate (qs) | m3/h | 3 | 5 | 7 | 12 | 20 | 30 | |
Permanent flow-rate (qp) | m3/h | 1.5 | 2.5 | 3.5 | 6 | 10 | 15 | |
Transitional flow-rate (qt) | l/h | 120 | 200 | 280 | 480 | 800 | 3000 | |
Minimum flow-rate (qmin) | l/h | 30 | 50 | 70 | 120 | 200 | 450 | |
Min. reading | l | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
Max. reading | m3 | 99999 | 99999 | 99999 | 99999 | 999999 | 999999 | |
Nominal pressure | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
ΔP at the qs | MPa | 0.08 | 0.09 | 0.08 | 0.09 | 0.085 | 0.085 | |
L | mm | 165 | 190 | 260 | 260 | 300 | 300 | |
I | mm | 245 | 292 | 380 | 384 | 438 | 438 | |
H | mm | 105 | 105 | 105 | 105 | 170 | 170 | |
B | mm | 91 | 91 | 91 | 91 | 130 | 130 | |
G | inch | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | |
R | inch | R1/2 | R3/4 | R1 | R11/4 | R11/2 | R2 | |
Weight | Without connections | kg | 1.01 | 1.12 | 1.62 | 1.95 | 3.77 | 4.72 |
With connections | 1.18 | 1.39 | 2.05 | 2.67 | 4.47 | 6.12 | ||
Automatic Read Residential Plastic Multi Jet Water Meter With PDA / Fixed Network
Quick Detail:
Flow range:0.020m3/h~2.5m3/h, 0.025m3/h~4.0m3/h
automatic meter reading solutions:-Hand PDA reader, walk-by or drive-by
- Ad-hoc fixed network
technology:flow rate sensor technology
type: multi-jet
Applications:Residential water meter, home water meter, domestic water meter , irrigation water meter
Remote reading electronic water meter is based on our new generation full electronic water meter, not based on mechanical-electronic water meters. Remote reading by PDA or fixed network.
Description:
Remote reading electronic water meter developed from our new generation full electronic water meter produced by one fully innovative technology: contactless electronic flow rate sensor. It is patent protected in China.
Measuring principals as: when water pass through the inner chamber of water meter, the impeller with magnet ring rotates, it couples with the electronic flow rate sensor which inside movement component embedded magnet ring by no-contact condition and they rotate synchronously. Also electronic flow rate sensor inside has element with stored electric field energy, the electric field changes together with the rotation movement, so that sensor element gets the accurate electronic signal and it connects signal with control circuit, the CPU of control circuit calculates signals, then reaches the intention of metering. At the same time control circuit converts metering data to computer by wireless RF module, so realizes wireless remote transmission and automatic meter reading.
Wireless Electronic AMR water meter is compatible with two automatic meter reading solutions:
-Hand PDA reader, walk-by or drive-by
- Ad-hoc fixed network
Applications:
ElectroAMRTM remote reading electronic water meter is used for measurement of cold water consumption in household and high-floors flats as well as industry.
Remote reading electronic water meter specifications:
|
FEATURE |
SPECIFICATION |
|
|
LX-15DWY1 |
LX-20DWY1 |
|
|
Flow range |
0.020m3/h~2.5m3/h |
0.025m3/h~4.0m3/h |
|
Permanent flow rate Q3 |
2.5m3/h |
4.0m3/h |
|
Flow turndown Q3/Q1 |
125 |
125,160 |
|
Maximum tolerance |
Q2≤Q≤Q4 : ±2% Q1≤Q≤Q2: ±5% |
|
|
Accuracy |
Class C |
|
|
Temperature |
T30 |
|
|
Enclosure rating |
IP68 |
|
|
Pressure grade |
MAP10 |
|
|
Pressure loss |
△p63 |
|
|
Installation |
H |
|
|
Battery life |
8 years |
|
|
LCD digital showing |
9 digit LCD, 0.00001 m3~9999.99999 m3 |
|
|
Materials |
Full plastic body |
|
|
Radio frequency |
430~440MHz, 470~510MHz, 868~870MHz, 902~928MHz |
|
Competitive Advantage:
Industrial Dry-dial Cold Water Meter Woltmann Removable DN50mm Horizontal
1.Type name: Woltmann removable type
2.Model No.: LXLG-50B
3.Standard :ISO 4064 Class B
4.Material: Cast iron
5.Dry-dial,magnetic type
6.Horizontal installation
Product features:
Woltmann detachable type
Dry-dial,magnetic drive
Selected high quality materials for steady and reliable characteristic ,low head loss and enable use a long life span
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term
Universal use with this range detachable,without removing the meter from the pipeline for a easy maintenance and replacement ,good looking,etc.
Measuring accuracy conform to ISO4064 Class B standard
Main Technical data
Meter Size DN (mm) | | Qs | Qp | Qt | Qmin | Starting | Min | Max | |||
m³/h | L/h | m³ | |||||||||
50 | B | 30 | 15 | 3 | 0.45 | 150 | 0.01 | 9999999 | |||
65 | B | 50 | 25 | 5 | 0.75 | 170 | 0.01 | 9999999 | |||
80 | B | 80 | 40 | 8 | 1.2 | 280 | 0.01 | 9999999 | |||
100 | B | 120 | 60 | 12 | 1.8 | 400 | 0.01 | 9999999 | |||
125 | B | 200 | 100 | 20 | 3 | 800 | 0.01 | 9999999 | |||
150 | B | 300 | 150 | 30 | 4.5 | 1200 | 0.01 | 9999999 | |||
200 | B | 500 | 250 | 50 | 7.5 | 1500 | 0.01 | 9999999 | |||
250 | B | 800 | 400 | 80 | 12 | 2500 | 0.01 | 9999999 | |||
300 | B | 1200 | 600 | 120 | 18 | 6000 | 0.01 | 9999999 | |||
Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%
Working Condition:
Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)
Competitive Advantage:
Reasonable price with good quality
Long time guarantee
100% tested
On time delivery
ABS Rotary Vane Wheel Water Meter Multi-jet Dry Cold LXSG-15EP
Description:
ABS Rotary Vane Wheel Water Meter Multi-jet Dry Cold LXSG-15EP
Quick Detail:
1.Type name: Multi-jet ,rotary vane wheel dry dial type
2.Model No.: LXSG-15EP
3.Standard :ISO 4064 Class B
4.Material: ABS
Product features:
Multi-jet , rotary vane wheel type
Vacuum sealed register ensures the dial keep the reading clear in a long term service
Especially suit to the area of lower quality water
Universal use .Easy for interchange & maintenance.
Main Technical data
|
Meter Size DN (mm) |
Class
|
Qs Overload Flow |
Qp Nominal Flow |
Qt Transitional Flow |
Qmin Min Flow |
Starting Flow |
Min Reading |
Max Reading |
|
m³/h |
L/h |
m³ |
||||||
|
15 |
B |
3 |
1.5 |
120 |
30 |
8 |
0.0001 |
99999 |
|
20 |
B |
5 |
2.5 |
200 |
50 |
10 |
0.0001 |
99999 |
Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%
Working Condition:
Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)
Installation requirements:
Specifications:
|
Type |
size |
L |
B |
H |
Connection thread |
|
LSXG-15EP |
15 |
165 |
102 |
115 |
G3/4B |
|
LXSG-20EP |
20 |
190 |
102 |
115 |
G1B |
Competitive Advantage:
Stable quality
Reasonable price
1 year warranty
100% tested
On time delivery

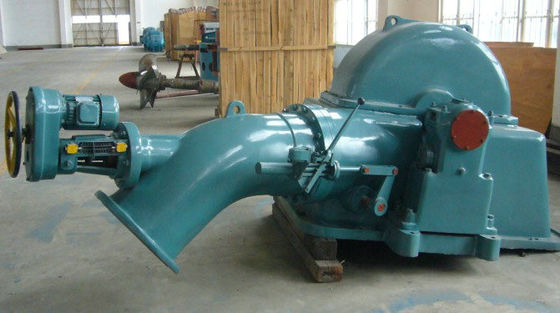

800KW to 2.5MW Turgo turbine suitable for hydro power station with the head 100meter
to 210 meter.
Detailed product description
Turbine type: Turgo Water Turbine Runner Material: Stainless Steel
Water head: 100M to 210M Capacity : 30KW to 10MW
Applications:
Description:
Turgo Water Turbine is widely used in hydro power plants with the high head from 100m to 210m.Design water flow from 1.09m3/S to 1.58m3/S. they are included in runner, turbine case, nozzles, valve and inlet pipe. With inclined jet turbine, the water flow output from nozzle flows along a certain angle of plane of rotation of the running wheel instead of flowing along the tangent of the turning wheel, and the water flow goes inside the blades from one side and goes out form blades from another side. The inclined jet turbine adopts single curved surface blades, the water flow goes through the blades will splash, therefore the efficiency is low. The inclined jet turbine is applicable for the small-sized and medium-sized power station with the hydraulic head range of 20-400m.
Specification:
|
Type |
Horizontal Turgo turbine with one nozzle or two nozzle |
|
Water Head |
100m to 210m |
|
Design Water flow |
1.09m3/S to 1.58M3/S |
|
Installed Capacity |
From 30KW to 10MW for one single turbine |
|
Generator Type |
Synchronous Alternator |
|
Voltage |
400V or 6300V |
|
Other Equipments |
Governor, valve, control panel with Excitation |
Technical Parameters as bellow:
Model:XJA-W-80/1X18
|
Turgo Water turbine data |
Generator Data |
|||||
|
Head |
Flow M3/S |
Speed R/MIN |
(KW) Out Power |
Model |
KW Power |
Speed R/MIN |
|
100 |
1.109 |
500 |
883.2 |
SFW800-12/1730 |
800 |
500 |
|
110 |
1.141 |
500 |
1015.8 |
SFW1000-12/1730 |
1000 |
500 |
|
120 |
1.190 |
500 |
1151.5 |
SFW1000-12/1730 |
1000 |
500 |
|
130 |
1.24 |
600 |
1299.9 |
SFW1250-10/1430 |
1250 |
600 |
|
140 |
1.28 |
600 |
1460 |
SFW1250-10/1430 |
1250 |
600 |
|
150 |
1.333 |
600 |
1620 |
SFW1600-10/1430 |
1600 |
600 |
|
160 |
1.376 |
600 |
1779.7 |
SFW1600-10/1430 |
1600 |
600 |
|
170 |
1.419 |
600 |
1947.6 |
SFW1600-10/1430 |
1600 |
600 |
|
180 |
1.460 |
600 |
2106.3 |
SFW2000-10/1430 |
2000 |
600 |
|
190 |
1.500 |
750 |
2278.6 |
SFW2000-8/1430 |
2000 |
750 |
|
200 |
1.540 |
750 |
2474.6 |
SFW2500-8/1730 |
2500 |
750 |
|
210 |
1.580 |
750 |
2682.1 |
SFW2500-8/1730 |
2500 |
750 |
Competitive Advantage from Xin Yi Hydro Turbine
Xin Yi Hydro turbine is a Comprehensive and professional solution in small hydro power generation with a tradition over 50 years in China. Our factory was founded in 1958, we produced water turbine from 20KW to 10MW for one single turbine, At present Xin Yi Hydro offers complete range of turbines : Kaplan, Pelton, Francis, Turgo and Tubular turbine covering all possible sites from low heads starting somewhere around 1,5 - 2 m upto high heads reaching some 600 m. The flow variation is very wide too, 10 L/s up to 100.000 L/s. We are specialist for Small Hydro Power Plants so our maximum output limit is 10.000 KW. First-class quality product is appraised by our users. we actively advocate: market-oriented, technology-leading, innovation as a means to actively explore the domestic and oversea market.
Our service is
Inquiry response : Your inquiries will replied in 24 hours
Delivery time: 45 days to 60days for the small turbine from 20KW to 500kw.
We warmly welcome you visit us and send email to us to inquire our small hydro turbine.

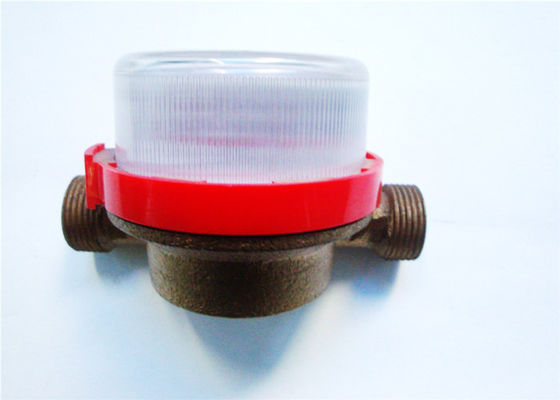

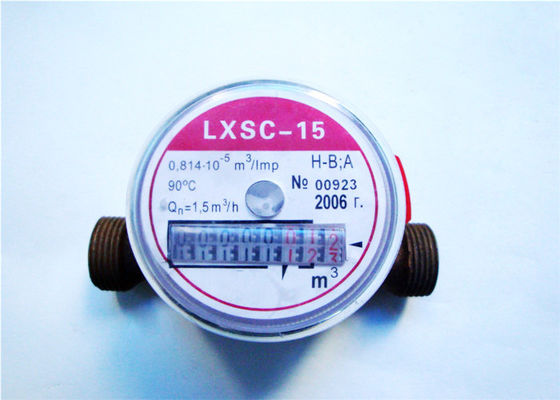

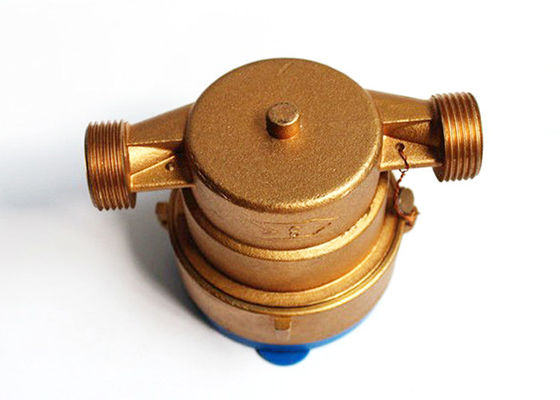

Residential Rotary Single Jet Water Meter , Domestic Hot Water Meter
Description:
Single-jet Dry-dial Type Hot Water Meter DN15mm
Quick Detail:
1. Type name: Single-jet brass water meter
2. Model No.: LXSC-15D
3. Standard :ISO 4064 Class B
4. Vacuum sealed register
5. Feature : Dry type, anti-magnetic
6. For hot water
Product features:
Single-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Selected high quality materials for steady and easily for reading
Vacuum sealed register
Installation requirements:
Main Technical data
|
Meter Size DN (mm) |
Class
|
Qs Overload Flow |
Qp Nominal Flow |
Qt Transitional Flow |
Qmin Min Flow |
Min Reading |
Max Reading |
|
|
m³/h |
L/h |
m³ |
||||||
|
15 |
A |
3
|
1.5
|
150 |
60 |
0.0001 |
99999 |
|
|
B |
120 |
30 |
||||||
|
20 |
A |
5 |
1.8
|
250 |
100 |
0.0001 |
99999 |
|
|
B |
200 |
50 |
||||||
|
25 |
A |
7
|
3.5
|
350 |
140 |
0.0001 |
99999 |
|
|
B |
280 |
70 |
||||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) (Hot water meter ±3%)
Working Condition:
Water temperature:0℃≤t≤90℃ (For hot water meter)
Water pressure: ≤10bar (16bar on request)
Specifications:
|
Type |
size |
L |
B |
H |
Connection thread |
Weight |
|
LSXC-15D |
15 |
110 |
73 |
88 |
G3/4B |
0.70 |
|
LXSC-20D |
20 |
130 |
73 |
88 |
G1B |
0.80 |
|
LXSC-25D |
25 |
160 |
73 |
92 |
G1 1/4B |
1.47 |
Application:
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
Competitive Advantage:
100% tested
Reasonable price with good quality
Long time guarantee
On time delivery

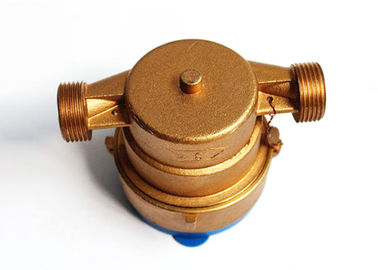

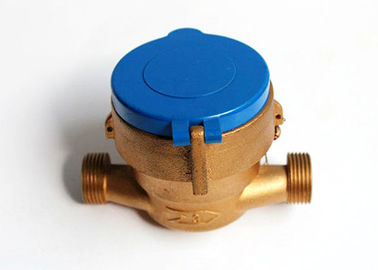

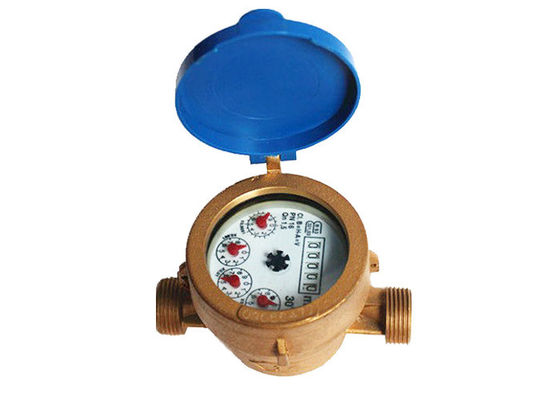

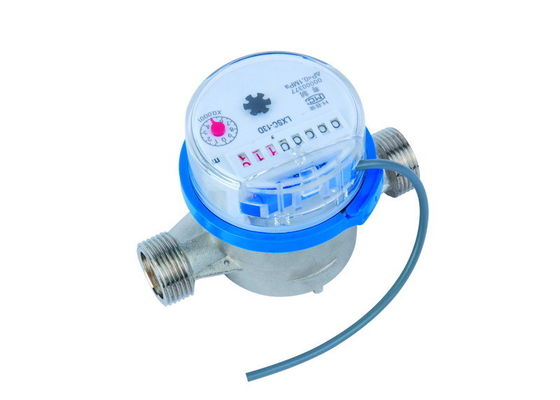

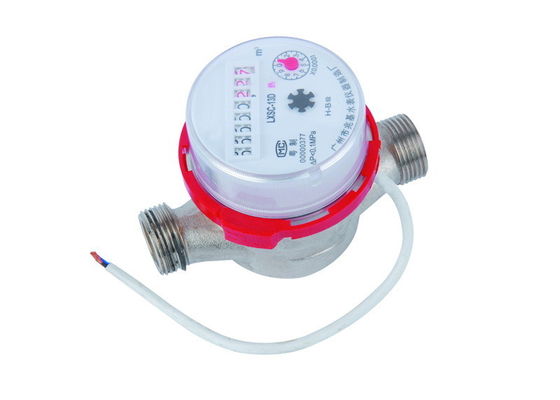

Cold Brass Single Jet Water Meter Anti-magnetic For Household
Quick Detail:
1. Type name: Single-jet brass water meter
2. Model No.: LXSC-15D ~LXSC-20D
3. Standard :ISO 4064 Class B
4. Material: Brass
5. Feature : Dry type, anti-magnetic
6. Remote reading transmission system could be installed
Description:
Single jet Dry-dial Type Cold (Hot) Water Meter with Remote Reading Device DN15mm~DN20mm
Product features:
Single-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Material: Brass
Vacuum sealed register
The register can be turned discretion and easy reading
Small in size, light weight and small at starting flow rate
Remote reading transmission system and the pulse constant :10L/Pulse ,100L/Pluse ,1000L/Pulse for option
This range of water meter is used to measure the total quantity of cold (hot) potable water which consumed in household or a resident unit passing through the pipeline
Main Technical data
|
Meter Size DN (mm) |
Class
|
Qs Overload Flow |
Qp Nominal Flow |
Qt Transitional Flow |
Qmin Min Flow |
Min Reading |
Max Reading |
|
|
m³/h |
L/h |
m³ |
||||||
|
15 |
A |
3
|
1.5
|
150 |
60 |
0.0001 |
99999 |
|
|
B |
120 |
30 |
||||||
|
20 |
A |
5 |
1.8
|
250 |
100 |
0.0001 |
99999 |
|
|
B |
200 |
50 |
||||||
|
25 |
A |
7
|
3.5
|
350 |
140 |
0.0001 |
99999 |
|
|
B |
280 |
70 |
||||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) (Hot water meter ±3%)
Working Condition:
Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)
Specifications:
|
Type |
size |
L |
B |
H |
Connection thread |
Weight |
|
LSXC-15D |
15 |
110 |
73 |
88 |
G3/4B |
0.70 |
|
LXSC-20D |
20 |
130 |
73 |
88 |
G1B |
0.80 |
|
LXSC-25D |
25 |
160 |
73 |
92 |
G1 1/4B |
1.47 |
Installation requirements:
Competitive Advantage:
100% tested
Reasonable price with good quality
Long time guarantee
On time delivery
Wet-Dial Single Jet Water Meter , ISO 4064 Class B Home Water Meter
Description:
Brass Body Single-jet Wet-dial Type Cold Water Meter LXSC-15D~LXSC-20D
Quick Detail:
1. Type name: Single-jet brass water meter
2. Model No.: LXSC-15D
3. Standard :ISO 4064 Class B
4. Material: Brass
5. Feature : Wet type, anti-magnetic
6. Cold water meter or hot water meter for option
Product features:
Single-jet ,Rotary vane wheel type
Wet-dial, Magnetic drive ,Resistance to exterior magnet interference
Material: Brass
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
Compliance with standard :technical data conforms to ISO4064 Class B standard
Selected high quality materials for steady and easily for reading
The register can be turned discretion and easy reading
Small in size, light weight and small at starting flow rate
Plastic or brass body water meter and remote reading transmission system and the pulse constant :10L/Pulse ,100L/Pluse ,1000L/Pulse for option
Installation requirements:
Main Technical data
|
Meter Size DN (mm) |
Class
|
Qs Overload Flow |
Qp Nominal Flow |
Qt Transitional Flow |
Qmin Min Flow |
Min Reading |
Max Reading |
|
|
m³/h |
L/h |
m³ |
||||||
|
15 |
A |
3
|
1.5
|
150 |
60 |
0.0001 |
99999 |
|
|
B |
120 |
30 |
||||||
|
20 |
A |
5 |
1.8
|
250 |
100 |
0.0001 |
99999 |
|
|
B |
200 |
50 |
||||||
|
25 |
A |
7
|
3.5
|
350 |
140 |
0.0001 |
99999 |
|
|
B |
280 |
70 |
||||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) (Hot water meter ±3%)
Working Condition:
Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)
Specifications:
|
Type |
size |
L |
B |
H |
Connection thread |
Weight |
|
LSXC-15D |
15 |
110 |
73 |
88 |
G3/4B |
0.70 |
|
LXSC-20D |
20 |
130 |
73 |
88 |
G1B |
0.80 |
|
LXSC-25D |
25 |
160 |
73 |
92 |
G1 1/4B |
1.47 |
Application:
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
Competitive Advantage:
Reasonable price with good quality
Long time guarantee
100% tested
On time delivery
Contact Person: Miss.
Tel: 10-65569770
Fax: 86-10-8563-2312
Portable Ultrasonic Flow Meter, High Reliability Waterproof Flowmeter TUF-2000F
High Accuracy Portable Flowmeter , Online Ultrasonic Flow Meter TUF-2000S
TUF-2000H Handheld Ultrasonic Flow Meter, Non-Intrusive Measuring Flowemeter
Automatic Read Residential Plastic Multi Jet Water Meter With PDA/ Fixed Network
Plastic Nylon Multi Jet Super Dry Cold Water Meter ISO4064 Class B
Brass Multi Jet Domestic Water Meter Hot With End Flange / BSP LXSR-50E
YSI Pro20 Dissolved Oxygen METER and Temperature Handheld 6050020
Single Jet Water Meter Dry Dial LXSC-15D For Resident, Remote Reading Water Meter
Resident Rotary Domestic Single Jet Water Meter Anti Magnetic For Hot Water
