High Speed Mobile Industrial 4G LTE Modem At Command For Remote POS Terminals

High Speed Mobile Industrial 4G LTE Modem At Command For Remote POS Terminals
High Speed Mobile Industrial 4G LTE Modem At Command For Remote POS Terminals High Speed Mobile Industrial 4G LTE Modem At Command For Remote POS Terminals

Large Image :  High Speed Mobile Industrial 4G LTE Modem At Command For Remote POS Terminals

Product Details:
Place of Origin: China
Brand Name: E-Lins
Certification: CE/ROHS/FCC/SGS
Model Number: M300t-F2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with boxes
Delivery Time: Sample in 3 days (for usual version), Bulk order in 2-30 working days depends on material stock
Payment Terms: T/T or western Union
Supply Ability: 20,000pcs per month
Detailed Product Description
Product Name: Cellular 4G LTE Modem Supported Networks: 4G FDD LTE, DC-HSPA+, HSDPA, HSUPA, HSPA+, 2G
Port: USB2.0 Antenna: External Replaceable
Application: Wireless M2M Case Material: Metal
Standard: CE/ROHS/FCC/SGS Type: Industrial Class
SIM Card Slot: Yes Wireless Type: Cellular Mobile
High Light:

4g lte ethernet modem

,

4g wireless modem


High Speed Mobile 4G LTE Modem USB2.0 Port Up To 150Mbps


Description:

1. The M300t Mobile LTE Modem is a wireless 4G USB data modem providing global cellular network connectivity, where cellular signal is available, with 4G LTE/3G/2G fallback capabilities for ensured access to the internet anywhere.
2. Hot Spot of M300t Mobile 4G LTE Modem:
Built-in 2G/3G/4G industrial cellular modules, insert SIM/UIM card to work directly;
Built-in SIM/UIM card slot;
Broadband M2M communications
SIM failover/standby APN
3G/4G failover for fixed line broadband connections
Rapid service deployment applications
Support At command
USB port
GPS support (option)


Specifications Of M300t Mobile 4G LTE Modem:


Wireless

Mobile Networks

4G LTE (FDD/TDD)
UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)
GSM EDGE/GPRS
CDMA1x
CDMA2000 EVDO Rev 0/Rev A/Rev B
TD-SCDMA (TD-HSDPA/TD-HSUPA)

Cellular Frequency

4G LTE (FDD-LTE & TDD-LTE)
4G FDD LTE:
Band 1--2100Mhz
Band 2--1900Mhz
Band 3--1800Mhz
Band 4—AWS(1700/2100Mhz)
Band 5--850Mhz
Band 7--2600MHz
Band 8--900Mhz
Band 12--700Mhz
Band 13--700(B13)Mhz
Band 17--700(B17)/AWS
Band 19—800Mhz
Band 20--DD800Mhz
Band 21
Band 25 –1900Mhz G Block
Band 31– 450Mhz
Other FDD band…

4G TDD LTE (TD-LTE):
Band 41 – 2500/2600Mhz
Band 40 -- 2300Mhz
Band 39 – 1900Mhz
Band 38 -- 2600Mhz
Other TDD band…

UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD) 850/1900/2100 MHz or 850/900/1900/2100Mhz/AWS optional
Quad-band EGSM 850/900/1800/1900
CDMA1x/EVDO: 800/1900Mhz or 450Mhz optional

3G TD-SCDMA: 2010~2025MHz/1880~1920MHz

Notes: There are many different band and frequency for 4G LTE. Please confirm the detailed band and frequency with your carriers before order.

Data



Bandwidth

4G LTE
FDD LTE: 100Mbps downlink, 50Mbps uplink;
TDD LTE: 150Mbps downlink, 50Mbps uplink;
DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps;
HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps;
HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps;
HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;
HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;
WCDMA/UMTS: Downlink/Uplink 384 kbps;

EDGE: Downlink 236,8 kbps, Uplink 118 kbps;
GPRS: Downlink 85.6 kbps, Uplink 42.8 kbps;

CDMA1x: Downlink/Uplink 153.6kbps;
CDMA EVDO:
Rev B: 14.7Mbps downlink, 5.4Mbps uplink
Rev A: 3.1Mbps downlink, 2.4Mbps uplink
Rev O: 2.4Mbps downlink, 153.6kbps uplink

3G TD-SCDMA: 2.8Mbps

Notes: the bandwidth is peak value. Real value depends on carrier network support.

Interface



Antenna

50Ω SMA female interface *3, external detachable;
Antenna for Main Cell, MIMO Cell, GPS

Led

Power indicator
Data indicator

UIM/SIM

1.8V/3V

USB

USB 2.0 female

Power



Power supply

DC5V-40V , option is DC5V-50V, typical DC9V1A or 12V1A or 12V2A

Power Consumption

Peak: 700mA@+9VDC
Average: 85mA@+9VDC
Idle: 30mA@+9VDC

Software



OS

Windows;
Mac OS;
Linux;
Other OS with hardware USB port;

At command

Support at command;
Packed with GUI software

Physical



Operating Temperature

Work temperature: -30°C to 70°C option for -30°C to 80°C
Storage temperature: -40°C to 85°C

Humidity

95% Maximum (Non-condensing)

Dimensions

Item (L x B x H): 87mm*50mm*23mm
Packaging (L x B x H): 102*70*23mm
PCBA: 84mm*48mm*20mm

Weight

150g (not including accessories and package)

Others



Warranty

1 Year, can extend up to 5 years

Package Contents

The M300 Series Mobile 4G LTE Modem
USB cable
Power Adapter
Antenna




Applications:

  • Remote Data Monitor and Control
  • CCTV, security surveillance
  • Water, gas and oil flow metering and schedule
  • AMR (automatic meter reading)
  • Power station monitoring and control
  • Remote POS (point of sale) terminals, ATM,
  • Traffic signals monitor and control, Traffic info guidance
  • Oil field, weather forecast, environmental protection, street lamp monitoring and control
  • Early Warning of Mountain Torrent
  • Fleet management
  • Power distribution network supervision
  • Central heating system supervision
  • Weather station data transmission
  • Hydrologic data acquisition
  • Vending machine
  • Telemetry, SCADA
  • Vehicle logistics and diagnostics controlling
  • Parking meter and Taxi Monitor
  • Telecom equipment supervision (Mobile base station, microwave or optical relay station)


Typical Application Diagram


High Speed Mobile Industrial 4G LTE Modem At Command For Remote POS Terminals 0

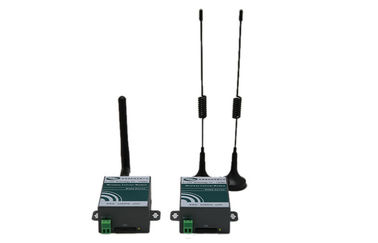

More Pictures Of M300t Mobile 4G LTE Routers

High Speed Mobile Industrial 4G LTE Modem At Command For Remote POS Terminals 1



VersionSupported Data Networks and Maximum Data Speed
3G CDMA and EVDO

14.4Mbps Download, 5.4Mbps Upload,
EVDO Rev B, Rev A, Rev O and CDMA1x

3G WCDMA

7.2Mbps Download, 5.76Mbps Upload,
HSUPA, HSDPA, UMTS, EDGE, GPRS

3G HSPA+

21Mbps Download, 5.76Mbps Upload,
HSPA+, HSUPA, HSDPA, UMTS, EDGE, GPRS

4G LTE (FDD, TDD)

100 or 150Mbps Download, 50Mbps Upload (Will update in near future)
FDD LTE, TD-LTE, DC-HSPA+, back compatible to 3G and 2G
