Online Two - Wire 4 - 20mA TPS Pressure Transmitter For Aeration Tank TPS0803-3 0~1MPa

Online Two - Wire 4 - 20mA TPS Pressure Transmitter For Aeration Tank TPS0803-3 0~1MPa
Online Two - Wire 4 - 20mA TPS Pressure Transmitter For Aeration Tank TPS0803-3 0~1MPa

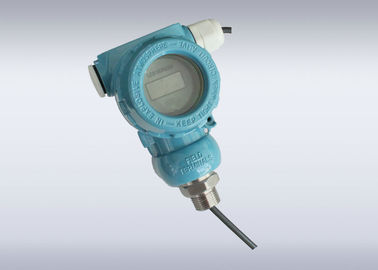

Large Image :  Online Two - Wire 4 - 20mA TPS Pressure Transmitter For Aeration Tank TPS0803-3 0~1MPa

Product Details:
Place of Origin: CHINA
Brand Name: SOP
Model Number: TPS0803-3
Payment & Shipping Terms:
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

wastewater instrumentation

,

biological wastewater treatment



Online Two - Wire 4 - 20mA TPS Pressure Transmitter For Aeration Tank TPS0803-3 0~1MPa


1. Application

        • Water and water treatment

Inlet pipes, outlet pipes and aeration tank etc.



   2. Specifications



Performance characteristics

Measuring Range

0~10MPa

Accuracy

±0.15%FS

Temperature Coefficient

± 0.1% FS

Outputs

Analog Outputs

two-wire 4 ~ 20mA

Power supply

power supply

24VDC ± 10%

Physical parameters

Connection

M20×1.5 External thread

Environmental conditions

Degree of Protection

--the junction box and the header: IP67

--Probe: IP68

Operating Temperature

-40 ~ 85 ℃

Relative Humidity

0 ~ 100%



3. Ordering Information



 (1) Standard Selection



   TPS0803-1              Measuring range:0~100KPa

   TPS0803-2              Measuring range:0~600KPa

   TPS0803-3              Measuring range:0~1MPa

   TPS0803-4              Measuring range:0~10MPa



 (2)Accessories



   FA0300 Pressure transmitter installation accessories, include Joints, guide pipe, ball valve.
