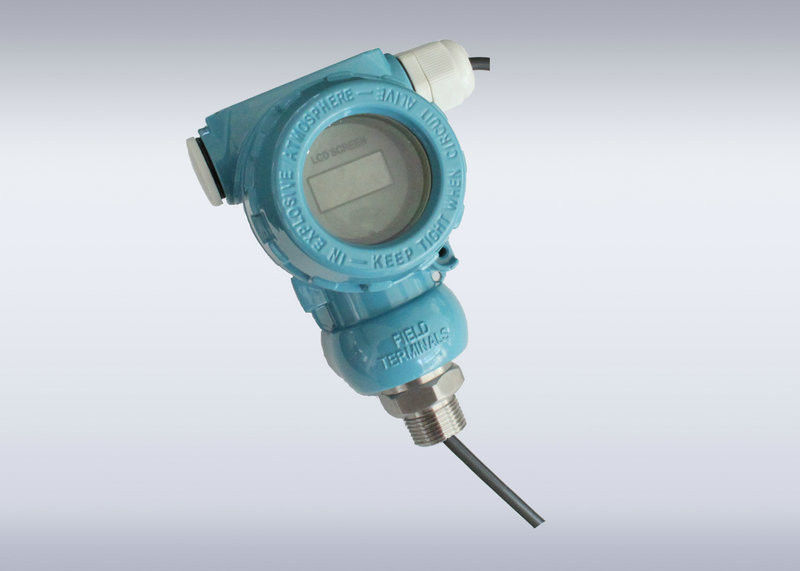

Precision Online Watewater TPS Pressure Transmitter With IP68 Probe TPS0803-2 0 - 600KPa

Precision Online Watewater TPS Pressure Transmitter With IP68 Probe TPS0803-2 0 - 600KPa
Precision Online Watewater TPS Pressure Transmitter With IP68 Probe TPS0803-2 0 - 600KPa

Large Image :  Precision Online Watewater TPS Pressure Transmitter With IP68 Probe TPS0803-2 0 - 600KPa

Product Details:
Place of Origin: CHINA
Brand Name: SOP
Model Number: TPS0803-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Polyurethane foam + carton
Delivery Time: 20days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 100 sets/month
Detailed Product Description
High Light:

biological wastewater treatment

,

wastewater treatment


Precision Online Wastewater TPS Pressure Transmitter With IP68 Probe TPS0803-2 0 - 600KPa



   1. Specifications



Performance characteristics

Measuring Range

0~10MPa

Accuracy

±0.15%FS

Temperature Coefficient

± 0.1% FS

Outputs

Analog Outputs

two-wire 4 ~ 20mA

Power supply

power supply

24VDC ± 10%

Physical parameters

Connection

M20×1.5 External thread

Environmental conditions

Degree of Protection

--the junction box and the header: IP67

--Probe: IP68

Operating Temperature

-40 ~ 85 ℃

Relative Humidity

0 ~ 100%



2. Application

        • Water and water treatment

Inlet pipes, outlet pipes and aeration tank etc.



3. Ordering Information



 (1) Standard Selection



   TPS0803-1              Measuring range:0~100KPa

   TPS0803-2              Measuring range:0~600KPa

   TPS0803-3              Measuring range:0~1MPa

   TPS0803-4              Measuring range:0~10MPa



 (2)Accessories



   FA0300 Pressure transmitter installation accessories, include Joints, guide pipe, ball valve.
