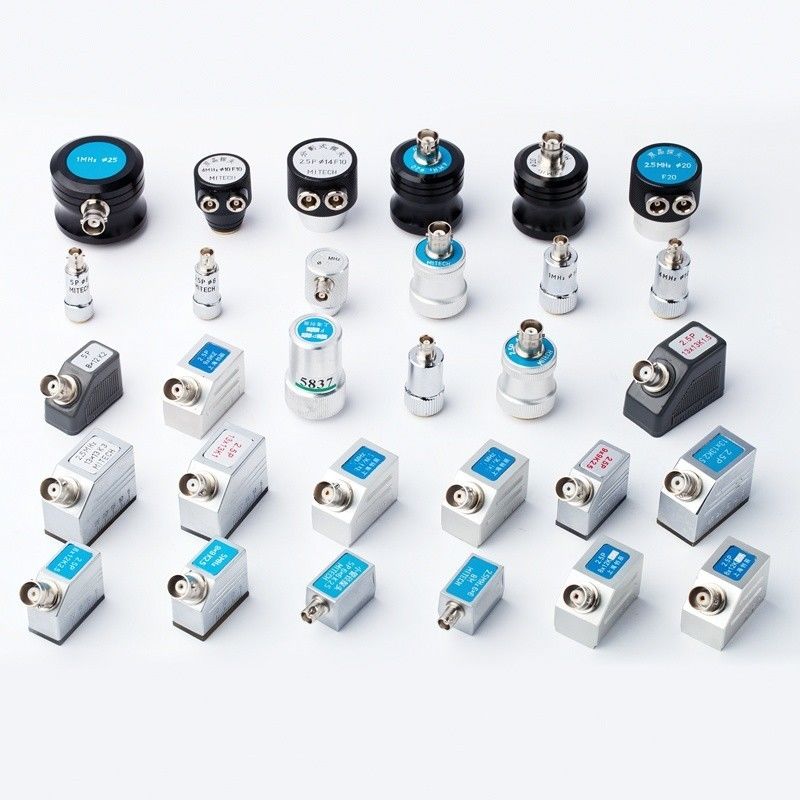

Straight Angle Dual Crystal Ultrasound Probe for Ultrasonic Flaw Detector

Straight Angle Dual Crystal Ultrasound Probe for Ultrasonic Flaw Detector
Straight Angle Dual Crystal Ultrasound Probe for Ultrasonic Flaw Detector Straight Angle Dual Crystal Ultrasound Probe for Ultrasonic Flaw Detector Straight Angle Dual Crystal Ultrasound Probe for Ultrasonic Flaw Detector Straight Angle Dual Crystal Ultrasound Probe for Ultrasonic Flaw Detector Straight Angle Dual Crystal Ultrasound Probe for Ultrasonic Flaw Detector

Large Image :  Straight Angle Dual Crystal Ultrasound Probe for Ultrasonic Flaw Detector

Product Details:
Place of Origin: China
Brand Name: MITECH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export carton box
Delivery Time: have goods in stock
Payment Terms: 100% T/T, Paypal or Wester Union
Detailed Product Description
High Light:

digital ultrasonic flaw detector

,

Ultrasonic flaw meter



Straight Angle Dual Crystal Ultrasound Probe for Ultrasonic Flaw Detector





Probe Type  Specification
Angle Beam Probe  6×6,8×9,10×10
Angle Beam Probe  13×13,14×16,18×18
Angle Beam Probe  20×20,20×22
Angle Beam Probe  30×30
Straight Beam Probe Φ5,Φ8,Φ10,Φ12
Straight Beam Probe Φ14,Φ16,Φ20
Straight Beam Probe Φ25,Φ30
Dual Element Beam Probe  Φ8,Φ10,Φ12
Dual Element Beam Probe  Φ14,Φ20
Dual Element Beam Probe  Φ25,Φ30
Immersion Probe Φ10,Φ14
Immersion Probe Φ10,Φ14
Water filled Probe Φ20,Φ25
Small Angle Probe Φ14,Φ20
Small Angle Probe Φ25,18×18
Dual Element Straight Beam Probe 8×9,10×12
Variable Angle Probe 10×10,10×12
Plate Wave Probe 20×30
Small-diameter Probe 5×5,5×7
Creeping Wave Probe 8×12,6×6
Surface Wave Probe 10X12







































































Note: The probe price mainly depends on the crystal size. And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°,45°,60°,70°,80°and so on. You can chose by youself.
