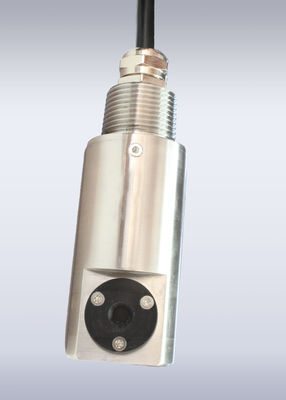

Tengine Online 20.00mg/L Automatic Luminescent Dissolved Oxygen Analyzer / Meter - LDO10AC
1. Specifications
|
Performance characteristics
|
|
Measuring Range
|
0.00~20.00mg/L, or 0.00~20.00ppm, 0 to 200% saturation
|
|
Resolution
|
0.01mg/L,0.01ppm
|
|
Accuracy
|
±0.1ppm,±0.1mg/L
|
|
Sensitivity
|
±0.05% of span
|
|
Response time
|
90%<30s, 95%<90s, at 20ºC
|
|
Temperature compensation
|
automatic (NTC30KΩ)
|
|
Calibration
|
Factory calibrated, also can be calibrated by customer on site
|
|
Display
|
LCD displays data including date, time, measurement value, trendline, etc., English menu
|
|
Data storage
|
Auto-save function(Automatic Data Storage for up to 10 years,), power-off data protection
|
|
Outputs
|
|
Analog Outputs
|
Two isolated 0/4-20 mA output( maximum load 800 ohms), optional selection of 3.8mA or 21mA(under the condition of malfunction)
|
|
Relay outputs
|
3 Relays with programmable hysteresis, alarm or timer function optional
|
|
Relay capacity
|
2A, 250VAC
|
|
Digital Communication
|
MODBUS RS232/RS485,Profibus DP is optional
|
|
Power supply
|
|
AC power supply
|
85~265 VAC, 50Hz/60Hz
|
|
DC power supply
|
24 VDC ±10%
|
|
Physical parameters
|
|

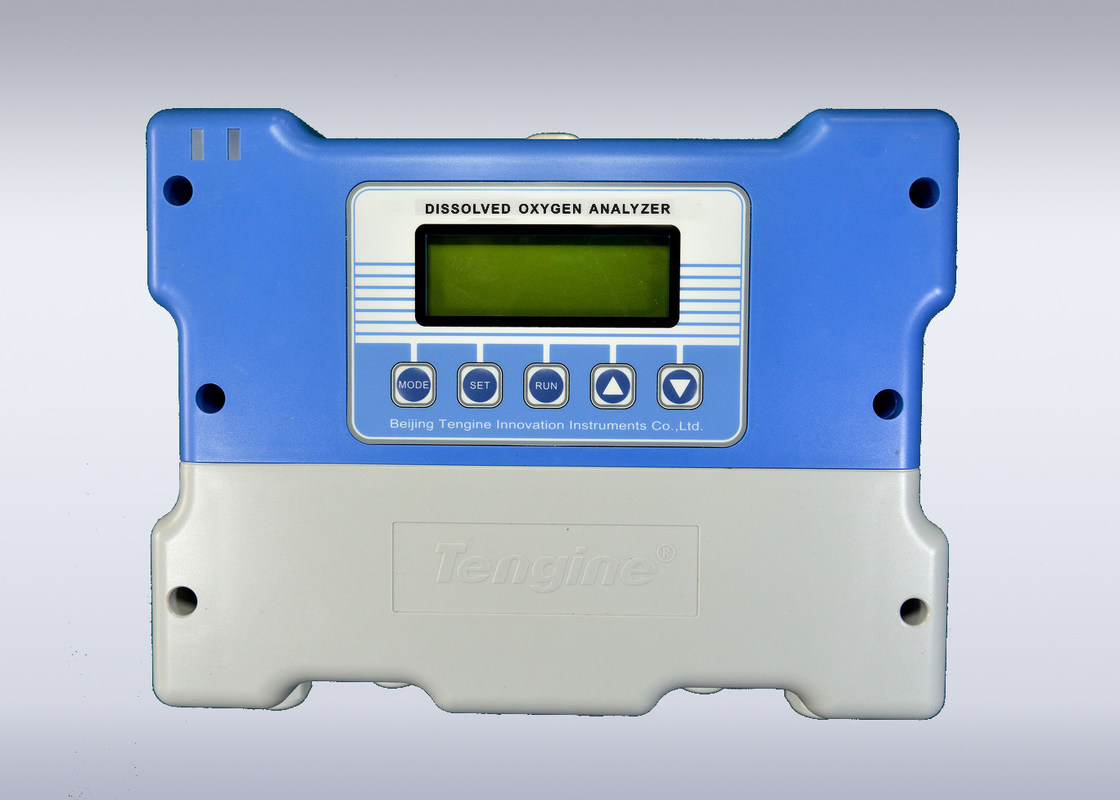

Dimension of Transmitter
|
270×205×100mm(W×H×D)
(10.6*8*3.9 in.)
|
|
Dimension of Sensor
|
Φ45×118mm (1.8*4.5 in.)
|
|
Materials
|
--Transmitter: PC
--Sensor: 316L stainless steel
|
|
Process connection of sensor
|
1 inch cone male thread
|
|
Environmental conditions
|
|
Ingress protection
|
--IP66 (transmitter)
--IP68 (Sensor)
|
|
Operating Temperature
|
--Transmitter: -20~60℃
--Sensor: 0~50℃
|
|
Ambient Relative Humidity
|
0 to 95%, non-condensing
|
|
Operating Pressure
|
≤7.5Bar
|
2. Application
Continuously monitor DO in municipal and industrial wastewater treatment process
• Sewage plant
Aeration tank,collection well,aerobic digestion tank,outlet
• Power plant
Water/wastewater treatment process
• Surface water
Rivers,Lakes/Streams,ocean
• Aquaculture
Sea cages, land-based pond
• Other industries
Food industry,Chemical industry
3. Features and Benefits
• Based on the innovative principle utilizing fluorescence to measure dissolved oxygen, the sensor does not require frequent replacement of membranes and needs low maintenance.
• The Measurement does not consume oxygen, stir or flow is not required, and unaffected by H2S,pH, K+, Na+, Mg2+, Ca2+, NH4+, Al3+, Pb2+, Cd2+, Zn2+, Cr, Fe2+, Fe3+, Mn2+, Cu2+, Ni2+, Co2+, NO3-, SO4-2, S-2,
PO43+, Cl-.
• Digital sensor has good anti-interference performance and high stability, and the cable length is available in hundreds of meters.
• Connections between the sensor(s) and the transmitter are “plug and play”, and multi-channel transmitter operates either 1 or 2 sensors.
• Modbus RS485/RS232 or Profibus DP network connection for data transmission is Optional
• The menu is available in Chinese or English.
• 3 Relays with programmable hysteresis povide high-limit alarm, low-limit alarm or timer.
• A built-in data logger with the capacity to store data for up to 10 years collects measurement data at user selectable intervals.
4. Ordering Information
|
Ordering Information
|
|
Transmitter Selection
|
|
|
Channel number
|
Signal output
|
Power version
|
|
LDO
|
|
|
|
|
|
code
|
meaning
|
code
|
meaning
|
code
|
meaning
|
|
|
1
|
Single channel
|
0
|
4~20mA
|
AC
|
220VAC
|
|
|
2
|
Dual channel
|
1
|
RS 485(Modbus)
|
DC
|
24VDC
|
|
|
|
|
2
|
RS 232(Modbus)
|
|
|
|
|
|
|
3
|
Profibus DP
|
|
|
|
Example:
LDO10AC, single channel dissolved oxygen transmitter, output 4~20mA, 220V AC Power
supply.
|
|
Sensor Selection
|
|
|
Install mode
|
Cable length
|
|
LDO-S
|
|
|
|
|
code
|
meaning
|
code
|
Meaning
|
|
|
0
|
Immersion installation
|
C10
|
10m cable
|
|
|
|
|
CXX
|
XXm cable
|
|
Example:
LDO-S0C10, a LDO sensor, immersion-typed install , with 10m cable.
|
(3) Accessories
FA0000: Immersion mounting bracket, stainless steel
FA0001: Immersion mounting bracket, PVC
FA0010: Insertion mounting bracket, stainless steel, with DN50 stainless steel cut-off ball valve
FA0020: Stainless steel floating ball mounting bracket
FA0021: PVC floating-board mounting bracket
FA0031: Circulation mounting accessory, PVC
FA0900: Stainless steel adapter
FA0901: PVC adapter
FA0800: Instrument protective housing, stainless steel
FA0810: Instrument protective housing, stainless steel, with heater unit
