15m 4 - 20 mA Output Ultrasonic Liquid Level Difference Meter TUL20AC - TUL-S15C10

15m 4 - 20 mA Output Ultrasonic Liquid Level Difference Meter TUL20AC - TUL-S15C10
15m 4 - 20 mA Output Ultrasonic Liquid Level Difference Meter TUL20AC - TUL-S15C10 15m 4 - 20 mA Output Ultrasonic Liquid Level Difference Meter TUL20AC - TUL-S15C10 15m 4 - 20 mA Output Ultrasonic Liquid Level Difference Meter TUL20AC - TUL-S15C10 15m 4 - 20 mA Output Ultrasonic Liquid Level Difference Meter TUL20AC - TUL-S15C10

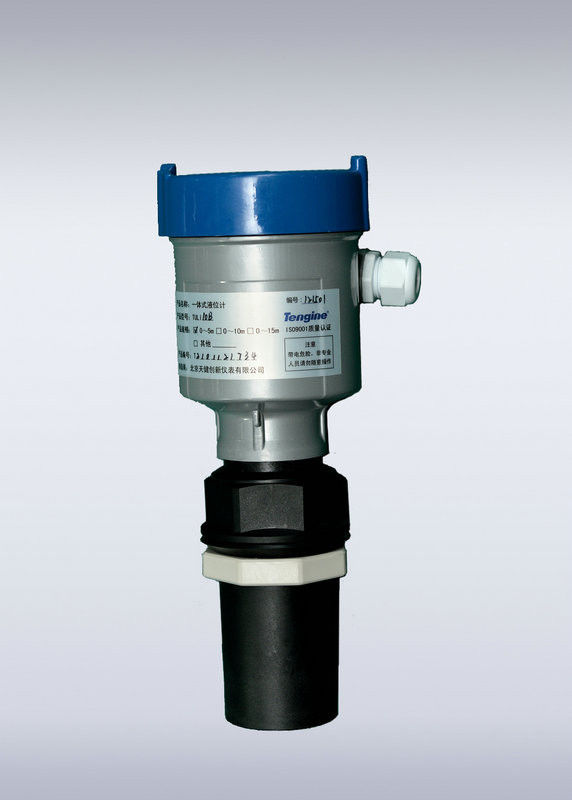

Large Image :  15m 4 - 20 mA Output Ultrasonic Liquid Level Difference Meter TUL20AC - TUL-S15C10

Product Details:
Place of Origin: CHINA
Brand Name: SOP
Model Number: TUL20AC- TUL-S15C10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Polyurethane foam + carton
Delivery Time: 15days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 100 sets/month
Detailed Product Description
High Light:

ultrasound amplitude measurement instrument

,

ultrasonics distance measurement



15m 4 - 20 mA Output Ultrasonic Liquid Level Difference Meter TUL20AC - TUL-S15C10


1. Features and Benefits

• Stable and accurate sensors are adapted for bad working condition

• Advance algorithm can effectively overcome environmental interference, like foam, panting, etc.

• Excellent piezoelectric ceramic materials and acoustic matching technology are efficiently

• Transducer built-in temperature sensor realized real-time automatic temperature compensation

• Program control automatic launch energy adjustment gives consideration to both wide range and small blind zone

• Blind zone also can be artificial setting, and shielding interference signal nearby the sensor

• LCD can display measuring result by figures and graphs

• User-friendly

• 4~20mA isolated current output, Profibus DP interface is alternative

• Control relay output, alarm reply output



2. Application

Water and wastewater treatment: Pump house, water collection well, biochemical reaction basin, sedimentation basin , mud storage pool, etc.

Electric power, mine: Ash slurry pond, coal slurry pond, water treatment




3. Specifications



Performance characteristics

Measuring Range

0~5m, or 0~10m, 0~15

Blind Zone

0.3m, 0.4m, 0.6m

Beam Angle

Resolution

0.001m

Accuracy

±0.2% FS

Stability

0.1% accuracy in 12 months

Temperature Compensation

Automatic Temperature Compensation (ATC)

Calibration

Factory calibrated, also can be calibrated by customer on site

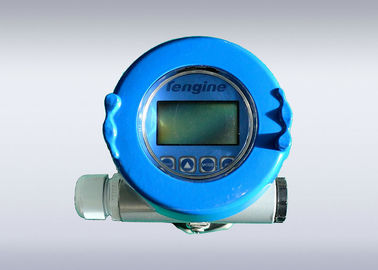

Display

LCD displays data including date, time, and measurement value

Outputs

Analog Outputs

4-20 mA output( maximum 500 ohms)

Relay outputs

4 Relays

Relay capacity

2A, 250VAC

Digital Communication

MODBUS RS232/RS485,Profibus DP is optional

Power supply

AC power supply

220 VAC±10%, 50Hz

DC power supply

24 VDC ±10%

Physical parameters

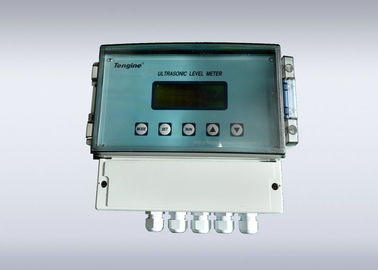

Dimensions of Level Meter Transmitter

182×157×121mm

Dimensions of Level Difference Meter Transmitter

231×185×119mm

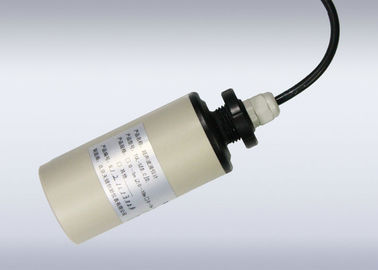

Dimensions of Sensor

Φ63×130mm, Φ76×170mm

Materials

--Transmitter: PC

--Sensor: Polyester

Process connection of sensor

M20×1.5, male thread

Length of Sensor’s Cable

10m, Shielded cable (other length could be ordered)

Environmental conditions

Ingress protection

--IP65 (Transmitter)

--IP68 (Sensor)

Operating Temperature

--Transmitter: -20 ~ 60℃

--Sensor: -40 ~ 80℃

Operating Pressure

≤10Bar





4. Ordering Information



Ordering Information

Transmitter Selection



Channel number

Signal output

Power version

TUL









code

meaning

code

meaning

code

meaning



1

Level meter

0

4~20mA

AC

220VAC



2

Level difference meter

1

RS 485(Modbus)

DC

24VDC







2

Profibus DP





Example

TUL 10AC, refer to ultrasonic level meter transmitter, output 4~20mA, 220V AC Power Supply.

Sensor Selection



Measuring range

Cable length

TUL-S







code

meaning

code

Meaning



05

5m range

C10

10m cable



10

10m range

CXX

XXm cable



15

15m range





Example

TUL-SO5C10, refer to 5m range level meter sensors, with 10m cable.

 (3) Accessories

FA0100: Wall mount bracket, stainless steel

FA0101: Wall mount bracket, carbon steel

FA0800: Instrument protective housing, stainless steel

FA0810: Instrument protective housing, stainless steel, with heater unit
