Transducer Models Ultrasonic Thickness Gauge TG3000 For Metals , Plastic , Ceramics

Name: Transducer Models Ultrasonic Thickness Gauge TG3000 For Metals , Plastic , Ceramics
Brand: HUATEC
SKU: TG3000
Rating: 4.6 (135 reviews)

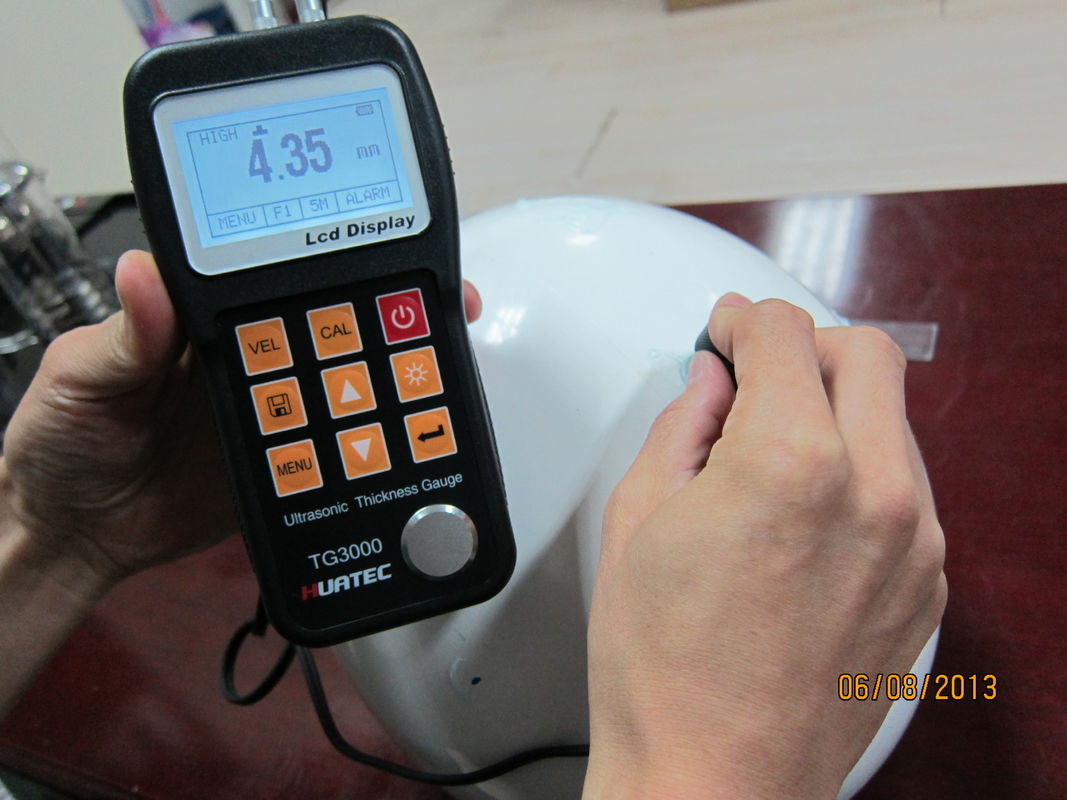

Large Image : Transducer Models Ultrasonic Thickness Gauge TG3000 For Metals , Plastic , Ceramics

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	TG3000

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Display:	4.5 Digits LCD With EL Backlight	Measuring Range:	0.75～300mm (in Steel)
Sound Velocity:	1000~9999 M/s	Resolution:	0.1mm
Accuracy:	±(0.5%Thickness+0.04)mm, Depends On Materials And Conditions	Size:	150×74×32 Mm
Weight:	245g
High Light:	portable ultrasonic thickness gauge , digital ultrasonic thickness gauge

Ultrasonic Testing Thickness Measurement Ultrasonic Steel Thickness Gauge Ultrasonic Thickness Gauge TG3000

Main Features

1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

2.Transducer models are available for special application, including for coarse grain material and high temperature applications.

3.Two-Point Calibration function.

4.Two work modes: Single point mode and Scan mode.

5.Coupling status indicator showing the coupling status.

6.Auto sleep and auto power off function to conserve battery life.

Specifications

1.Display: 4.5 digits LCD with EL backlight.

2.Measuring Range:0.75～300mm (in Steel).

3.Sound Velocity Range: 1000~9999 m/s.

4.Resolution: 0.1mm.

5.Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions

6.Units:Metric/Imperial unit selectable.

7.Four measurements readings per second for single point measurement, and ten per second for Scan Mode.

8.Memory for up to 20 files (up to 99 values for each file) of stored values.

9.Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).

10.Outline dimensions:150×74×32 mm. Weight:245g

Configuration

	No.	Item	Quantity	Remarks
Standard Configuration	1	Main body	1
	2	Transducer	1	Model: N05/90°
	3	Couplant	1
	4	Instrument Case	1
	5	Operating Manual	1
	6	Alkaline battery	2	AA size
Optional Configuration	7	Transducer: N02
	8	Transducer: N07
	9	Transducer: HT5

Probe optional

Model	Freq MHZ	Diam mm	Measuring Range	Lower limit	Description
N02	2	22	3.0mm～300.0mm(In Steel)	20	for thick, highly attenuating, or highly scattering materials
N05	5	10	1.2mm～230.0mm(In Steel)	Φ20mm×3.0mm	Normal Measurement
N05 /90°	5	10	1.2mm～230.0mm(In Steel)	Φ20mm×3.0mm	Normal Measurement
N07	7	6	0.75mm～80.0mm (In Steel)	Φ15mm×2.0mm	For thin pipe wall or small curvature pipe wall measurement
HT5	5	14	3～200mm (In Steel)	30	For high temperature (lower than 300℃) measurement.
