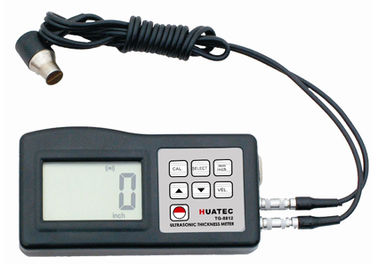

0.1mm 500-9000m/s Ultrasonic Thickness Gauge TG8812 For Thickness Equipment RS232/bluetooth

Name: 0.1mm 500-9000m/s Ultrasonic Thickness Gauge TG8812 For Thickness Equipment RS232/bluetooth
Brand: HUATEC
SKU: TG8812
Rating: 5 (173 reviews)

Large Image : 0.1mm 500-9000m/s Ultrasonic Thickness Gauge TG8812 For Thickness Equipment RS232/bluetooth

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	TG8812

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Operating Principle:	ULTRASONIC	Measuring Range:	1.2-225mm, 0.05-9inch
Sound Velocity:	500-9000m/s	Display:	4digits LCD With EL Backlight
Dimensions:	120x62x30mm	Weight:	164g
High Light:	Through coating thickness gauge , digital ultrasonic thickness gauge

Application:

TG8812 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.

Description:

Measuring range (metric/imperial): 1.2-225mm, 0.05-9inch

Operating principle: ULTRASONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included
Display: 4digits LCD with EL backlight

Resolution: 0.1mm

Accuracy: ±(0.5%H+0.1)

Power supply: 4x1.5V AA(UM-3)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 120x62x30mm

Weight: 164g (not including battery)

Standard Delivery:

Main unit 1
5M Φ10 Transducer 1
Couplant 1
Carrying case 1
Instruction manual 1

Optional Accessories

1. 6M Φ6mm thin material probe:

measuring range (steel): 1-50mm Operating temperature:-10-+60℃

2. 5M Φ12mm high temperature probe:

measuring range (steel):4-100mm Operating temperature:-10-+300℃

3. Cable and Software for RS232C interface

Packaging and Shipping

Packaging: Standard export package, wooden case

Delivery: 5-10 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.

Our Services:

Warranty: One year

After sales service and maintenance: Lifelong
