Dual Probe Ultrasonic Thickness Gauge Portable , 0.8mm - 225mm Pulse Echo

Name: Dual Probe Ultrasonic Thickness Gauge Portable , 0.8mm - 225mm Pulse Echo
Brand: SADT
SKU: SA40EZ
Price: 200 USD
Availability: InStock
Rating: 4.9 (167 reviews)

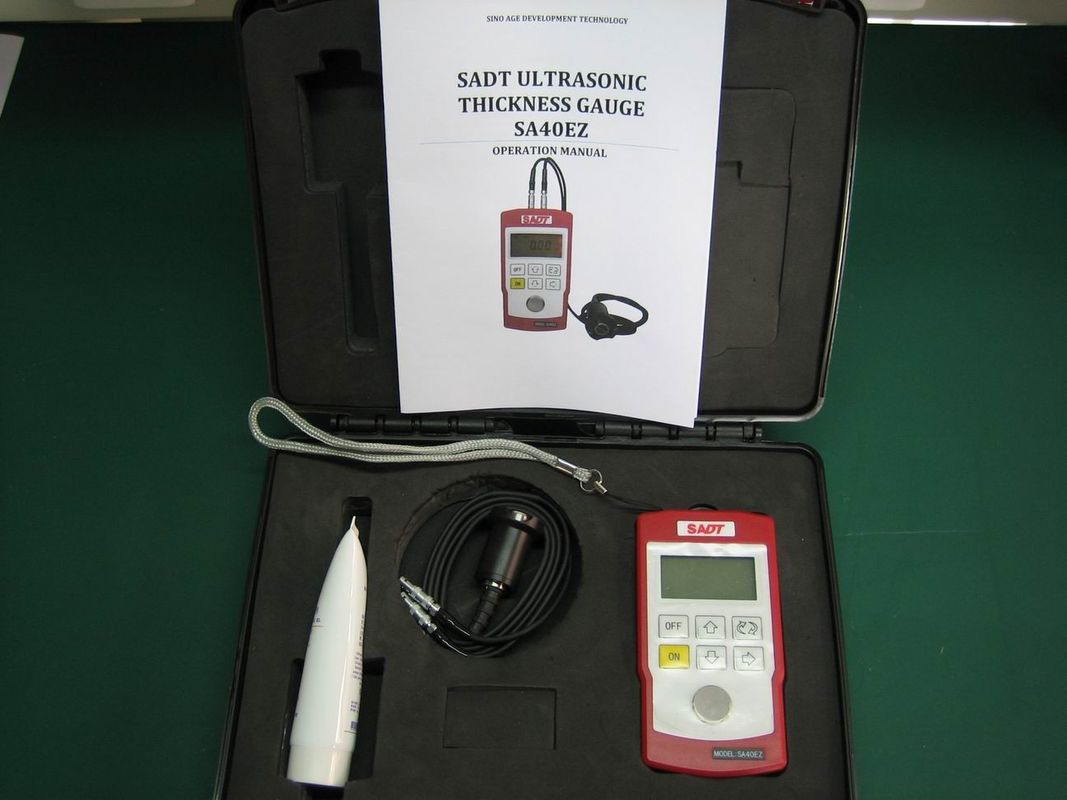

Large Image : Dual Probe Ultrasonic Thickness Gauge Portable , 0.8mm - 225mm Pulse Echo

Product Details:

Place of Origin:	Beijing
Brand Name:	SADT
Certification:	ＣＥ　ＩＳＯ９００１
Model Number:	SA40EZ

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD200-400/pcs
Packaging Details:	Standard package
Delivery Time:	Within 3 days after receipt of advanced payment
Payment Terms:	T/T in advance
Supply Ability:	50pcs/week

Contact Now

Detailed Product Description

Key Words:	Ultrasonic Thickness Gauge	Measuring Range:	0.7~300.0mm
Velocity:	1000~9999m/s	Language:	English
Accuracy:	0.7~99.9mm ±(0.5%+0.1)mm 100.0~300.0mm ±(1%+1)mm	Working Environment:	0~40oC, 20~90%RH
Power Supply:	AA Battery X 2
High Light:	Through coating thickness gauge , portable ultrasonic thickness gauge

Dual Probe Ultrasonic Thickness Gauge Portable , 0.8mm - 225mm Pulse Echo

SA40EZ is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our

intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel,aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.

Specifications:

Display	4 digits LCD
Backlight	Yes
Measuring range	0.70~300.0mm in steel with PT-5 probe
Resolution	0.1mm
Accuracy	0.7~99.9mm ±(0.5%+0.1)mm 100.0~300.0mm ±(1%+1)mm
Unit	mm
Velocity	1000~9999m/s
Coupling indicator	Yes
Calibration	Auto
Memory	400 data
Low battery indicator	Yes
Working environment	0~40°C, 20~90%RH
Power off	Auto
Power supply	AA battery x 2
Dimension (mm)	127x66x29
Net weight (g)	240
Standard probe	PT-5
Optional probes	XT-5 / GT-5 / CT2.5

Optional Probes

PT-5     5MHZ      Dia.Φ10mm      For standard applications
XT-5     5MHZ      Dia.Φ7mm    　 For tubes with small diameter
GT-5    5MHZ      Dia.Φ12mm   　For high temperature up to 400℃
CT-2.5 2.5MHZ   Dia.Φ12mm   　For unfavorable attenuation
