Ultrasonic wall Thickness Gauge Measuring Metallic Nonmetallic

Name: Ultrasonic wall Thickness Gauge Measuring Metallic Nonmetallic
Brand: SADT
SKU: SA40
Price: 200 USD
Availability: InStock
Rating: 4.8 (170 reviews)

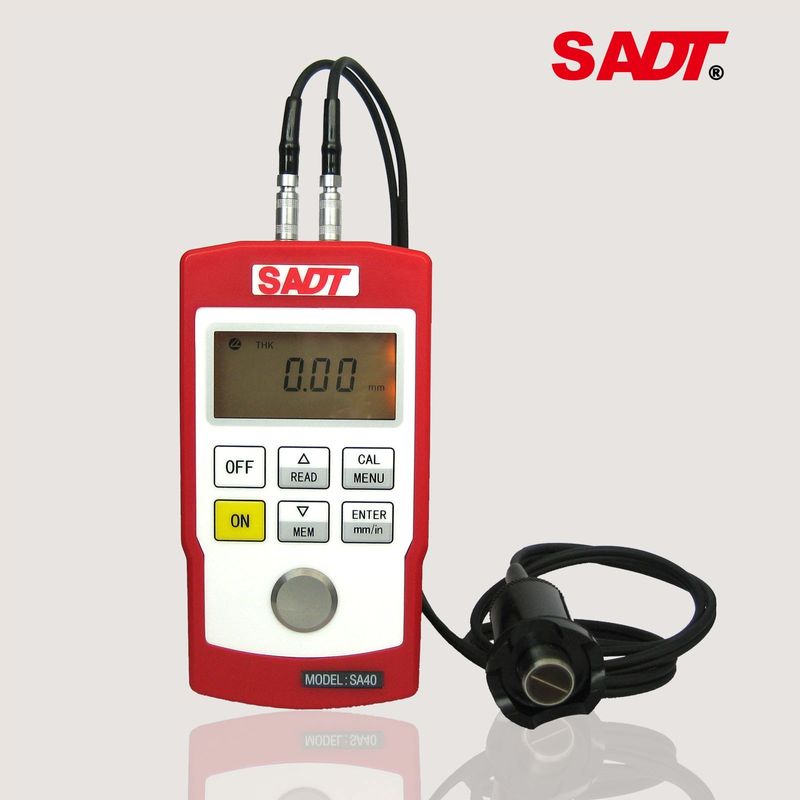

Large Image : Ultrasonic wall Thickness Gauge Measuring Metallic Nonmetallic

Product Details:

Place of Origin:	China
Brand Name:	SADT
Certification:	CE,ISO 9001
Model Number:	SA40

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD200-400/Pcs
Packaging Details:	Delivery package: carton
Delivery Time:	within 3 workdays after receipt of your advanced payment
Payment Terms:	T/T, Western Union
Supply Ability:	500 Piece/Pieces per Month

Contact Now

Detailed Product Description

Display:	4 Digits LCD	Measuring Range:	0.8~300.0mm In Steel With PT-5 Probe
Velocity:	1000~9999m/s	Dimension (mm):	127x66x29
Net Weight (g):	240	Color:	Red/ Blue/ Black
Resolution:	0.01mm@0.70~99.99mm, 0.1mm@100.0~300.0mm	Working Environment:	0~40oC, 20~90%RH
Power Supply:	AA Battery X 2	Warranty:	1 Year
Probe:	4 Different Probe For Choice
High Light:	Through coating thickness gauge , portable ultrasonic thickness gauge

Digital Ultrasonic Thickness Gauge SA40 Compatible for different probes

SA40 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.

Details:

Speciafication:

Model	SA40
Display	4 digits LCD
Backlight	Yes
Measuring range	0.7~300.0mm in steel with PT-5 probe
Resolution	0.01mm 0.70~99.99mm, 0.1mm 100.0~300.0mm
Accuracy	0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)mm 100.0~300.0 ±(1%+0.1)mm
Unit	mm/inch
Velocity	1000~9999m/s
Coupling indicator	Yes
Calibration	Auto
Memory	400 data
Low battery indicator	Yes
Working environment	0~40oC, 20~90%RH
Power off	Auto
Power supply	AA battery x 2
Dimension (mm)	127x66x29
Net weight (g)	240
Standard probe	PT-5
Optional probes	XT-5 / GT-5 / CT2.5

Optional Probes:

Probe	Frequency	Diameter	Measuring Range	Application
PT-5 (Standard)	5MHz	Ø10mm	0.8~300.0mm	For standard a p p l i cations
X T-5 (Optional)	5MHz	Ø7mm	0.8~30mm	For tubes with small diameter
GT-5 (Optional)	5MHz	Ø12mm	3.0~100mm	Fo r h i g h temperature u p to 400ºC
CT-2.5 (Optional)	2.5MHz	Ø12mm	3.0~250mm	For unfavorable at tenuation c ast
