Electric 5000 LB OffRoad Car Trailer Winch / Winches

China Electric 5000 LB OffRoad Car Trailer Winch / Winches supplier
Electric 5000 LB OffRoad Car Trailer Winch / Winches supplier Electric 5000 LB OffRoad Car Trailer Winch / Winches supplier Electric 5000 LB OffRoad Car Trailer Winch / Winches supplier

Large Image :  Electric 5000 LB OffRoad Car Trailer Winch / Winches

Product Details:

Place of Origin: China Mainland
Brand Name: Huge Lift
Certification: CE, ISO9001:2008
Model Number: P5000

Payment & Shipping Terms:

Minimum Order Quantity: 25 Unit/Units
Packaging Details: Thick Carton
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 10000 Unit/Units per Month
Contact Now
Detailed Product Description
Insurance: Product Liability Insurance Covered Worldwide Rated Pulling Capacity: 5000lbs

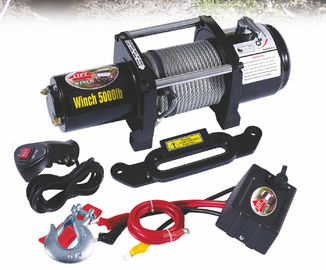

Electric 5000 LB OffRoad Car Trailer Winch / Winches



The 5000lbs off-road vehicle winch is one of our main products. It's designed with 12V 1.2KW/1.6HP permanent magnet motor. The smart shape and lower power make it suitable for the entry-level off-road vehicles.The whole body of the product is coated with black lacquer.Matched with the silvery wire rope, the product has a paticularly beautiful appearance.Through years of improvement on technology, the performance of the product is quite stable.

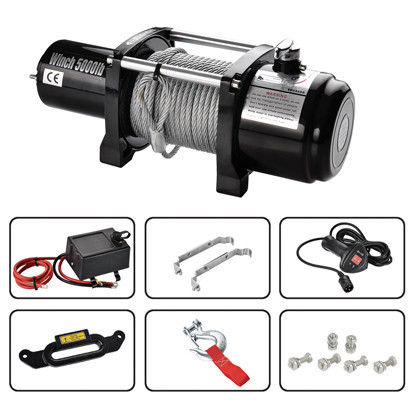

The standard configuration includes a wired remote switch, a control box assembly, hawse fairlead and hook.Now off you go for your off-road trip!



Specification:

  • Rated line pull:5000LBS(2268kgs) single line
  • Motor: 1.2kw/1.6hp (12V), permanent magnet
  • Gear train: 3 Stage Planetary
  • Gear reduction ratio: 218:1
  • Clutch: Sliding Ring Gear
  • Braking Action: Automatic In-The-Drum
  • Drum Size: Φ2.5"x5.5 (Φ63.5x140m)
  • Cable: 9/32" of 66ft diameter (Φ6.4mmx20m)
  • Remote Control: Included
  • Battery: Recommended:650CCA minimum for winching
  • Battery Leads: 2 gauge, 72"(183mm)
  • Finish: Black powder coat
  • Overall Dimension: 17.9"x6.1"x8.6 (456mmx156mmx215mm)
  • Mounting Bolt Pattern: 166.4mmx114.3

Electric 5000 LB OffRoad Car Trailer Winch / Winches
Package:

  1. Weight: N.W. 26kgs G.W. 28Kgs
  2. Packing size: 49x19x34.5cm   1PC/CTN
