Electric 5000 LB OffRoad Car Trailer Winch / Winches

Large Image : Electric 5000 LB OffRoad Car Trailer Winch / Winches

Product Details:

Place of Origin:	China Mainland
Brand Name:	Huge Lift
Certification:	CE, ISO9001:2008
Model Number:	P5000

Payment & Shipping Terms:

Minimum Order Quantity:	25 Unit/Units
Packaging Details:	Thick Carton
Delivery Time:	20 days
Payment Terms:	T/T, L/C, Western Union,paypal
Supply Ability:	10000 Unit/Units per Month

Contact Now

Detailed Product Description

Insurance:

Product Liability Insurance Covered Worldwide

Rated Pulling Capacity:

5000lbs

Highlight:

electric winch for car trailer

car hauler trailer winch

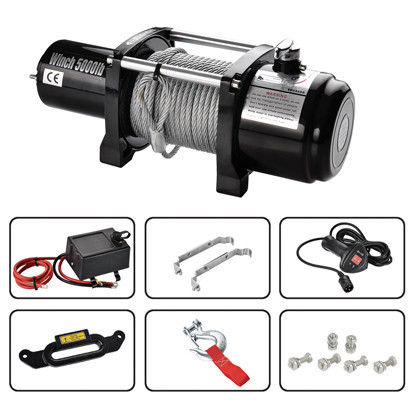

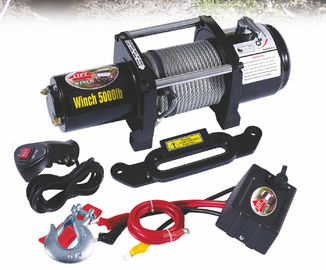

Electric 5000 LB OffRoad Car Trailer Winch / Winches

The 5000lbs off-road vehicle winch is one of our main products. It's designed with 12V 1.2KW/1.6HP permanent magnet motor. The smart shape and lower power make it suitable for the entry-level off-road vehicles.The whole body of the product is coated with black lacquer.Matched with the silvery wire rope, the product has a paticularly beautiful appearance.Through years of improvement on technology, the performance of the product is quite stable.

The standard configuration includes a wired remote switch, a control box assembly, hawse fairlead and hook.Now off you go for your off-road trip!

Specification:

Rated line pull:5000LBS(2268kgs) single line
Motor: 1.2kw/1.6hp (12V), permanent magnet
Gear train: 3 Stage Planetary
Gear reduction ratio: 218:1
Clutch: Sliding Ring Gear
Braking Action: Automatic In-The-Drum
Drum Size: Φ2.5"x5.5 (Φ63.5x140m)
Cable: 9/32" of 66ft diameter (Φ6.4mmx20m)
Remote Control: Included
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 gauge, 72"(183mm)
Finish: Black powder coat
Overall Dimension: 17.9"x6.1"x8.6 (456mmx156mmx215mm)
Mounting Bolt Pattern: 166.4mmx114.3

Package:

Weight: N.W. 26kgs G.W. 28Kgs
Packing size: 49x19x34.5cm 1PC/CTN
