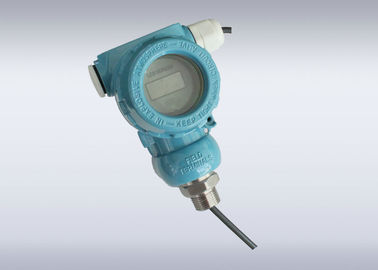

Tengine TPS Pressure Transmitter For Water and Water Treatment TPS0803-4 0~10MPa
1. Application
• Water and water treatment
Inlet pipes, outlet pipes and aeration tank etc.
2. Specifications
|
Performance characteristics |
|
|
Measuring Range |
0～10MPa |
|
Accuracy |
±0.15%FS |
|
Temperature Coefficient |
± 0.1% FS |
|
Outputs |
|
|
Analog Outputs |
two-wire 4 ~ 20mA |
|
Power supply |
|
|
power supply |
24VDC ± 10% |
|
Physical parameters |
|
|
Connection |
M20×1.5 External thread |
|
Environmental conditions |
|
|
Degree of Protection |
--the junction box and the header: IP67 --Probe: IP68 |
|
Operating Temperature |
-40 ~ 85 ℃ |
|
Relative Humidity |
0 ~ 100% |
3. Ordering Information
(1) Standard Selection
TPS0803-1 Measuring range:0~100KPa
TPS0803-2 Measuring range:0~600KPa
TPS0803-3 Measuring range:0~1MPa
TPS0803-4 Measuring range:0~10MPa
(2)Accessories
FA0300 Pressure transmitter installation accessories, include Joints, guide pipe, ball valve.
