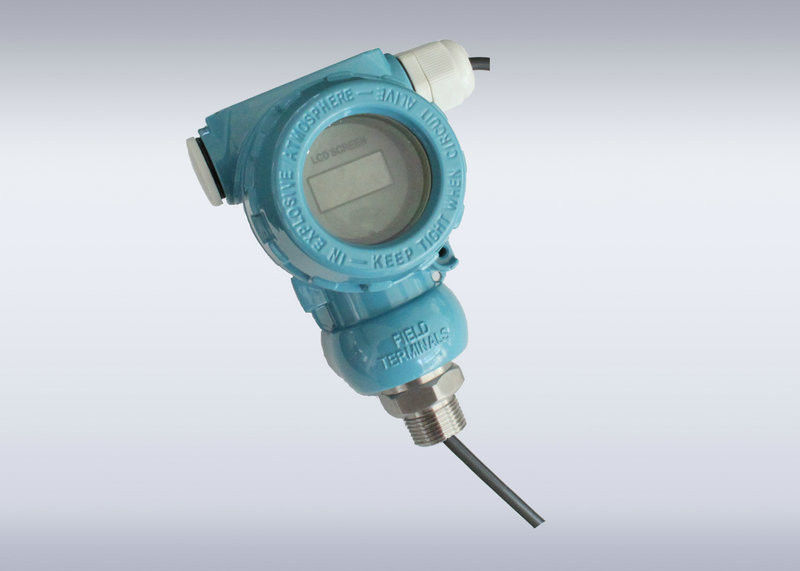

4 - 20mA TPS Pressure Transmitter For Wastewater Instruments TPS0803-1 0 - 100KPa

Large Image : 4 - 20mA TPS Pressure Transmitter For Wastewater Instruments TPS0803-1 0 - 100KPa

Product Details:

Place of Origin:	CHINA
Brand Name:	SOP
Model Number:	TPS0803-1

Payment & Shipping Terms:

Payment Terms:	L/C,T/T,Paypal

Contact Now

Detailed Product Description

Highlight:

wastewater instrumentation

biological wastewater treatment

4 - 20mA TPS Pressure Transmitter For Wastewater Instruments TPS0803-1 0 - 100KPa

1. Application

• Water and water treatment

Inlet pipes, outlet pipes and aeration tank etc.

2. Specifications

Performance characteristics
Measuring Range	0～10MPa
Accuracy	±0.15%FS
Temperature Coefficient	± 0.1% FS
Outputs
Analog Outputs	two-wire 4 ~ 20mA
Power supply
power supply	24VDC ± 10%
Physical parameters
Connection	M20×1.5 External thread
Environmental conditions
Degree of Protection	--the junction box and the header: IP67 --Probe: IP68
Operating Temperature	-40 ~ 85 ℃
Relative Humidity	0 ~ 100%

3. Ordering Information

(1) Standard Selection

TPS0803-1 Measuring range:0~100KPa

TPS0803-2 Measuring range:0~600KPa

TPS0803-3 Measuring range:0~1MPa

TPS0803-4 Measuring range:0~10MPa

(2)Accessories

FA0300 Pressure transmitter installation accessories, include Joints, guide pipe, ball valve.
