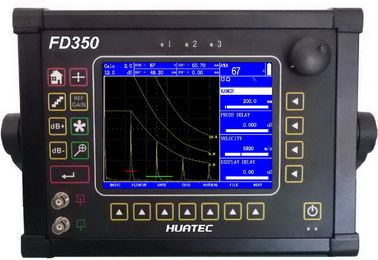

Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350

Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350
Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350

Large Image :  Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350

Product Details:
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FD350
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Frequency: 0.2 – 20 MHz Detection Range: 0 - 10000 Mm
Sound Velocity: 100 – 20000 M/s Working Methods: Pulse Echo, Dual, And Thru-transmission
Gain Adjustment: (0-110) DB, Step:0.2, 0.5, 1.0, 2.0, 6.0, 12.0, User Definable(0-24), And Locked Power: 220VAC, 110VDC 60/50Hz
Net Weight: 5.5 Lbs. (2.5 Kg) Li-Ion Battery; 4.8 Lbs. (2.2 Kg) Without B Size: 11.9”W X 9.9” H X 2” D (302 X 251 X 51 Mm)
High Light:

digital ultrasonic flaw detector

,

ndt flaw detectors

Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350



Digital Portable Ultrasonic Flaw Detector, ultrasonic testing equopment, UT flaw detector, ultrasonic detector FD350



Product Info:
·Automated calibration Automated gain
·Automated make video of test process and play
·AWS D1.1, DAC/TCG, JIS DAC/TCG, AVG, DGS, A scan & B scan
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel
·Small size, light weigh model

Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 0  Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 1  Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 2
                          DAC                                                      DGS                                                              TGS

Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 3  Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 4  Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 5
                        B Scan                                              B Scan Thickness                                            LEG ECHO

Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 6  Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 7  Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 8
                  LEG GRID                                                           REF                                                            RF

Main Technical Index:


FUNCTIONS

PARAMETERS

Frequency

0.2 – 20 MHz

Detection range

0 - 10000 mm

Sound velocity

100 – 20000 m/s

Working methods

Pulse echo, dual, and thru-transmission

Pulse Shift

-5 to 3400 μs in steel (dependent on range)

Zero point of the probe

0 – 100 μs

Gain adjustment

(0-110) dB, Step:0.2, 0.5, 1.0, 2.0, 6.0, 12.0, user definable(0-24), and locked

Vertical linear error

≤3%

Horizontal linear error

≤0.1%

Dynamic range

≥40dB

Sensitivity surplus

≥60dB (200mmdepth , Ф2 flat- bottomed hole )

Communications

Connect with computer through RS232 or USB

The average electric yawp

≤20%

Color TFT LCD

5.25”x 3.875” (133 x 98 mm), 640 x 480 pixels VGA, color

Gate alarm

Wave-entering gate / wave-losing gate sound alarm, width, height, location, continuous-tuning

Time of battery working

7 hours

Temperature of working

-10°C-60°C

Power

220VAC, 110VDC

Appearance size

11.9”W x 9.9” H x 2” D (302 x 251 x 51 mm)

Net weight

5.5 lbs. (2.5 kg) Li-Ion Battery; 4.8 lbs. (2.2 kg) without battery

Standard Delivery of Digital Portable Ultrasonic Flaw Detector FD350:
Portable ultrasonic flaw detector main unit
Operating manual
Straight Beam probe
Angle-beam probe(60 degree)
Probe cable
PC software CD
Serial PC cable
AC adapter/charger
Carrying case

Additional Accessories:
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.
