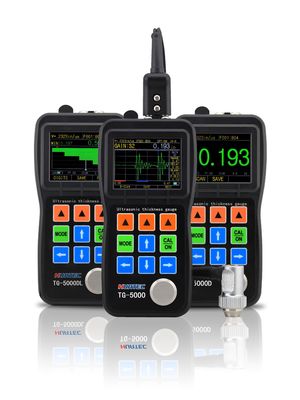

Live A-Scan, Time-based B-Scan, Thru Painting TG5000 Series Ultrasonic Thickness Gauge

Large Image : Live A-Scan, Time-based B-Scan, Thru Painting TG5000 Series Ultrasonic Thickness Gauge

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	TG-5000 TG/5000D TG-5000DL

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Scan Mode:	A-Scan / Time-based B-Scan	Display:	Color 320x240 Pixels Display
Memory:	100,000 Readings And 1000 Waveform	Measuring Range:	0.50mm To 508mm(0.02" To 20.00"), Depending On Material, Probe And Surface Condition
Rectify Mode:	RF+, RF-, HALF+, HALF-, FULL
High Light:	Through coating thickness gauge , portable ultrasonic thickness gauge

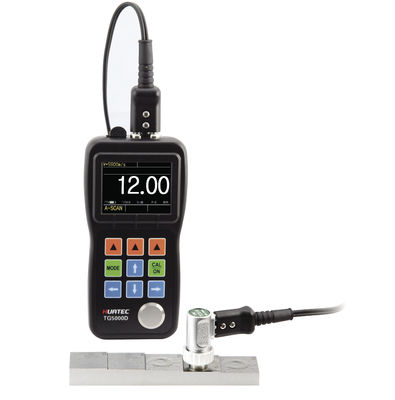

Live A-Scan / Time-based B-Scan Paint Thickness Gauge TG5000 Series Ultrasonic

Features:
Color 320x240 Pixels Display
LiveSimultaneous Color A-Scan and Thickness Display
Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes
Time-based B-Scan Display
Echo-Echo Mode(Thru Paint & Coatings)
Stores 100,000 Readings and 1000 waveform

Specifications

Feature	TG-5000	TG-5000D	TG-5000DL	Data Logger Option
Color Display
Live A-Scan
Time-based B-Scan
Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes
Echo-Echo Mode (Thru Paint & Coatings)	X
Data Logger	X	X
Data View Software	X	X

Instrument Specifications
Display Type	2.4" color OLED, 320X240 pixels, contrast 10,000:1
Operating Principle	Pulse echo with dual element transducers
Measuring Range	0.50mm to 508mm(0.02" to 20.00"), depending on material, probe and surface condition
Through Coating Function	Coating thickness:0-8mm;Measuring range:3-50mm
MeasuringResolution	Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
Units	Inch or Millimeter
Rectify Modes	RF+, RF-, HALF+, HALF-, FULL
Display Mode	Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction	Automatic
Update Rate	Selectable 4Hz, 8Hz, 16Hz
MaterialVelocity Range	500 to 9999m/s (0.0197 to 0.3937in/us)
Languages	English
Alarm Settings	Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm
Power Requirements	2 AA size batteries
Operating Time	Approximately 40 hours
Instrument Shut-off	Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity
Operating Temperature	-10°C to +50°C (+10°F to +120°F)
Size	153mm X 76mm X 37mm(H X W X D)
Weight	280g including batteries

Data Logger Option Features
Capacity	100,000 readings,1000 waveforms,400 files
File Structure	Grid file
Rows X Columns	21 X 12
CommunicationPort	USB 2.0 (Full Speed ) port
Software	Data View PC software

TG-5000 Series Probe/Transducer Specifications
Model	PT08	TC510	PT12	ZT12	PT06	PT04	GT12
Type	TG-5000 Standard	TG-5000D/DL Standard	Standard	Cast iron	Small tube	Fingertip	High-Temperature
Frequency	5MHz	5MHz	5MHz	2MHz	7.5MHz	10MHz	5MHz
Contact Diameter	11mm	13.5mm	13.5mm	17mm	8mm	6mm	15mm
MeasurementRange	0.8 to 100.0mm	1.2 to 200.0mm	1.0 to 200.0mm	4.0 to 508.0mm	0.8 to 30.0mm	0.7 to 12.0mm	4.0 to 80.0mm
TemperatureRange	-10 to 70℃	-10 to 70℃	-10 to 70℃	-10 to 70℃	-10 to 70℃	-10 to 70℃	-20 to 300℃

Standard Configurations
Thickness Gauge	1
Probe	1
Alkaline Battery	2
Couplant	1
Carrying Case	1
Operation Manual	1
USB Cable	1(Only TG-5000DL)
Software CD	1(Only TG-5000DL)

Live A-Scan, Time-based B-Scan, Thru Painting TG5000 Series Ultrasonic Thickness Gauge 0

Optional Configurations
High-temperature Probe	Cast Iron Probe
Small Probe	Mini Probe
Probe Cable	Stepped Calibration Block
Rubber Sheath	Storage Option(Only TG-5000DL)
