UHZ-511 Marine magnetic fload level indicators, Magnetic Level Gauges GB2506-89

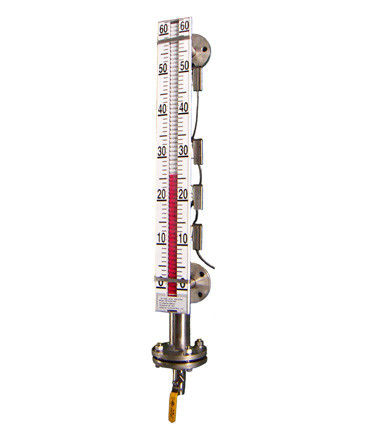

Large Image : UHZ-511 Marine magnetic fload level indicators, Magnetic Level Gauges GB2506-89

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	WRET-01

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	contact
Packaging Details:	Carton box
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	1000PCS / month

Contact Now

Detailed Product Description

Highlight:

s type thermocouples

high temperature thermocouple

UHZ-511 Marine magnetic fload level indicators, Magnetic Level Gauges GB2506-89

UHZ-511type magnetic float type level gauge can be used to measure and control level of the tank in ship and other industrial instrument.

MAIN TECHNICAL SPECIFICATION:

Model	UHZ-511Z□/-□-□□-□
Indication accuracy	±20mm
Nominal length	500～6000mm
Medium gravity	≥0.5
Working pressure	1.0(1.6,2.5)Mpa
Mediun temperature	≤120℃
Connection flange	GB2506-89 DN20 PN1.6
Alarm switch	AC220V 2A(Option)
Output signal	DC24V 4～20mA(Option)
Matched valve	a,Shut-off valve b,Self-close valve c,Ball valve

MODEL SIGN:

UHZ-511Z□/-□-□□-□

C: Marine

J: Adding alarm swtich device

Medium gravity

Nominal length H(mm)

X: Output signal

XB:(Exia Ⅱ CT6)Output signal and explosion proof(Exia Ⅱ CT6)

Magnetic level indicating

Side mounting normal temperature

Marine Magnetic Float Type Level Gauge
