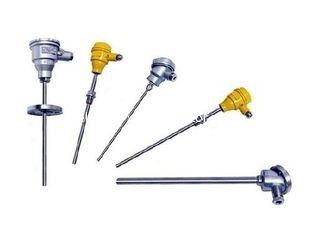

OEM Single / Double NiCr-NiSi Assembly K Type Thermocouple WRR2-120

Large Image : OEM Single / Double NiCr-NiSi Assembly K Type Thermocouple WRR2-120

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	WRR2-120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden box packing
Delivery Time:	15 days after signing the contract
Payment Terms:	T/T
Supply Ability:	1000sets

Contact Now

Detailed Product Description

Highlight:

s type thermocouples

high temperature thermocouple

OEM Single / Double NiCr-NiSi Assembly K Type Thermocouple WRR2-120

assembly-type thermocouple

As the sensor of the temperature measurement, assembly-type thermocouple is used with displays, recorders and electrical adjuster completely. It can measure the temperature of liquid, vapor, gas and the surface of solid from 0℃ to 1800℃ directly. According to national regulation, we have manufactured copper- copper nickel, iron-copper nickel etc. type of thermocouple since 1987. They are all in line of IEC international standard graduation.

category	mode	graduation	range	Allowable error(△t℃)
Platinum 30%rhodium－Platinum 6%rhodium	WRR	B	0-1800	±1.5℃ or ±0.0025∣t∣
Platinum 10%rhodium－platinum	WRP	S	0-1600	±1.5℃ or ±0.0025∣t∣
chromel－nisiloy	WRN	K	0-1300	±2.5℃ or ±0.0075∣t∣
chromel－copper nickel	WRE	E	0-800	±2.5℃ or ±0.0075∣t∣

Unfixed (ceramic protection casing) thermocouple

Thermocouple type	model	graduation	Temp range oC	Specs		Response time T_0.5S
				Dia mm	Protection casing matertial
Single PtRh₃₀-PtRh₆	WRR-120	B	0~1600	Φ16	corundum	<150
	WRR-121			Φ25		<360
Double PtRh₃₀-PtRh₆	WRR₂-120			Φ16		<150
	WRR₂-121			Φ25		<360
Single PtRh₁₀-Pt	WRP-120	S	0~1300	Φ16	High alumium	<150
	WRP-121			Φ25		<360
Double PtRh₁₀-Pt	WRP₂-120			Φ16		<150
	WRP₂-121			Φ25		<360
Single NiCr-NiSi	WRN-122	K	0~1100	Φ16	High alumium	<240
	WRN-123		0~1200	Φ20
doubleNiCr-NiSi	WRN₂-123		0~1100
Single PtRh₃₀-PtRh₆	WRR-130	B	0~1600	Φ16	corundum	<150
	WRR-131			Φ25		<360
Double PtRh₃₀-PtRh₆	WRR₂-130			Φ16		<150
	WRR₂-131			Φ25		<360
Single PtRh₁₀-Pt	WRP-130	S^﹡	0~1300	Φ16	High alumium	<150
	WRP-131			Φ25		<360
Double PtRh₁₀-Pt	WRP₂-130			Φ16		<150
	WRP₂-131			Φ25		<360
Single NiCr-NiSi	WRN-133	K	0~1200	Φ30	High alumium	<240
double NiCr-NiSi	WRN₂-133		0~1100

Note: 1) Non-placement part of structural characteristics is carbon steel -20.

2) Diameter φ25mm to double porcelain bushing.

Protection tube’s diameter and length specifications table.

016(single layer)		020		025(double -layer)
total length L	Placed-depth l	total length L	placed-depth l	total length L	placed-depth l
300	150	400	250	550	400
350	200	450	300	650	500
400	250	550	400	900	750
450	300	650	500	1150	1000
550	400	900	750	1650	1500
650	500	1150	1000	2150	2000
900	750	1650	1500
1150	1000	2150	2000
