Industrial Assembly Type Thermocouple High Alumium Corundum WRR-130

Large Image : Industrial Assembly Type Thermocouple High Alumium Corundum WRR-130

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	WRR-130

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden box packing
Delivery Time:	15 days after signing the contract
Payment Terms:	T/T
Supply Ability:	1000sets

Contact Now

Detailed Product Description

Highlight:

s type thermocouples

high temperature thermocouple

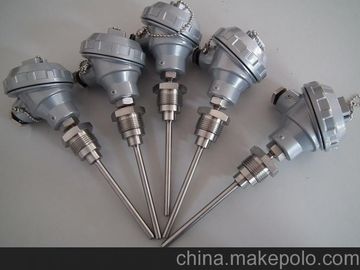

Industrial Assembly Type Thermocouple High Alumium Corundum WRR-130

assembly-type thermocouple

The industrial assembly-type thermocouple is used as a sensor of measuring temperature, always being used with display instruments, recording meter and electronic regulator. It can be directly measured the surface temperature from 0 ^oC to 1800 ^oC within liquid, vapor, gas medium and solid which from various production processes.

Since 1987, according to the national regulations, our factory have being producing thermocouple made from Pt-Rh /30%, Pt-Rh /6%, Pt-Rh /10%,Ni-Pt, Ni-Si, Ni-Cr, Cu-Ni, Fe-Cu-Ni etc under the IEC international standard index numbers, and also comply with JB/T9238-1 999 standard.

Thermocouple type	model	graduation	Temp range oC	Specs		Response time T_0.5S
				Dia mm	Protection casing matertial
Single PtRh₃₀-PtRh₆	WRR-120	B	0~1600	Φ16	corundum	<150
	WRR-121			Φ25		<360
Double PtRh₃₀-PtRh₆	WRR₂-120			Φ16		<150
	WRR₂-121			Φ25		<360
Single PtRh₁₀-Pt	WRP-120	S	0~1300	Φ16	High alumium	<150
	WRP-121			Φ25		<360
Double PtRh₁₀-Pt	WRP₂-120			Φ16		<150
	WRP₂-121			Φ25		<360
Single NiCr-NiSi	WRN-122	K	0~1100	Φ16	High alumium	<240
	WRN-123		0~1200	Φ20
doubleNiCr-NiSi	WRN₂-123		0~1100
Single PtRh₃₀-PtRh₆	WRR-130	B	0~1600	Φ16	corundum	<150
	WRR-131			Φ25		<360
Double PtRh₃₀-PtRh₆	WRR₂-130			Φ16		<150
	WRR₂-131			Φ25		<360
Single PtRh₁₀-Pt	WRP-130	S	0~1300	Φ16	High alumium	<150
	WRP-131			Φ25		<360
Double PtRh₁₀-Pt	WRP₂-130			Φ16		<150
	WRP₂-131			Φ25		<360
Single NiCr-NiSi	WRN-133	K	0~1200	Φ30	High alumium	<240
double NiCr-NiSi	WRN₂-133		0~1100
