TUF-2000P Portable Ultrasonic Flowmeter, High Accuracy Liquid Flow Meter

TUF-2000P Portable Ultrasonic Flowmeter, High Accuracy Liquid Flow Meter

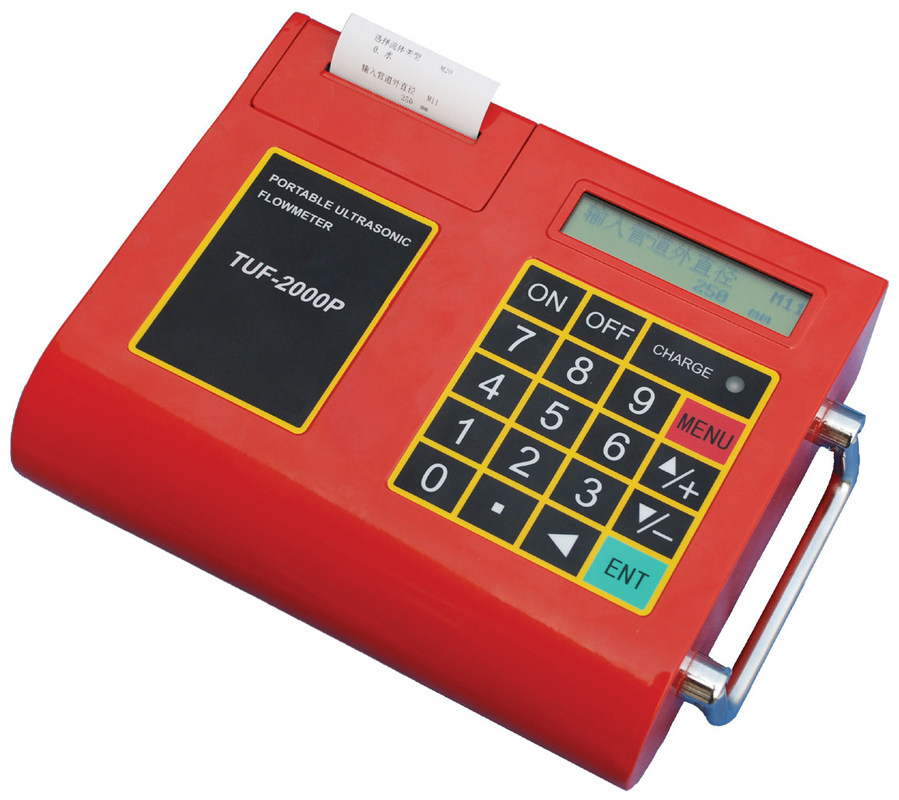

TUF-2000P Portable Ultrasonic Flowmeter

Description:

High accuracy
Measuring Linearity: better than 0.5%, Repeatability: better than 0.2%

Accuracy: better than ± 1%
Non-intrusive measuring
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Wide measuring range
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
Chinese & English display, easy to operate.
Large capacity
Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation
Built-in mini thermal printer with instant and timing print of over 20 measuring data
Built-in data logger Uplink over 20 measuring data to computer or internet



Applications:

Liquid types
Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave.

Specifications:

Transducer options
TS-1: small size transducer (magnetic) for pipe size:
DN15-100mm, liquid temperature ≤ 110 °C
TM-1:medium size transducer (magnetic) for pipe
size:DN50-1000mm, liquid temperature ≤ 110 °C
TL-1: Large size transducer (magnetic) for pipe size:
DN300-6000mm, liquid temperature ≤ 110 °C

Flow velocity range 0- ± 30m/s
Accuracy Better than ± 1%
Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V
Weight Net weight: 2.5kg (main unit)


Standard Package:

Main unit
2 line x 20 character LCD with backlight
Working temperature: -20--60 °C
Mini thermal printer with 24 line character output
4 x 4 + 2 pushbutton keypad
RS-232 interface for networking
