Product Details:
Payment & Shipping Terms:
|
| Product Name: | UV Sterilizer | Flow Rate: | 20,000 LPH |
|---|---|---|---|
| Inlet And Outlet Diameter: | 21/2 Inch | Power: | 240W |
| Service Life Of The UV: | More Than 9000 Hours | Power Supply: | 380V/220V/110V 50Hz/60Hz |
| Connection Mode: | Flange | Working Pressure: | 0.6Mpa |
| High Light: | ultraviolet water sterilizer,water uv sterilizer |
||

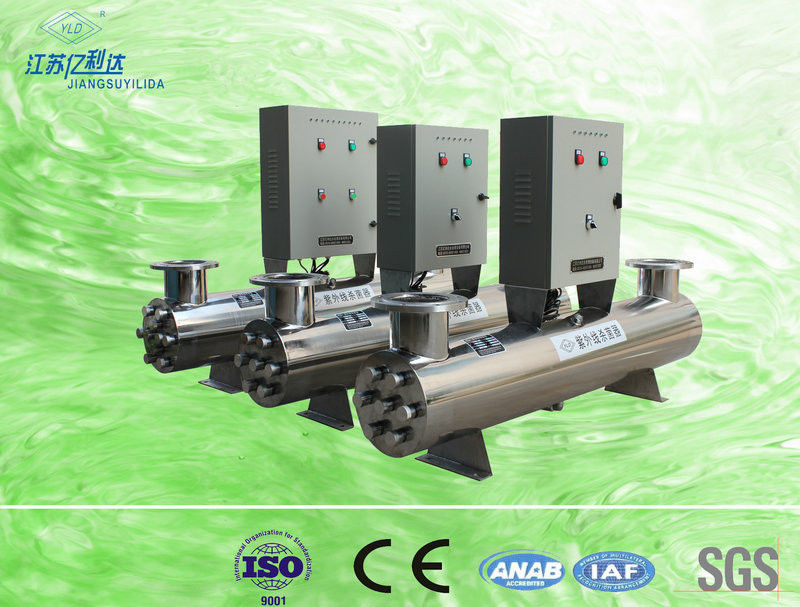

High Efficiency Sterilization UV Water Disinfection System For Pure Water
High Efficiency Sterilization 240W Power 10000 Hours Service Life UV Water Disinfection System For Pure Water
Working principle:
The device adopts a special high strength non ozone ultraviolet sterilizing lamp and stainless steel barrel body odor whose inner wall specially treated by micro carbon martensite, outer side of the barrel body with a special polishing processing, then the pretreated water flows in the tube, it will receive enough line volume of ultraviolet irradiation 253.7nm, which shows excellent germicidal efficacy, but also effectively reduces the influence on ultra pure water.
Optimal service condition:
As UV is a short- wavelength light wave, it has low radiant energy and weak penetrating power and can only kill the microorganisms it directly radiates on. Therefore, in order to enhance the bacteria-killing efficiency and ensure the security of drinking water, the incoming water into the sterilizer must meet the following standard, (and if exceeding the following standard, the killing efficiency may be affected).
|
Total iron content |
Less than 0.3ppm(0.3mg/L) |
|
H2S |
Less than 0.05ppm(0.05mg/L) |
|
Total suspended matter |
Less than 10 mg/L |
|
Manganese content |
Less than 0.05 mg/L |
|
Water hardness |
Less than 120 mg/L |
|
Chroma |
Less than 15centigrade |
|
Water Temp. |
5-60Centigrade |
|
PH value |
6.5-8 |
|
Interface type |
flange or thread |
Product features:
1. SS304 or SS316 stainless steel reactor.
2. Quartz sleeve to ensure the best working temperature.
3. Comprehensive sterilization, efficient and fast, sterilization rate is up to 99.9%.
4. High output, physical sterilization, without negative effects, without secondary pollution.
5. Full stainless steel shell, adopts European technology, smooth inner wall, without blind zone.
6. Equipment is cleaning and polishing, applicable to high purifying environment.
7. The electrical device is configured to apply in the market around the world.
8. Has special design, and operates very conveniently.
FAQ:
01. What is the source of raw water to be treated?
-- is it underground water or well water? or river water ,other source?
02. What is the capacity(m3/hour) you required for this sterilizer?
-- most IMPORTANT requirement.
03. What will the treated water be used for?
--for human drinking or industry purpose?
04. What is the power supply in your country?
220V/60Hz or other?
