Product Details:
Payment & Shipping Terms:
|
| Product Name: | UV Sterilizer | Flow Rate: | 8,000 LPH |
|---|---|---|---|
| Inlet And Outlet Diameter: | DN 40mm | Power: | 120W |
| Service Life Of The UV: | More Than 9000 Hours | Power Supply: | 380V/220V/110V 50Hz/60Hz |
| Connection Mode: | Flange | Working Pressure: | 0.6Mpa |
| High Light: | ultraviolet water sterilizer,water uv sterilizer |
||

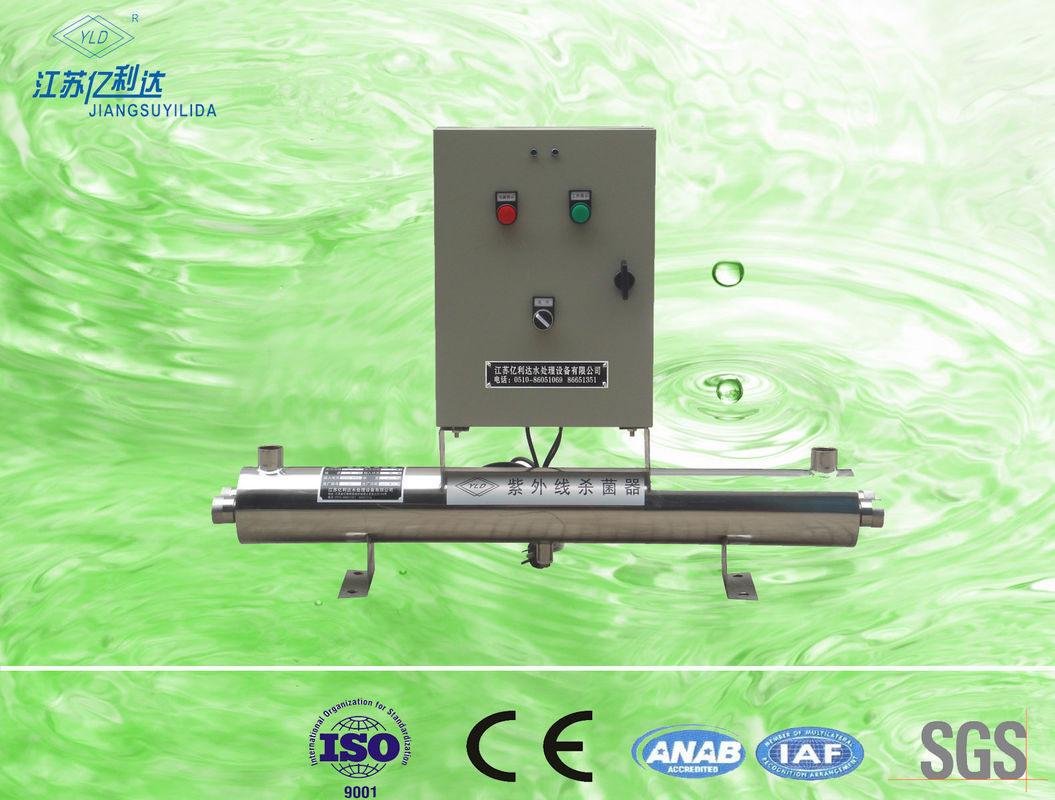

120W 8000 LPH UV Intensity Sensor UV Food Sterilizer Water Disinfection Equipment
|
Total iron content |
Less than 0.3ppm(0.3mg/L) |
|
H2S |
Less than 0.05ppm(0.05mg/L) |
|
Total suspended matter |
Less than 10 mg/L |
|
Manganese content |
Less than 0.05 mg/L |
|
Water hardness |
Less than 120 mg/L |
|
Chroma |
Less than 15centigrade |
|
Water Temp. |
5-60Centigrade |
|
PH value |
6.5-8 |
|
Interface type |
flange or thread |
|
Flow rate |
0.3--1000 ton/hour |
FAQ:
01. What is the source of raw water to be treated?
-- is it underground water or well water? or river water ,other source?
02. What is the capacity(m3/hour) you required for this sterilizer?
-- most IMPORTANT requirement.
03. What will the treated water be used for?
--for human drinking or industry purpose?
04. What is the power supply in your country?
220V/60Hz or other?
Specifications:
|
Model |
Amount of disinfectant |
Power (W) |
Incoming and outcoming water pipes (Nominal/ British system) |
System pressure resistance (Kg/cm²) |
UV light fault Alarm |
Dimension of the reactor (cm) L×W×H |
Dimension of the control cabinet (cm) |
Anchor screws |
Transport weight(Kg) |
|
YLCn-005 |
0.3 |
16 |
1/2″ |
6 |
Has |
30×6×11 |
|
|
5 |
|
YLCn-008 |
1 |
25 |
1/2″ |
6 |
Has |
47×6.3×11 |
|
|
10 |
|
YLCn-050 |
2 |
40 |
1″ |
6 |
Has |
100×9×20 |
Φ8.9×25 (d×L) |
69×4×Φ1 |
25 |
|
YLCn-150 |
6 |
80 |
1+1/4″ |
6 |
Has |
100×11×23 |
69×4×Φ1 |
30 |
|
|
YLCn-200 |
8 |
120 |
1+1/2″ |
6 |
Has |
100×15.9×30 |
Φ8.9×45 (d×L) |
69×7×Φ1 |
35 |
|
YLCn-300 |
12 |
160 |
2″ |
6 |
Has |
100×15.9×32 |
69×7×Φ1 |
40 |
|
|
YLC-050 |
2 |
40 |
DN25/1″ |
6 |
Has |
100×8.9×30 |
25×30×12 (W×H×D) |
60×4×Φ1 |
45 |
|
YLC-150 |
6 |
80 |
DN32/11/4″ |
6 |
Has |
100×10.8×30 |
60×4×Φ1 |
50 |
|
|
YLC-200 |
8 |
120 |
DN40/11/2″ |
6 |
Has |
100×15.9×40 |
60×7×Φ1 |
60 |
|
|
YLC-300 |
12 |
160 |
DN50/2″ |
6 |
Has |
100×15.9×40 |
60×7×Φ1 |
70 |
|
|
YLC-360 |
15 |
200 |
DN65/21/2″ |
6 |
Has |
100×15.9×40 |
60×7×Φ1 |
120 |
|
|
YLC-500 |
20 |
240 |
DN65/21/2″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
130 |
|
|
YLC-600 |
25 |
280 |
DN80/3″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
140 |
|
|
YLC-700 |
30 |
320 |
DN100/4″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
150 |
|
|
YLC-1000 |
40 |
360 |
DN100/4″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
160 |
|
|
YLC-1200 |
50 |
400 |
DN125/5″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
180 |
|
|
YLC-1500 |
60 |
420 |
DN150/6″ |
6 |
Has |
170×27.3×57 |
120×16×Φ1.4 |
210 |
|
|
YLC-2000 |
80 |
560 |
DN150/6″ |
6 |
Has |
170×27.3×57 |
120×16×Φ1.4 |
220 |
|
|
YLC-2500 |
100 |
700 |
DN150/6″ |
6 |
Has |
170×27.3×57 |
60×128×30 (W×H×D) |
120×16×Φ1.4 |
275 |
|
YLC-3000 |
125 |
840 |
DN150/6″ |
6 |
Has |
170×27.3×57 |
120×16×Φ1.4 |
300 |
|
|
YLC-4000 |
150 |
1120 |
DN200/8″ |
6 |
Has |
173×32.5×65 |
120×20×Φ1.6 |
325 |
|
|
YLC-5000 |
200 |
1400 |
DN200/8″ |
6 |
Has |
173×37.7×72 |
120×22×Φ1.6 |
350 |
|
|
YLC-7000 |
300 |
2100 |
DN250/10″ |
6 |
Has |
175×42.6×80 |
120×24×Φ2.0 |
400 |
|
|
YLC-10K |
400 |
2520 |
DN250/10″ |
6 |
Has |
176×52.9×95 |
60×150×40 (W×H×D) |
120×22×Φ2.2 |
475 |
|
YLC-15K |
600 |
3080 |
DN300/12″ |
6 |
Has |
176×78×110 |
120×32×Φ2.4 |
600 |
|
|
YLC-20K |
800 |
3920 |
DN350/14″ |
6 |
Has |
Designated |
Designated |
Designated |
Designated |
|
YLC-25K |
1000 |
4760 |
DN350/14″ |
6 |
Has |
Designated |
Designated |
Designated |
Designated |
Notes:
1. Device Power: 220V/ 50HZ, service life of the UV light tube is ≥9000 hours.
2. This Table for Technical Parameters lists the units which can be used for disinfection of such pure water as: tap water, purified water, water for
aquaculture and livestock and poultry husbandry, water for food processing, supply of water of different qualities and water for medical
purposes, etc.
3. The sterilization efficiency depends on the transparency, impurities and temperature of the water and the sterilization efficiency is 99% or
designed for special purposes.
4. YLCn refers to the thread filling while YLC refers to the joint of flange adapter.
5.Various of. advanced online monitoring instrument and meters as well as remote monitoring system can be allocated for the specific demand
of users, for example: UV lamp monitoring system, UV intensity monitoring systems, water temperature detection system and disinfection time
accumulating system, etc.
uv Strength Detector:
UV Intensity Sensor:
