Product Details:
Payment & Shipping Terms:
|
| Product Name: | UV Sterilizer | Flow Rate: | 60,000 LPH |
|---|---|---|---|
| Inlet And Outlet Diameter: | DN 150mm | Power: | 420W |
| Service Life Of The UV: | More Than 9000 Hours | Power Supply: | 380V/220V/110V 50Hz/60Hz |
| Connection Mode: | Flange | Working Pressure: | 0.6Mpa |
| High Light: | ultraviolet water sterilizer,uv lamp sterilizer |
||

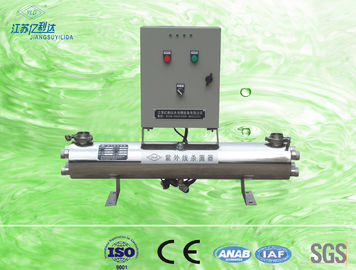

60,000 LPH Flow Rate UV Water Purifier For Hospitals Disinfection
FAQ:
01. What is the source of raw water to be treated?
-- is it underground water or well water? or river water ,other source?
02. What is the capacity(m3/hour) you required for this sterilizer?
-- most IMPORTANT requirement.
03. What will the treated water be used for?
--for human drinking or industry purpose?
04. What is the power supply in your country?
220V/60Hz or other?
Specifications:
|
Model |
Amount of disinfectant |
Power (W) |
Incoming and outcoming water pipes (Nominal/ British system) |
System pressure resistance (Kg/cm²) |
UV light fault Alarm |
Dimension of the reactor (cm) L×W×H |
Dimension of the control cabinet (cm) |
Anchor screws |
Transport weight(Kg) |
|
YLCn-005 |
0.3 |
16 |
1/2″ |
6 |
Has |
30×6×11 |
|
|
5 |
|
YLCn-008 |
1 |
25 |
1/2″ |
6 |
Has |
47×6.3×11 |
|
|
10 |
|
YLCn-050 |
2 |
40 |
1″ |
6 |
Has |
100×9×20 |
Φ8.9×25 (d×L) |
69×4×Φ1 |
25 |
|
YLCn-150 |
6 |
80 |
1+1/4″ |
6 |
Has |
100×11×23 |
69×4×Φ1 |
30 |
|
|
YLCn-200 |
8 |
120 |
1+1/2″ |
6 |
Has |
100×15.9×30 |
Φ8.9×45 (d×L) |
69×7×Φ1 |
35 |
|
YLCn-300 |
12 |
160 |
2″ |
6 |
Has |
100×15.9×32 |
69×7×Φ1 |
40 |
|
|
YLC-050 |
2 |
40 |
DN25/1″ |
6 |
Has |
100×8.9×30 |
25×30×12 (W×H×D) |
60×4×Φ1 |
45 |
|
YLC-150 |
6 |
80 |
DN32/11/4″ |
6 |
Has |
100×10.8×30 |
60×4×Φ1 |
50 |
|
|
YLC-200 |
8 |
120 |
DN40/11/2″ |
6 |
Has |
100×15.9×40 |
60×7×Φ1 |
60 |
|
|
YLC-300 |
12 |
160 |
DN50/2″ |
6 |
Has |
100×15.9×40 |
60×7×Φ1 |
70 |
|
|
YLC-360 |
15 |
200 |
DN65/21/2″ |
6 |
Has |
100×15.9×40 |
60×7×Φ1 |
120 |
|
|
YLC-500 |
20 |
240 |
DN65/21/2″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
130 |
|
|
YLC-600 |
25 |
280 |
DN80/3″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
140 |
|
|
YLC-700 |
30 |
320 |
DN100/4″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
150 |
|
|
YLC-1000 |
40 |
360 |
DN100/4″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
160 |
|
|
YLC-1200 |
50 |
400 |
DN125/5″ |
6 |
Has |
100×21.9×50 |
60×11×Φ1.2 |
180 |
|
|
YLC-1500 |
60 |
420 |
DN150/6″ |
6 |
Has |
170×27.3×57 |
120×16×Φ1.4 |
210 |
|
|
YLC-2000 |
80 |
560 |
DN150/6″ |
6 |
Has |
170×27.3×57 |
120×16×Φ1.4 |
220 |
|
|
YLC-2500 |
100 |
700 |
DN150/6″ |
6 |
Has |
170×27.3×57 |
60×128×30 (W×H×D) |
120×16×Φ1.4 |
275 |
|
YLC-3000 |
125 |
840 |
DN150/6″ |
6 |
Has |
170×27.3×57 |
120×16×Φ1.4 |
300 |
|
|
YLC-4000 |
150 |
1120 |
DN200/8″ |
6 |
Has |
173×32.5×65 |
120×20×Φ1.6 |
325 |
|
|
YLC-5000 |
200 |
1400 |
DN200/8″ |
6 |
Has |
173×37.7×72 |
120×22×Φ1.6 |
350 |
|
|
YLC-7000 |
300 |
2100 |
DN250/10″ |
6 |
Has |
175×42.6×80 |
120×24×Φ2.0 |
400 |
|
|
YLC-10K |
400 |
2520 |
DN250/10″ |
6 |
Has |
176×52.9×95 |
60×150×40 (W×H×D) |
120×22×Φ2.2 |
475 |
|
YLC-15K |
600 |
3080 |
DN300/12″ |
6 |
Has |
176×78×110 |
120×32×Φ2.4 |
600 |
|
|
YLC-20K |
800 |
3920 |
DN350/14″ |
6 |
Has |
Designated |
Designated |
Designated |
Designated |
|
YLC-25K |
1000 |
4760 |
DN350/14″ |
6 |
Has |
Designated |
Designated |
Designated |
Designated |
Notes:
1. Device Power: 220V/ 50HZ, service life of the UV light tube is ≥9000 hours.
2. This Table for Technical Parameters lists the units which can be used for disinfection of such pure water as: tap water, purified water, water for
aquaculture and livestock and poultry husbandry, water for food processing, supply of water of different qualities and water for medical
purposes, etc.
3. The sterilization efficiency depends on the transparency, impurities and temperature of the water and the sterilization efficiency is 99% or
designed for special purposes.
4. YLCn refers to the thread filling while YLC refers to the joint of flange adapter.
5.Various of. advanced online monitoring instrument and meters as well as remote monitoring system can be allocated for the specific demand
of users, for example: UV lamp monitoring system, UV intensity monitoring systems, water temperature detection system and disinfection time
accumulating system, etc.
Process flow
When preparing the pure water or high-purity water, predesalination is often conducted with the reverse osmosis units and the ion exchange process is taken for deep desalination. The ultrafiltration device is adopted to further remove the colloids, microorganisms, bacteria and mechanical particles in the water. The main process flow for preparing the pure water or high-purity water with the ultrafiltration units consists of:
Raw water Pre-Processing RO Ion exchange Ultraviolet sterilizer Ion exchange UltrafiItration User
