80000 LPH Stainless Steel Backwash Industrial Water Filters For Rainwater

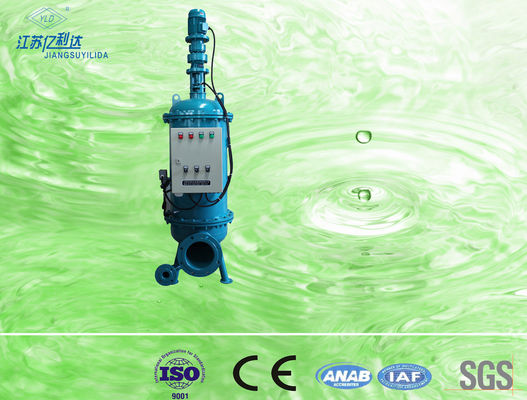

Large Image : 80000 LPH Stainless Steel Backwash Industrial Water Filters For Rainwater

Product Details:

Place of Origin:	China
Brand Name:	YLD
Certification:	CE/ SGS
Model Number:	YLF-80

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	With plywood case for outer packing
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T or western Union or L/C
Supply Ability:	500 units per month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Cartridge Water Filter	Application:	Rain Water
Inlet & Outlet Diameter:	3 Inch	Flow Rate:	80 M3/Hr
Material:	SUS 304/316/316L Carbon Steel	Connection Mode:	Flange
Working Temperature:	0~250 ℃	Filtration Degree:	50~3500 Micron
Working Pressure:	0.6Mpa	Drain Diameter:	DN 25mm
Highlight:	industrial water filtration systems , stainless steel water filter

80,000 LPH Automatic Backwash Stainless Steel Cartridge Water Filter Housing For Rainwater

Design feature of the multi—core self—cleaning filter

1. The filter takes the internal mechanical structure of self-cleaning to realize the backwashing function in the true sense. It could clean the impurity on the strainer thoroughly. There is no dead angle for washing and no flux attenuation so that the filtering efficiency and the service life are assured.

2. The filter takes the wedge strainer of 304, 316L stainless steel with high strength, precision and corrosion resistance. The filtering precision is 251im.

3. The filter with few wearing parts, no consumable, low maintenance cost. The operation and management are simple.

4. The control system of the filter is with sensitive response and precise operation. The backwashing pressure difference and the time could be adjusted flexibly according to the different water source and filtering precision.

Specifications:

Model	Flow (T/h)	Inlet and outlet diameter (mm)	Drainage diameter (mm)	D (mm)	H (mm)	H1 (mm)	H2 (mm)
YLF-50	70	DN50	DN50	300	1690	265	640
YLF-80	80	DN80	DN50	350	1720	265	660
YLF-100	120	DN100	DN50	400	1760	265	680
YLF-200	200	DN200	DN80	500	1860	290	715
YLF-250	280	DN250	DN80	600	1930	290	755
YLF-300	450	DN300	DN100	700	2040	335	755
YLF-350	600	DN350	DN100	800	2105	335	770
YLF-400	800	DN400	DN100	1000	2220	335	800
YLF-500	1000	DN500	DN100	1200	2360	365	825
