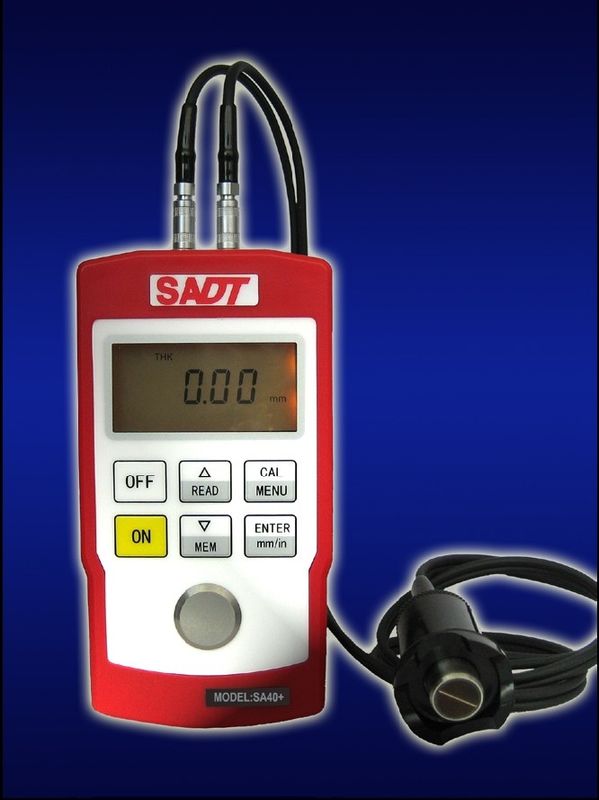

SA40+ Ultrasonic Thickness Gauge Thickness for coating - 1.2mm Coating mode

Name: SA40+ Ultrasonic Thickness Gauge Thickness for coating - 1.2mm Coating mode
Brand: SADT
SKU: SA40+
Price: 200 USD
Availability: InStock
Rating: 5 (189 reviews)

Large Image : SA40+ Ultrasonic Thickness Gauge Thickness for coating - 1.2mm Coating mode

Product Details:

Place of Origin:	Beijing
Brand Name:	SADT
Certification:	ＣＥ　ＩＳＯ９００１
Model Number:	SA40+

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD200-500/PCS
Packaging Details:	Standard package
Delivery Time:	Within one week after receipt of advanced payment
Payment Terms:	T/T in advance, Western Union
Supply Ability:	50pcs/week

Contact Now

Detailed Product Description

Memory:	400	Accuracy:	0.01
Key Words:	Thickness Gage	Measuring Range:	0.70~300.0mm In Steel With PT-5 Probe (Normal Mode) 3.00~40.00mm In Steel Thickness For Coating: <1.2mm (MEC Mode)
Resolution:	0.01mm@0.70~99.99mm, 0.1mm@100.0~300.0mm	Velocity:	1000~9999m/s
Working Environment:	0~40oC, 20~90%RH	Certification:	CE/SGS/ISO9001
High Light:	portable ultrasonic thickness gauge , digital ultrasonic thickness gauge

Micro-processor SA40+ Ultrasonic Thickness Gauge 0.8.00mm ~ 300.0mm 4 Digits LCD Thickness for coating: < 1.2mm (Coating mode)

SA40+ thickness meter is controlled by micro-processor based on the ultrasonic measuring principle. It is able

to measure the thickness and acoustic speed of various materials transmitted ultrasonic. It is designed to measure

the thickness of normal metal materials and metal materials covered with coating.
Display: 4 digits LCD
Backlight: Yes
Measuring range: 0.8.00~300.0mm in steel with standard probe (Normal mode)
3.00~20.00mm in steel
Thickness for coating: < 1.2mm (Coating mode)
Resolution: 0.8.00~9.99mm ±0.05 0.00~99.99mm ±(0.5% H+0.01) 100.0~300.0 ±(1% H+0.1)
Unit: mm/inch
Velocity: 1000~9999m/s
Coupling indicator: Yes
Calibration: Auto
Memory: 40 data
Low battery indicator: Yes
Working environment: 0~40oC, 20~90%RH
Power off: Auto
Power supply: AA battery x 2
Net weight (g): 245
Dimension (mm): 124x67x30

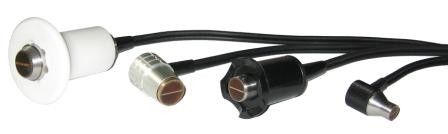

Standard probe: PT-5
Optional probes: XT-5
