Portable Coating Ultrasonic Thickness Gauge High Accuracy with Digital LCD

Large Image : Portable Coating Ultrasonic Thickness Gauge High Accuracy with Digital LCD

Product Details:

Place of Origin:	Beijing
Brand Name:	SADT
Certification:	ＣＥ　ＩＳＯ９００１
Model Number:	QNix4200 / QNix4500

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD300-600/Pcs
Packaging Details:	Standard package
Delivery Time:	Within one week after receipt of advanced payment
Payment Terms:	T/T in advance
Supply Ability:	50pcs/week

Contact Now

Detailed Product Description

Highlight:

Through coating thickness gauge

portable ultrasonic thickness gauge

Portable Coating Ultrasonic Thickness Gauge High Accuracy with Digital LCD

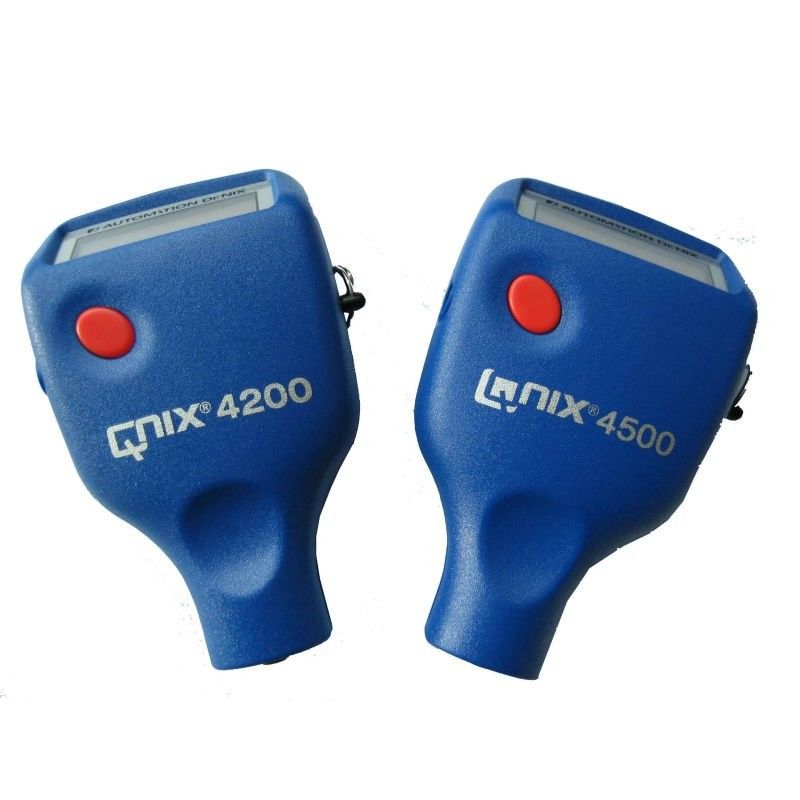

The QuaNix®4200 and QuaNix®4500 have been designed to meet the requirements of automotive and other painting applications.

The QuaNix®4500 measures over all metalls by just switching the mode from ferrous to non-ferrous or reverse. For those of you who only measure over steel or iron we have designed the QuaNix®4200.

Product Features

Execellent accuracy

One button only

Proven Hall Sensor Technology (and

eddy-current for QuaNix®4500)

One hand opperation

for all applications

Integrated sensors

without cable and connectors

Automatic switch on/off

Display in microns or mils

Acoustical signal

confirms measurement

Substrate Steel and iron	Fe-probe (4200/4500)
Non-magnetic Metals,e.g. Aluminium, Copper, Brass	NFe-probe (4500)
Measuring Range	0 – 999 µm
Accuracy	+/- (2 µm + 3 % ) (of reading)
Minimum Measuring Area	10 x 10 mm
Minimum Curvature	5 mm convex 25 mm concave
Minimum Substrate Thickness	Fe: 0,2 mm NFe: 0,05 mm
Temperature Range	0 – 60°C
Display	Digital (LCD)
Probe	One Point (integrated)
Power Supply	2 x 1,5 V Mignon Battery (alkaline)
Dimensions	100 mm x 60 mm x 27 mm
Weight	ca. 110 g
Technical Data subject to changes without priov

Standard package:

SA40 main body

Standard probe PT-5

Coupling paste

Operation manual

Carrying case

Portable Coating Ultrasonic Thickness Gauge High Accuracy with Digital LCD 0
