Portable Ultrasonic Thickness Gauge Coupling Paste , High Temperature SA40+

Portable Ultrasonic Thickness Gauge price SA40+ which can test thickness covered with coating

Introduction

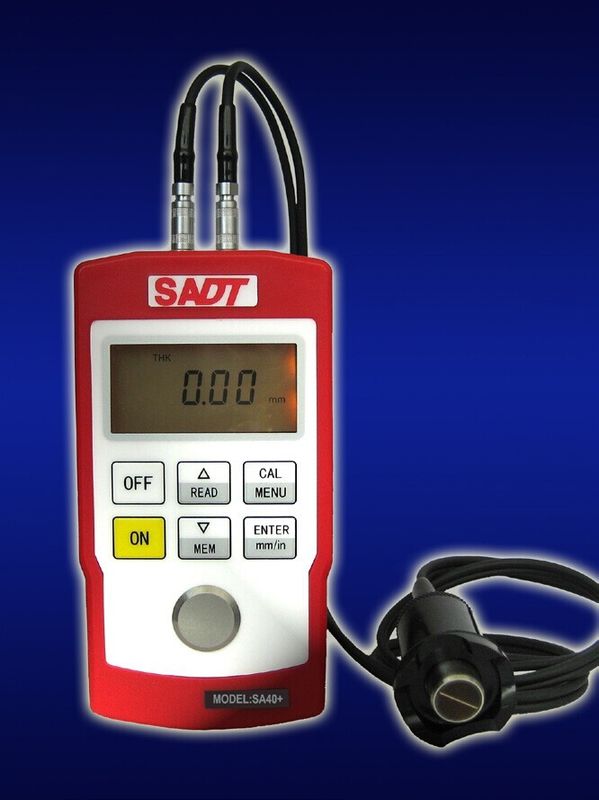

SA40+ is the miniaturized ultrasonic thickness gauges that can measure wall thickness and velocity.

Using new technique of multiple echo(echo-to-echo), SA40+ can measure wall thickness under paint. For a normal ultrasonic thickness gauge, you must remove paint on work piece, but with new SA40+, you can take measurement directly over the paint of work piece and you can get real thickness value of work piece. SA40+ has two measuring modes: normal mode and multiple echo(MEC) mode. By normal mode, SA40+ is a normal ultrasonic thickness gauge; by MEC mode, SA40+ can measure over coatings.

Specifications

1) Technique: pulse echo with dual probe

2) Display: 4 digits LCD with backlight

3) Measuring range: 0.7 to 300.0mm

4) Resolution : 0.01mm 0.8-99.99mm, 0.1mm 100.0-300.0mm

5) Velocity range: 500-9999m/sec.

6) Display circle: 1 sec.

7) Coupling indication

8) Memory: 400 data can be stored and re-readable

9) Units: mm or inch

10) Low battery indicator on LCD

11) Auto shut-off: after 5 min. of non-use

12) Power: 2 ea. 1.5V AA alkaline cells

13) Operating temperature: 0-40°C

14) Operating humidity: 20-90%RH

15) Size: 124x67x30mm

16) Weight: 240g

Specificaiton:

Standard package

SA40+ main unit 1
Standard 5MHz probe PT-5 with
probe holder 1
Built-in calibration block 1
Coupling paste for normal temperature 1
Test certificate 1
Operation manual 1
Carrying case 1

Optional probes for SA40+

XT-5 probe
PT-5 probe with probe holder
